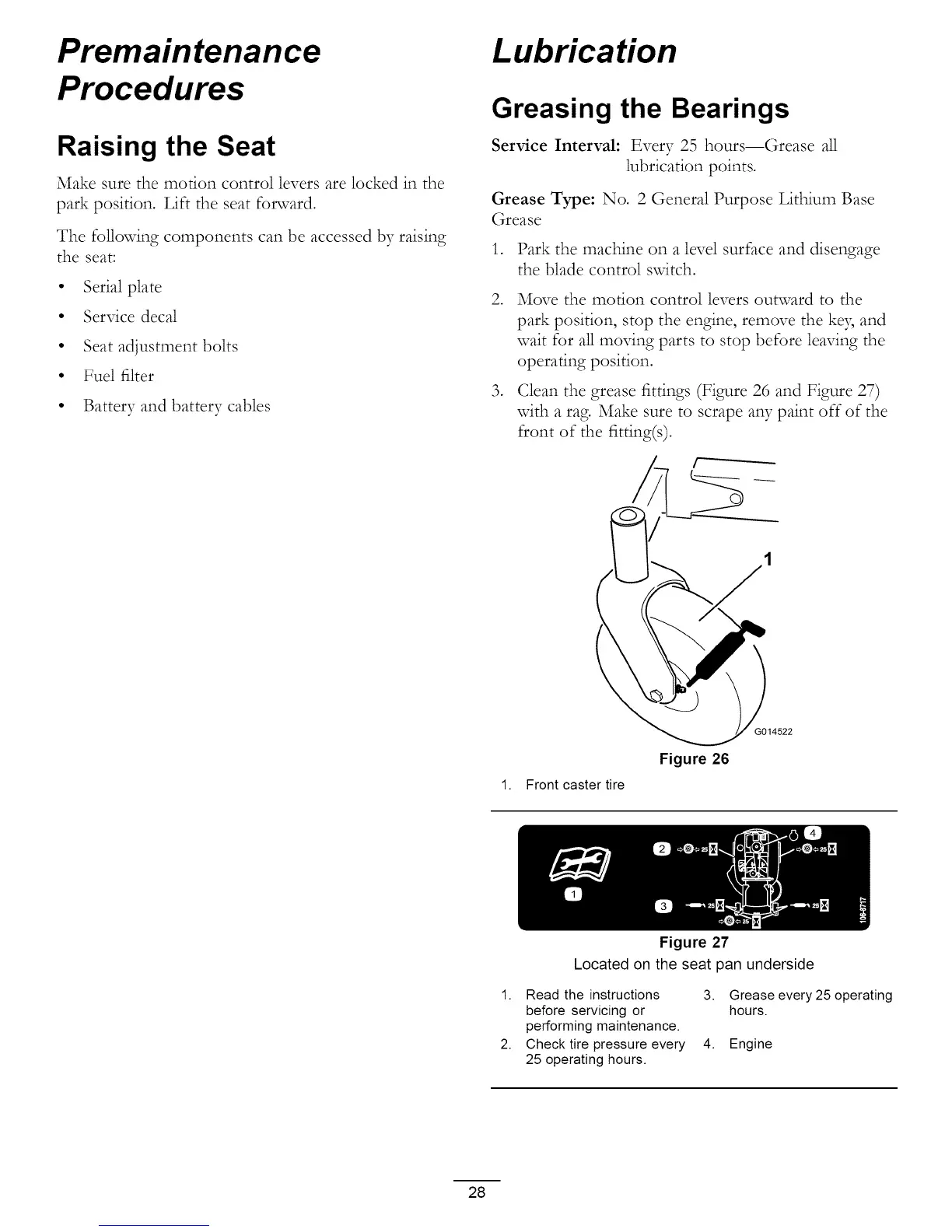

Premaintenance
Procedures
Raising the Seat
Make sure the motion control levers are locked in the
park position Lift the seat forward
The following components can be accessed by raising
the seat:
Serial plate
Service decal
Seat adjustment bolts
Fuel filter
Battery and battery cables
Lubrication
Greasing the Bearings
Service Interval: Every 25 hours--Grease all
lubrication points.
Grease Type: No. 2 General Purpose Lithium Base
Grease
1. Park the machine on a level surface and disengage
the blade control switch.
,
,
Move the motion control levers outward to the
park position, stop the engine, remove the ke3, and
wait for all moving parts to stop before leaving the
operating position.
Clean the grease fittings (Figure 26 and Figure 27)
with a rag. Make sure to scrape any paint off of the
front of the fitting(s).
1. Front caster tire
Figure 26
G014522
Figure 27
Located on the seat pan underside
1. Read the instructions
before servicing or
performing maintenance.
2. Check tire pressure every
25 operating hours.
3. Grease every 25 operating
hours.
4. Engine
28
