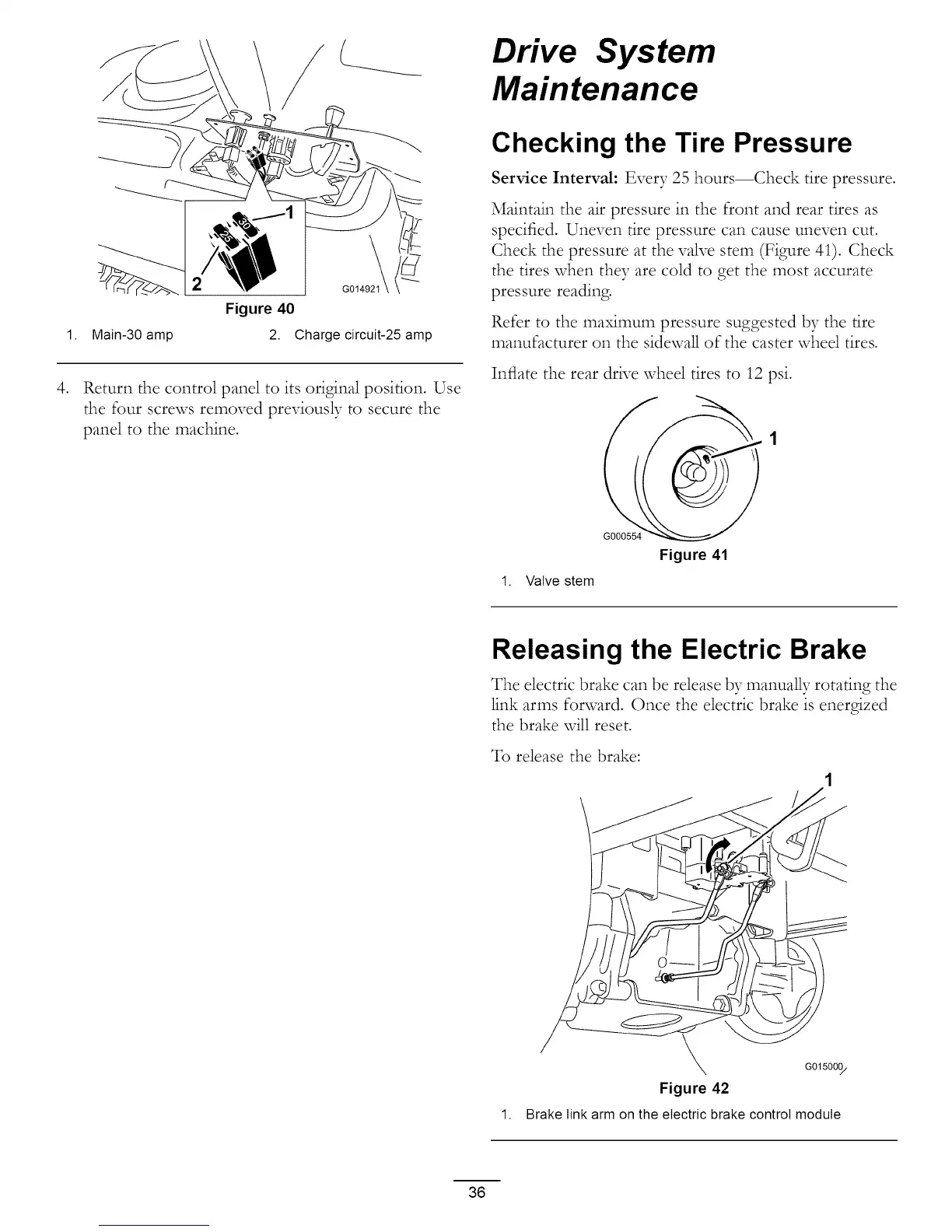

Figure 40
1. Main-30 amp 2. Charge circuit-25 amp
Return the control panel to its original position. Use
the four screws removed previously to secure the
panel to the machine.
Drive System
Maintenance
Checking the Tire Pressure
Service Interval: Every 25 hours--Check tire pressure.
Maintain the air pressure in the front and rear tires as
specified. Uneven tire pressure can cause uneven cut.
Check the pressure at the wllve stem (Figure 41). Check
the tires when they are cold to get the most accurate
pressure reading.
Refer to the maximum pressure suggested by the tire
manufacturer on the sidewall of the caster wheel tires.
Inflate the rear drive wheel tires to 12 psi.
G000554
Figure 41
1. Valve stem
Releasing the Electric Brake
The electric brake can be release by manually rotating the
link arms forward. Once the electric brake is energized
the brake will reset.
To release the brake:
1.
G015000/
Figure 42
Brake link arm on the electric brake control module
36
