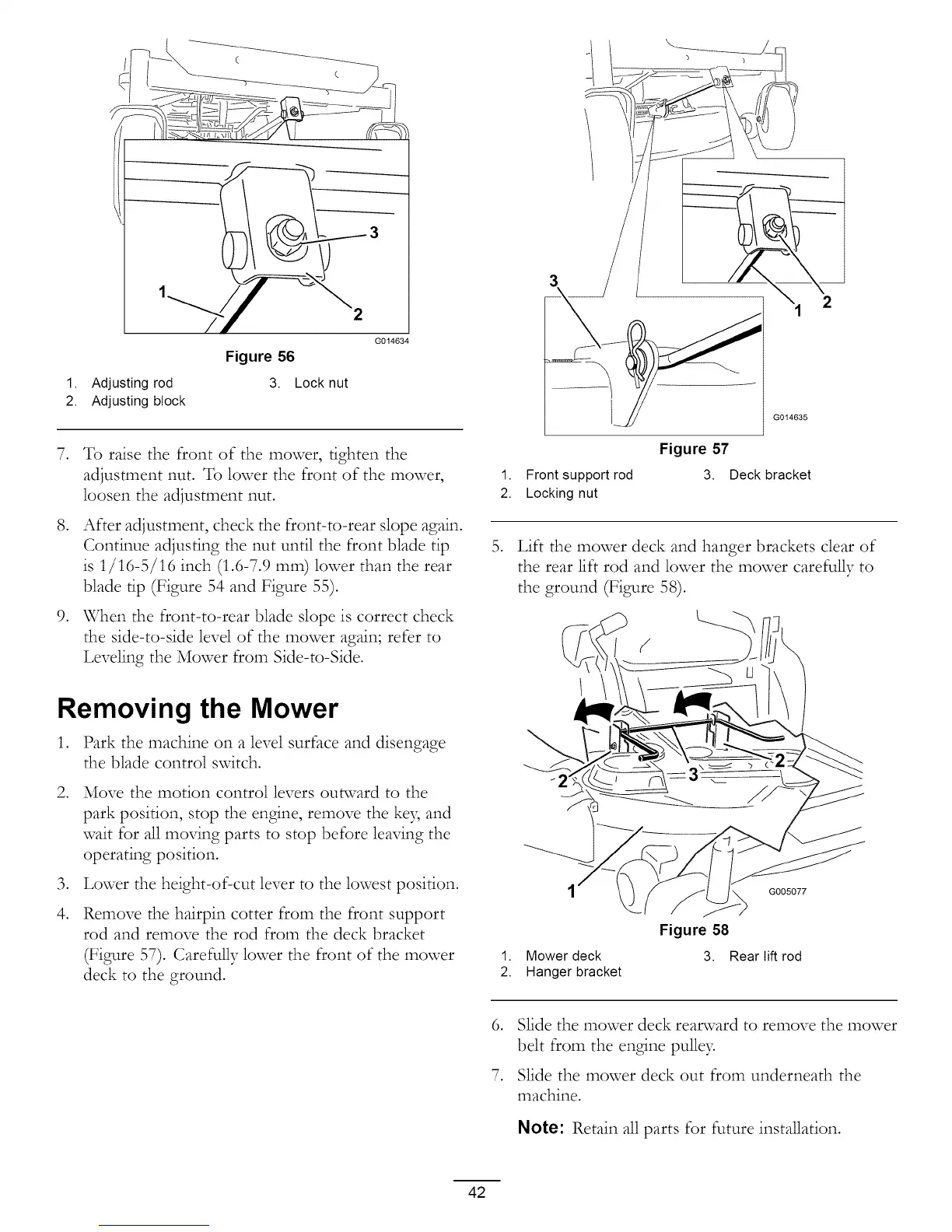

1. Adjusting rod
2. Adjusting block
Figure 56
3. Lock nut
2
G014634
,
,
,
To raise the front of the mower, tighten the
adjustment nut. To lower the front of the mower,
loosen the adjustment nut.
After adjustment, check the front-to-rear slope again.
Continue adjusting the nut until the front blade tip
is 1/16-5/16 inch (1.6-7.9 mm) lower than the rear
blade tip (Figure 54 and Figure 55).
When the front-to-rear blade slope is correct check
the side-to-side level of the mower again; refer to
Leveling the Mower from Side-to-Side.
Removing the Mower
1. Park the machine on a level surface and disengage
the blade control svdtch.
,
,
4.
Move the motion control levers ouhvard to the
park position, stop the engine, remove the ke3, and
wait for all moving parts to stop before leaving the
operating position.
Lower the height-of-cut lever to the lowest position.
Remove the hairpin cotter from the front support
rod and remove the rod from the deck bracket
(Figure 57). Carefu_y lower the front of the mower
deck to the ground.
3
1. Front support rod
2. Locking nut
G014635
Figure 57
3. Deck bracket
Lift the mower deck and hanger brackets clear of
the rear lift rod and lower the mower carefully to
the ground (Figure 58).
1. Mower deck
2. Hanger bracket
G005077
Figure 58
3. Rear lift rod
6. Slide the mower deck rearward to remove the mower
belt from the engine pulle)_
7. Slide the mower deck out from underneath the
machine.
Note: Retain a11parts for future installation.
