ReleasingtheElectricBrake
Youcanmanuallyreleasetheelectricbrakebyrotatingthe
linkarmsforward.Oncetheelectricbrakeisenergized,the
brakeresets.
1.TurntheignitionkeytotheOFFpositionordisconnect
thebattery.
2.Locatetheshaftontheelectricbrakewherethebrake
linkarmsareconnected(Figure49).
3.Rotatetheshaftforwardtoreleasethebrake.

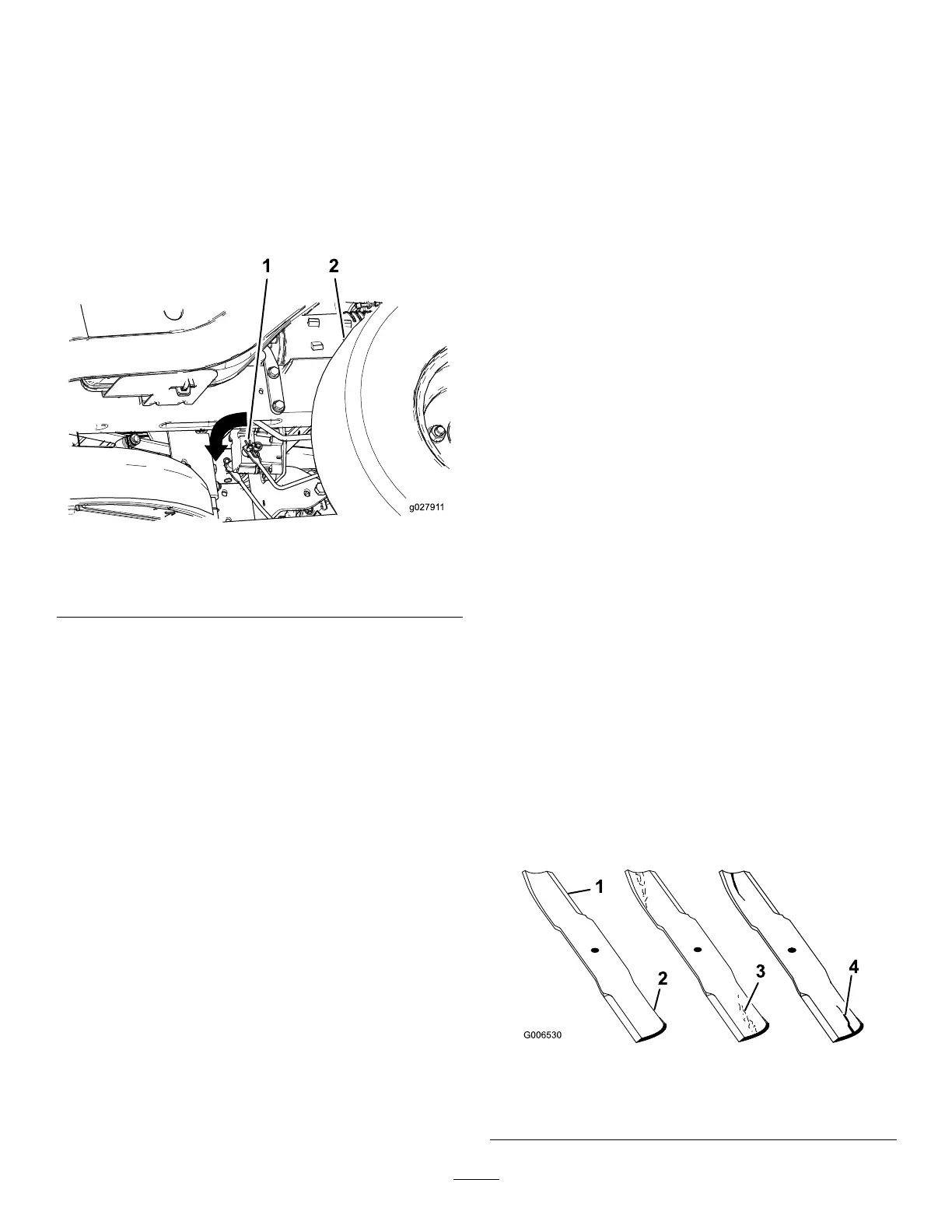

g027911
Figure49
1.Brake-linkarmontheelectricbrakecontrolmodule
2.Left,reartire
MowerMaintenance
ServicingtheCuttingBlades
Toensureasuperiorqualityofcut,keepthebladessharp.For
convenientsharpeningandreplacement,keepextrablades
onhand.
BladeSafety
Awornordamagedbladecanbreak,andapieceoftheblade
couldbethrowntowardyouorbystanders,resultinginserious
personalinjuryordeath.Tryingtorepairadamagedblade
mayresultindiscontinuedsafetycerticationoftheproduct.
•Inspectthebladesperiodicallyforwearordamage.
•Usecarewhencheckingtheblades.Wrapthebladesor
weargloves,andusecautionwhenservicingtheblades.
Onlyreplaceorsharpentheblades;neverstraightenor
weldthem.
•Onmulti-bladedmachines,takecareasrotating1blade
cancauseotherbladestorotate.
BeforeInspectingorServicingthe
Blades
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andmovethe
motion-controlleversoutwardtothePARKposition.
2.Shutofftheengine,removethekey,anddisconnectthe
spark-plugwiresfromthesparkplugs.
InspectingtheBlades
ServiceInterval:Beforeeachuseordaily
1.Inspectthecuttingedges(Figure50).
2.Iftheedgesarenotsharporhavenicks,removeand
sharpentheblade;refertoSharpeningtheBlades(page
43).
3.Inspecttheblades,especiallyinthecurvedarea.
4.Ifyounoticeanycracks,wear,oraslotforminginthis
area,immediatelyinstallanewblade(Figure50).
g006530
Figure50
1.Cuttingedge3.Wear/slotforming
2.Curvedarea4.Crack
