Toro TimeCutter SS 5425 - Technical Schematics; Electrical System Diagram

56 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Schematics

g028022

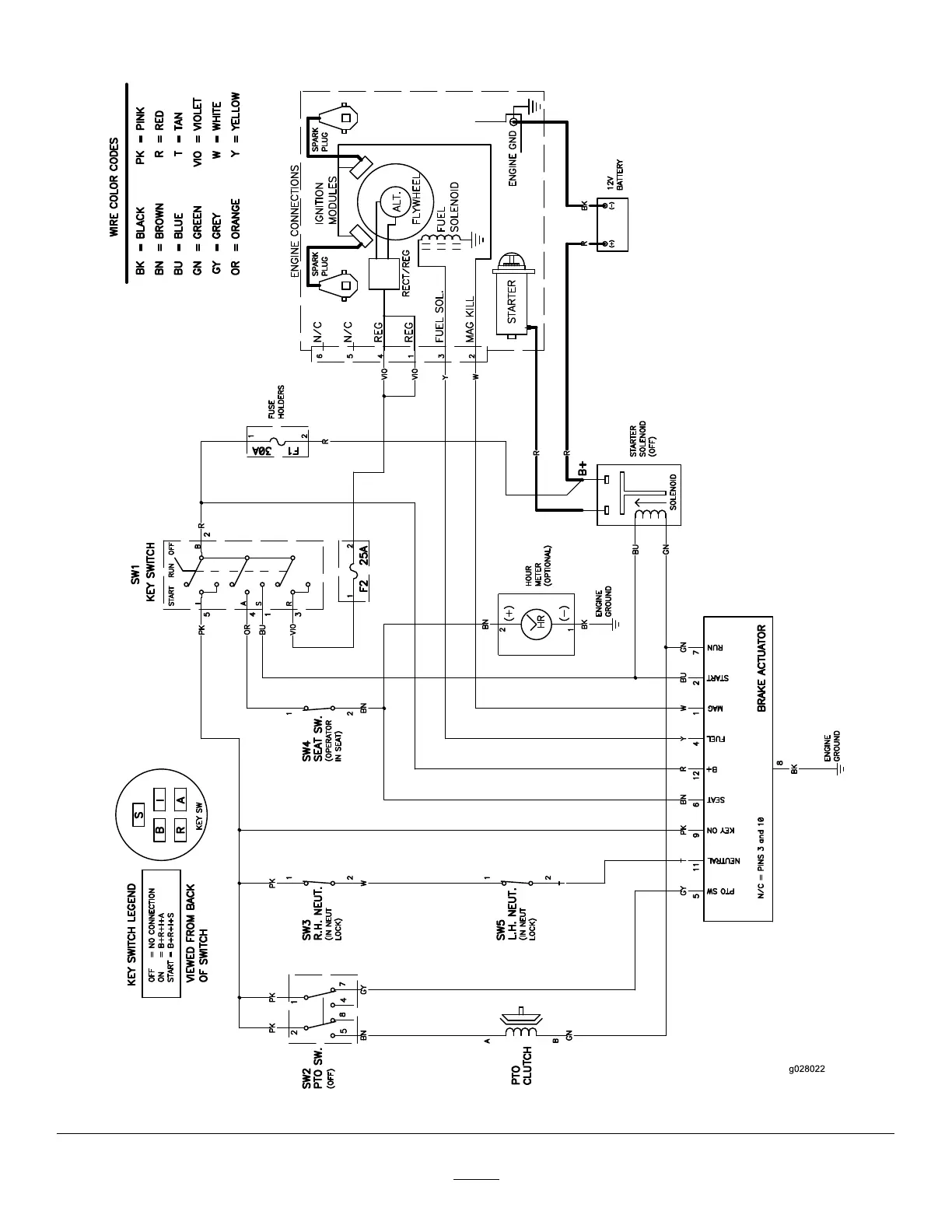

ElectricalDiagram(Rev.A)

55

Table of Contents
