CHASSIS
TimeCutter™ Z Service Manual 6 - 17
6

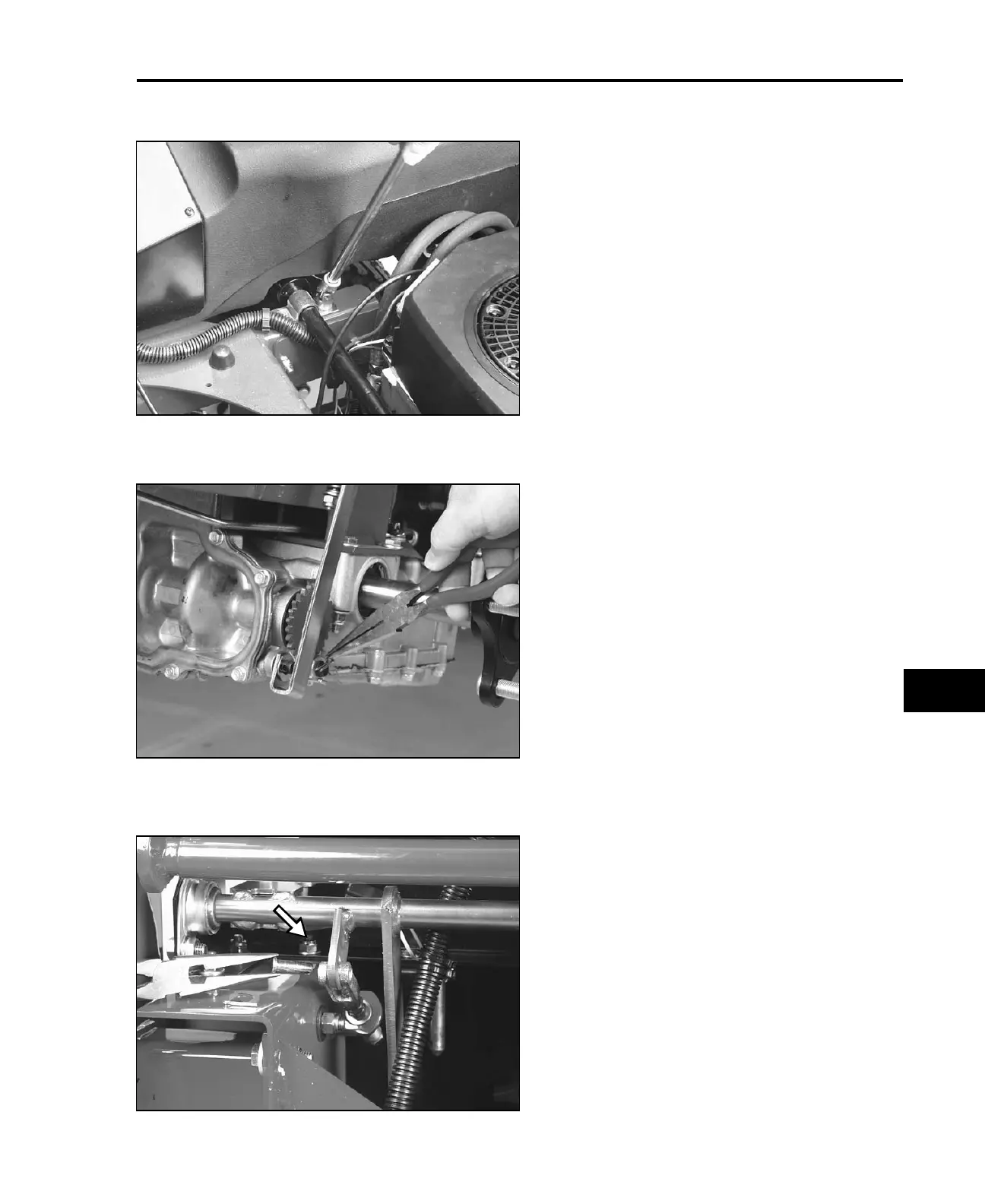

Make sure that the wiring harness is routed
below the brake shaft and the throttle cable
above. Then secure the brake shaft with the two
clamps.
Install the brake links to the brake arms with a
washer and cotter pin.
Install the adjustment yokes to the brake shaft
levers with clevis pins and hairpins.
0702-0617
0702-0509
0702-0615
