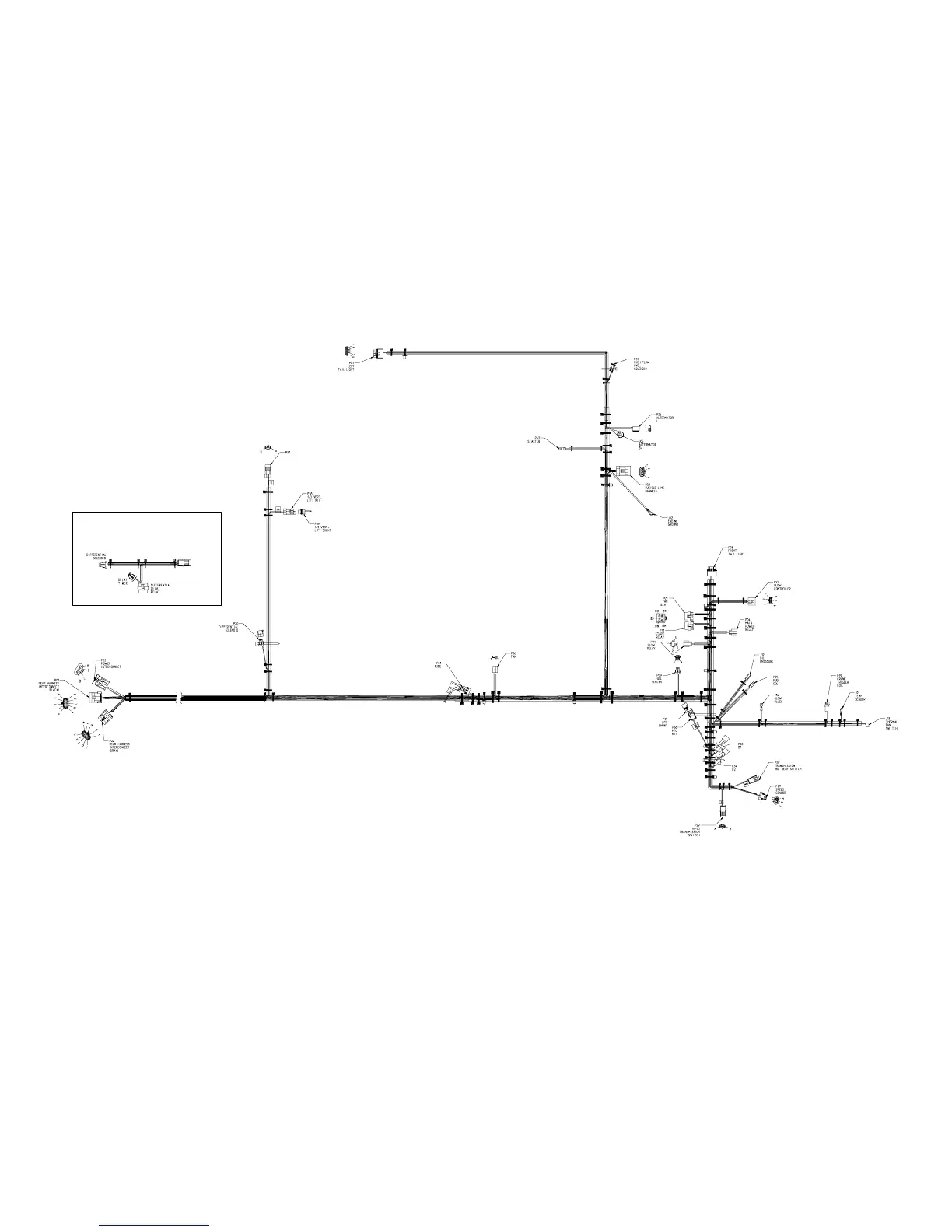

Rear Wire Harness Drawing
Briggs/Daihatsu Diesel Engine
Workman HDX--D
LIFT LEVER
INTERLOCK
SWITCH
TO HARNESS
P20 CONNECTOR
ON EARLY PRODUCTION VEHICLES WITH 4WD,
A SMALL WIRE HARNESS IS CONNECTED TO THE
P20 HARNESS CONNECTOR FOR THE DELAY TIMER
AND DIFFERENTIAL DELAY RELAY . THIS WIRE
HARNESS IS DEPICTED BELOW.
