Mid-Mount Z Service Manual 3 - 1
ENGINE

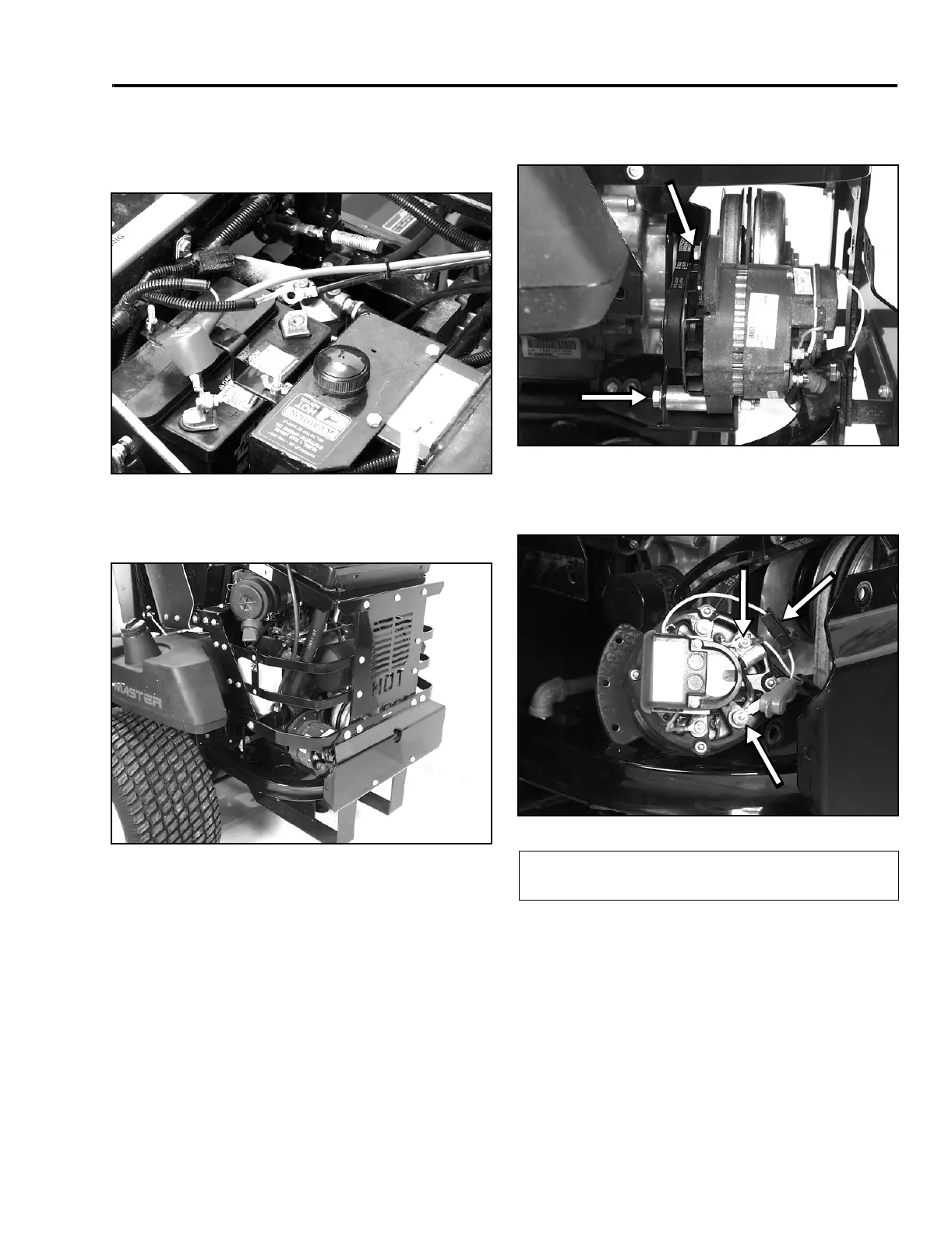

External Alternator Remove & Replace
1. Disconnect the battery negative cable.
Figure 16
0507-001
2. Remove the lower engine protection bracket and
set the coolant recovery bottle off to the side.
Figure 17
0508-002
3. Remove the alternator adjustment bolt and pivot
bolt.
Figure 18
0508-003
4. Remove the alternator belt and rotate the
alternator to gain access to the wiring.
Figure 19
0508-004
5. Remove the alternator output wire, ground wire,
and exciter wire.
6. Inspect the alternator belt for wear, cracking, or
other damage.
7. Reverse procedure to reinstall.
(A) Ground Wire
(B) Exciter Wire
(C) Output Wire
A
B
C
