Mid-Mount Z Service Manual 3 - 11
ENGINE
Models Equipped With Electronic Fuel
Injection (EFI)
For engine specific service or diagnostics procedures
consult the engine manufacture’s service manuals.
The following are the locations of components which
are EFI related but mounted to the unit’s chassis.

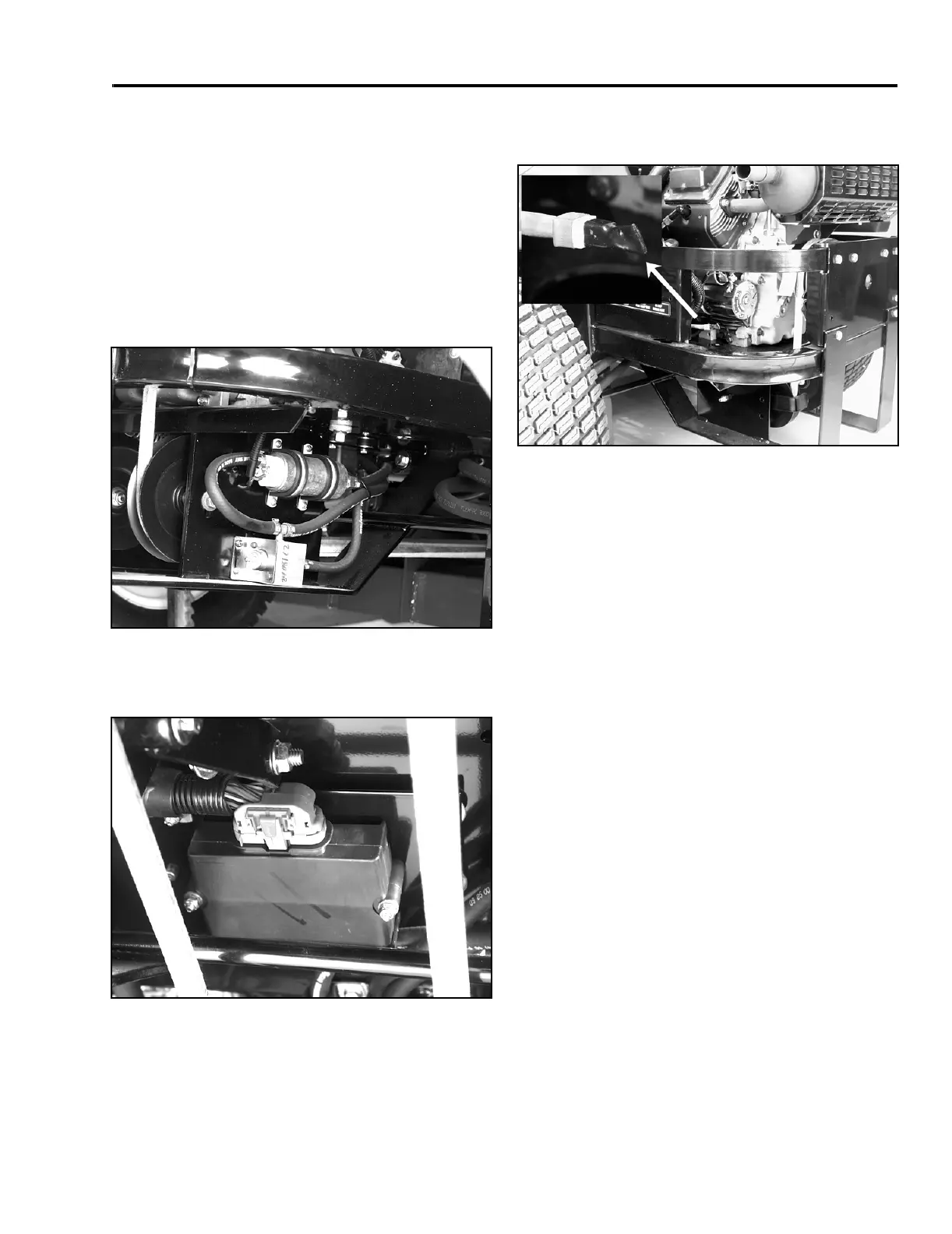

1. The fuel pressure regulator is mounted to the right
side of the frame behind the rear tire.
Figure 56
0507-026
2. The electronic control unit (ECU) is located under
the engine at the rear of the unit.
Figure 57
0507-027
3. The diagnostic plug is installed on the right side of
the machine near the starter.
Figure 58
0507-028
