ENGINE

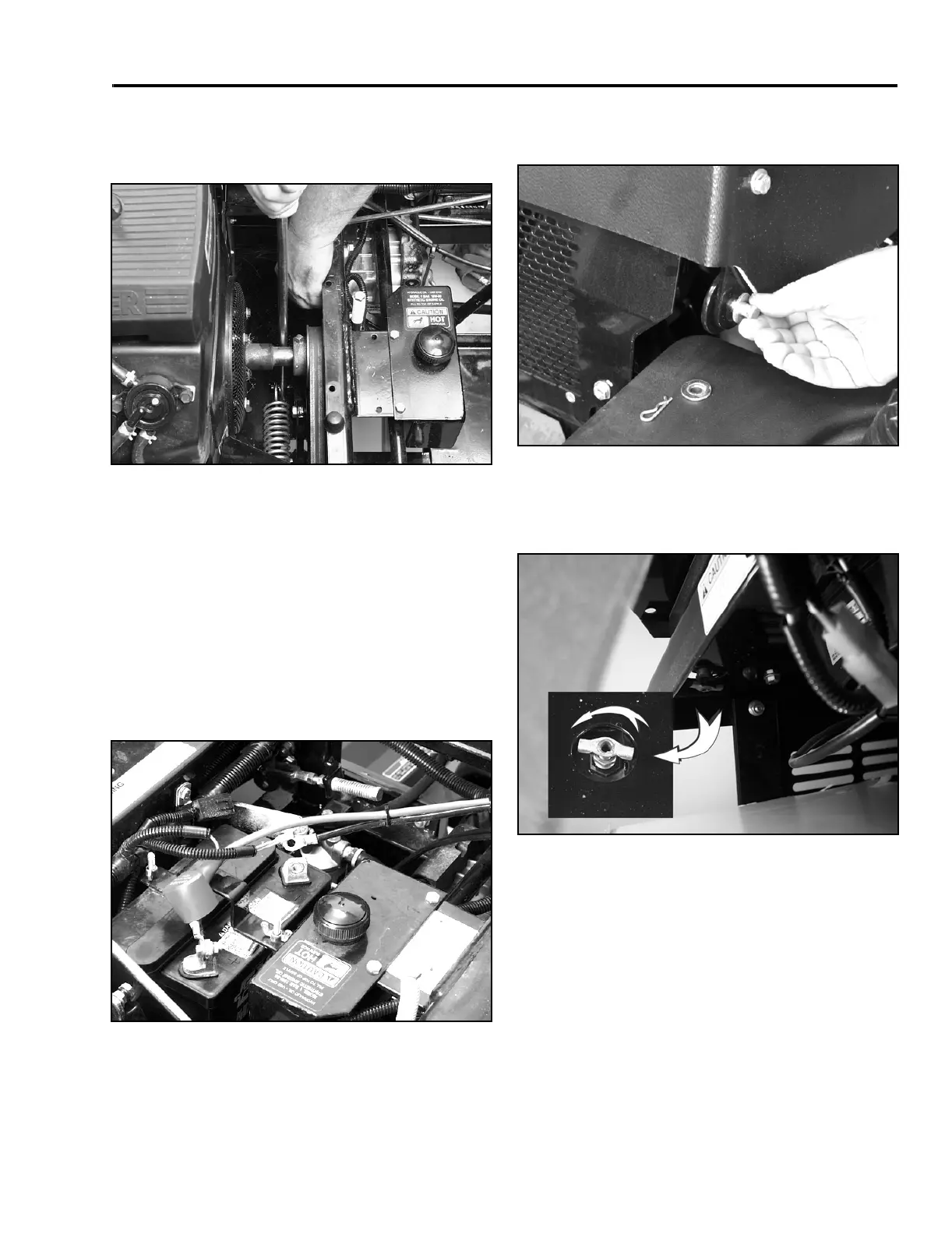

9. Using a suitable pry bar, release the idler pulley
spring tension and remove the hydraulic pump
drive belt.
Figure 24
1023-012
10. Remove the 4 engine mounting bolts.
11. Slide the engine toward the rear of the machine
and rotate it slightly counterclockwise until the
hydraulic pump belt drive pulley clears the
chassis. Then, lift the engine from the chassis.
Engine Remove & Replace
Liquid-Cooled
1. Disconnect the negative battery cable.
Figure 25
0507-001
2. Remove the pins from the radiator cover and lift
off the cover.
Figure 26
0507-002
3. Remove the radiator cap and open the drain
petcock to drain the coolant into a suitable
container.
Figure 27
0507-003
