ENGINE
3 - 4 Mid-Mount Z Service Manual

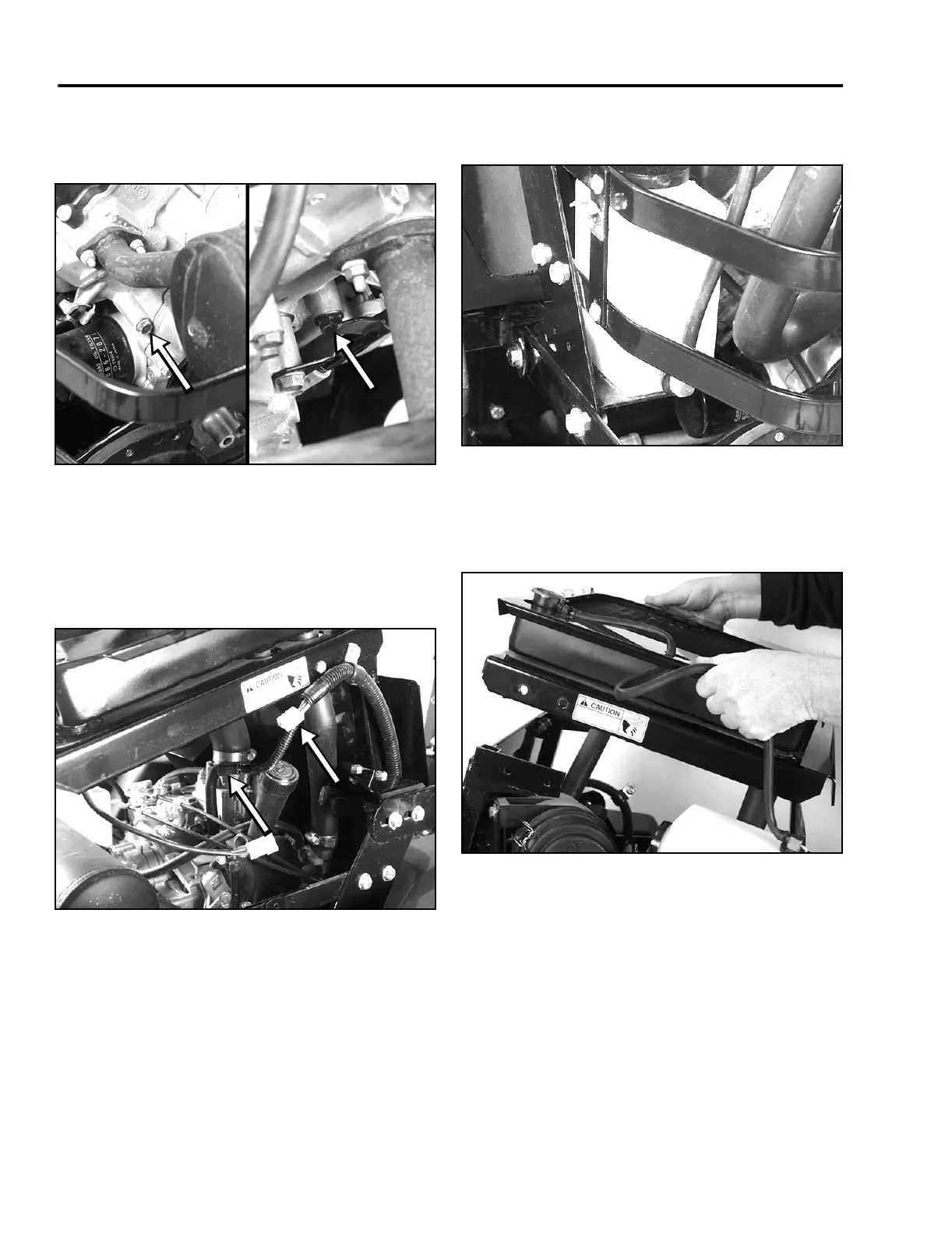

4. To drain the block, remove the drain bolts.
NOTE: apply sealant to the bolt threads during
reassembly.
Figure 28
0507-004
5. Loosen the radiator hose clamps at the water
pump and thermostat housing and remove the
hoses from the fittings.
6. Unplug the electrical connections from the
temperature sender and fan motor.
Figure 29
0507-005
7. Remove the bolts securing the overflow bottle to
the engine guard.
Figure 30
0507-006
8. Remove the 7 bolts securing the radiator support
to the engine guard.
9. Carefully lift the radiator assembly from the unit.
Figure 31
0507-007
