Toro Z Master Z253 Service Manual

Mid-Mount Z Service Manual 3 - 5
ENGINE

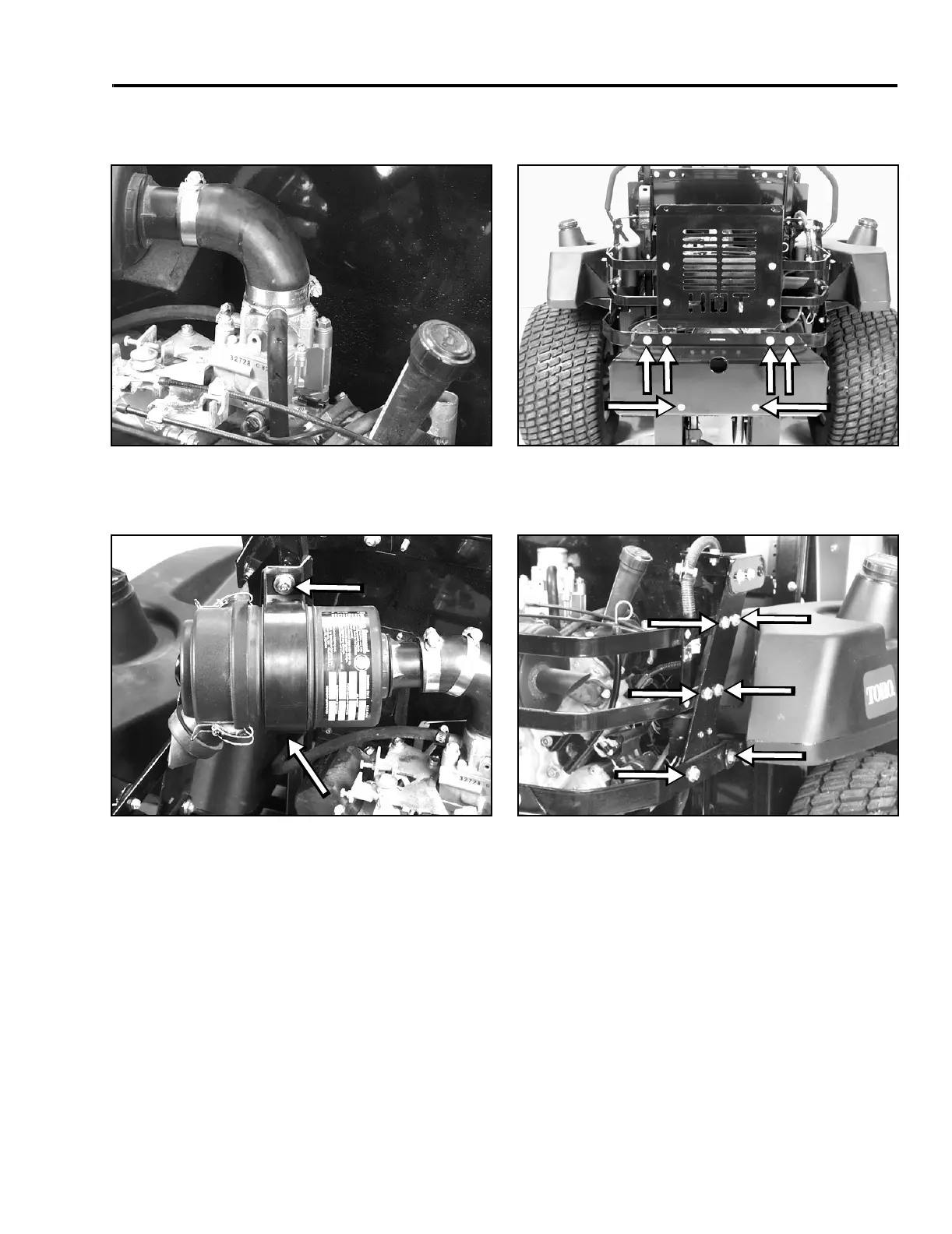

10. Remove the hose clamp from the air cleaner duct
at the carburetor.
Figure 32
0507-008
11. Remove the 2 bolts securing the air cleaner to the
frame and remove the air cleaner.
Figure 33
0507-009
12. Remove the 6 bolts securing the rear bumper to
the engine guard.
Figure 34
0507-010
13. Remove the bolts securing the engine guard bars
to the brackets.
Figure 35
0507-011
