Mid-Mount Z Service Manual 7 - 23
ELECTRICAL SYSTEMS

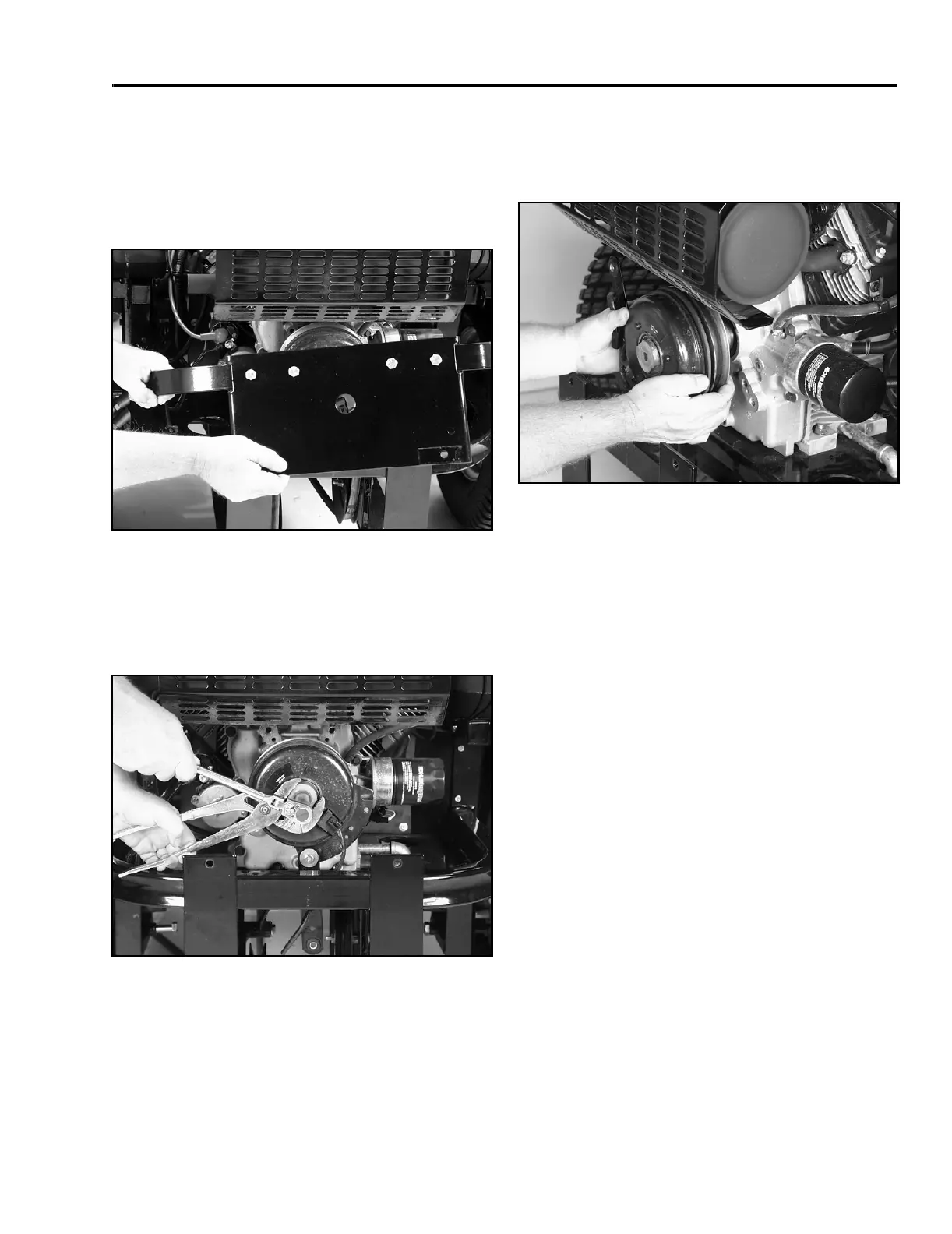

Electric PTO Clutch Removal
1. Remove the PTO clutch anchor bolt.
2. Remove the 4 bolts securing the PTO clutch guard
and remove the guard (Figure 135).
Figure 135
1023-011
3. Disconnect the clutch plug.
4. Use the flats on the washer below the clutch
retaining bolt to hold the crankshaft stationary,
remove the clutch retaining bolt (Figure 136).
Figure 136
1023-001
5. Rotate the clutch assembly until the anchor will
clear the lower clutch guard. Then, slide the
clutch assembly off of the crankshaft while holding
the 2 clutch halves together (Figure 137).
Figure 137
1023-003
NOTE: On reassembly, torque the 7/16” clutch
retaining bolt to ??? ft.-lbs.
