Mid-Mount Z Service Manual 4 - 1
HYDRAULIC SYSTEMS

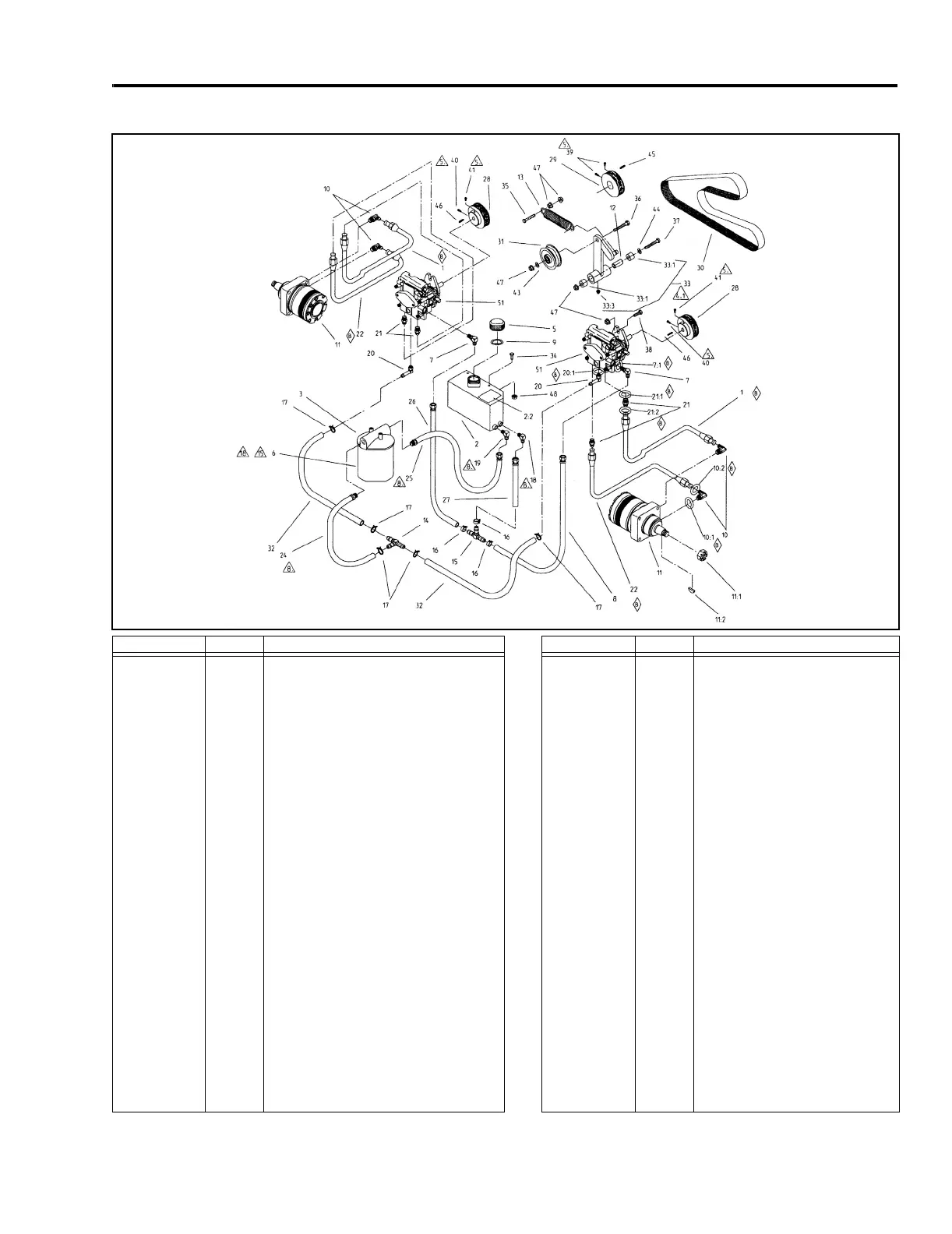

Hydraulic System, Typical
Ref. No. Qty. Description Ref. No. Qty. Description
1 2 Upper Hose 25 1 Hose ASM
2 1 Hydraulic Tank ASM 26 1 Hose ASM
3 1 Head Filter 27 1 Hose ASM
5 1 Cap (Hydraulic Reservoir) 28 2 Sheave
6 1 Hyd Filter 29 1 Sheave
6 1 Winter Hyd Filter 30 1 Pump Drive Belt
7 2 90 Deg Fitting 31 1 Idler Sheave
8 1 Low Pressure Hose ASM 32 2 Lower Pressure Hose
9 1 Tank Cap Gasket 33 1 Bearing Arm ASM
10 4 Connector Fitting 34 2 HH Screw
10 4 90 Deg Fitting 35 1 HH Screw
11 2 Wheel Motor 36 1 HH Screw
12 1 Idler Pivot Bushing 37 1 HH Screw
13 1 Extension Spring 38 4 HH Screw
14 1 Hose Tee Fitting 39 2 Screw
15 1 Hose Tee Fitting 40 2 Screw
16 3 Hose Clamp 41 2 Set Screw
17 5 Hose Clamp 43 1 Flat Washer
18 1 Elbow Fitting 44 1 Flat Washer
19 1 Elbow Fitting 45 1 Square Key
20 2 Elbow Fitting 46 2 Machine Key
21 4 Straight Fitting 47 8 Flange Nut
22 2 Lower Hose 48 2 HF Nut
24 1 Hose ASM 51 2 RH Hydraulic Pump
51 1 Overhaul Seal Kit
