ENGINE
3 - 6 Mid-Mount Z Service Manual

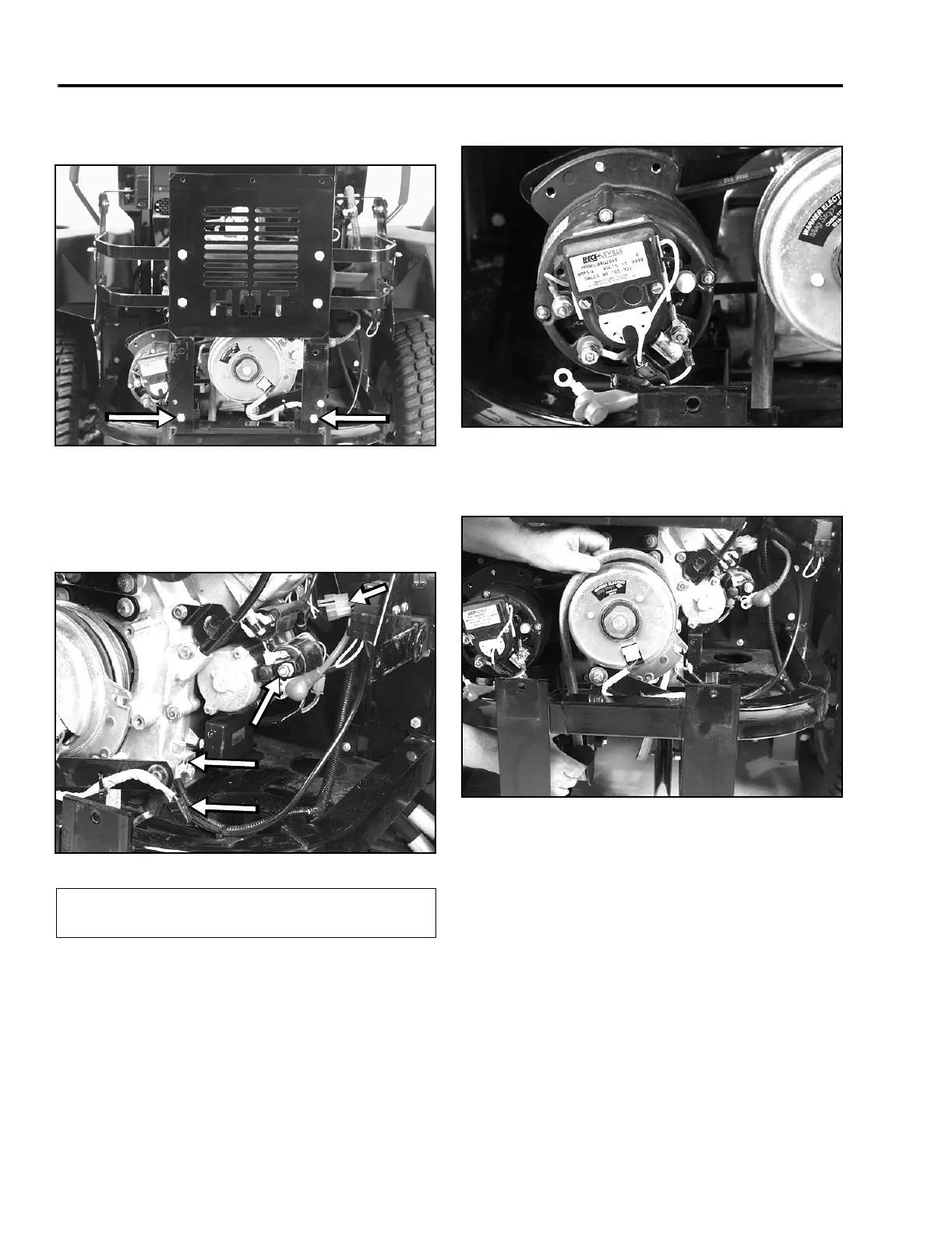

14. Remove the bolts holding the engine guard to the
frame, and then remove the guard.
Figure 36
0507-012
15. Disconnect the positive battery cable and main
power feed from the starter. Then separate the
engine harness connector and electric clutch
connector. Then remove the engine ground wires.
Figure 37
0507-013
16. Remove the alternator output and ground wires.
Figure 38
0507-014
17. Lift the lever on the deck belt tension pulley and
remove the belt.
Figure 39
0507-015
(A) Engine Harness
(B) Positive Battery Cable
(C) Engine Ground
(D) Clutch Connector
A
B
C
D
