Mid-Mount Z Service Manual 3 - 7
ENGINE
18. Remove the control wires for the carburetor choke
and throttle control.

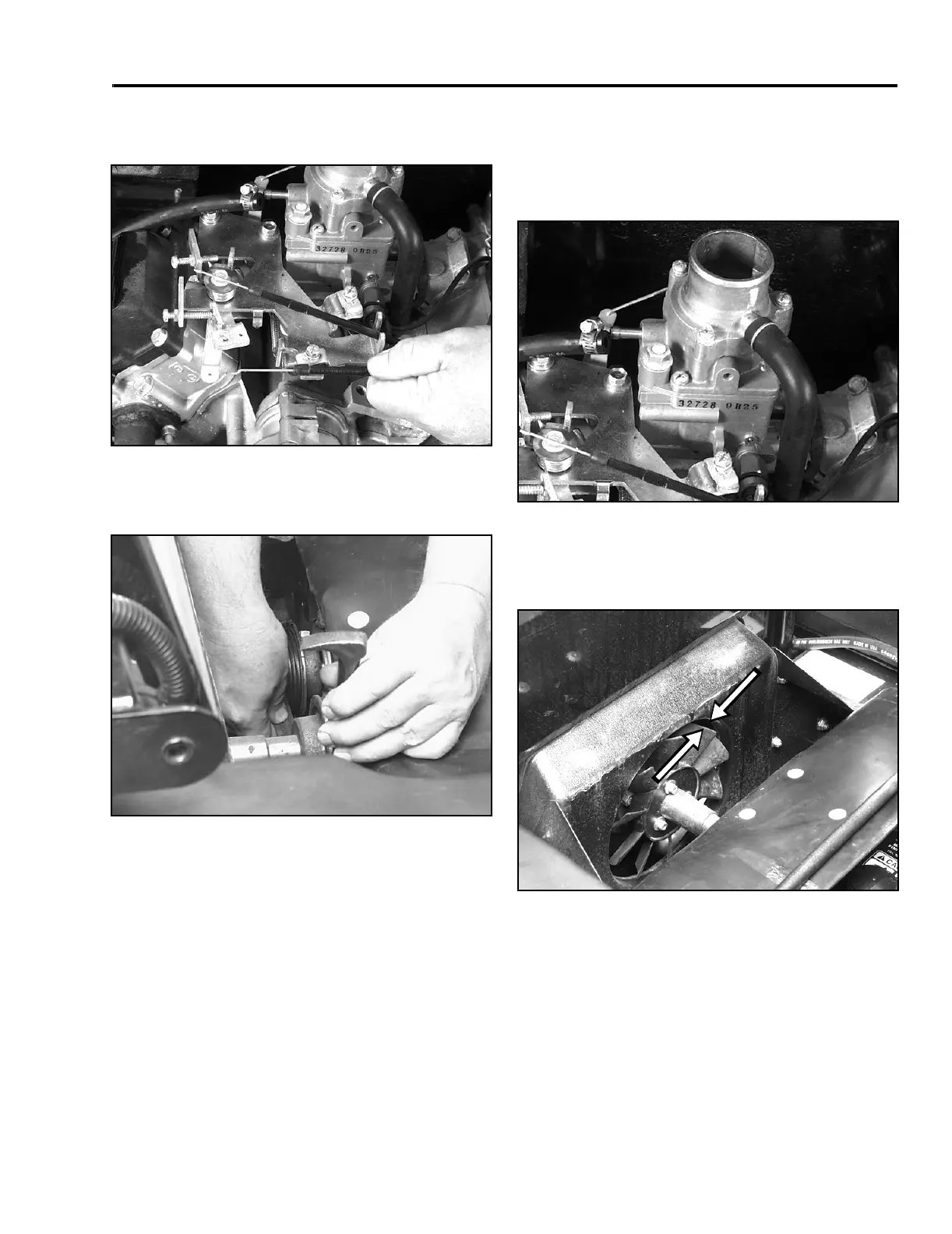

Figure 40
0507-016
19. Use a bar to release the drive belt tension and
remove the belt.
Figure 41
0507-017
20. Make sure the fuel selector is in the off position.
Then remove the fuel line from the carburetor.
CAUTION: Gasoline is extremely flammable.
Drain into a suitable container and keep away
from any source of combustion.
Figure 42
0507-018
21. Remove the bolts securing the engine base to the
chassis. Then carefully slide the engine back,
making sure that the fan clears the fan shroud.
Figure 43
0507-019
