ENGINE
3 - 10 Mid-Mount Z Service Manual

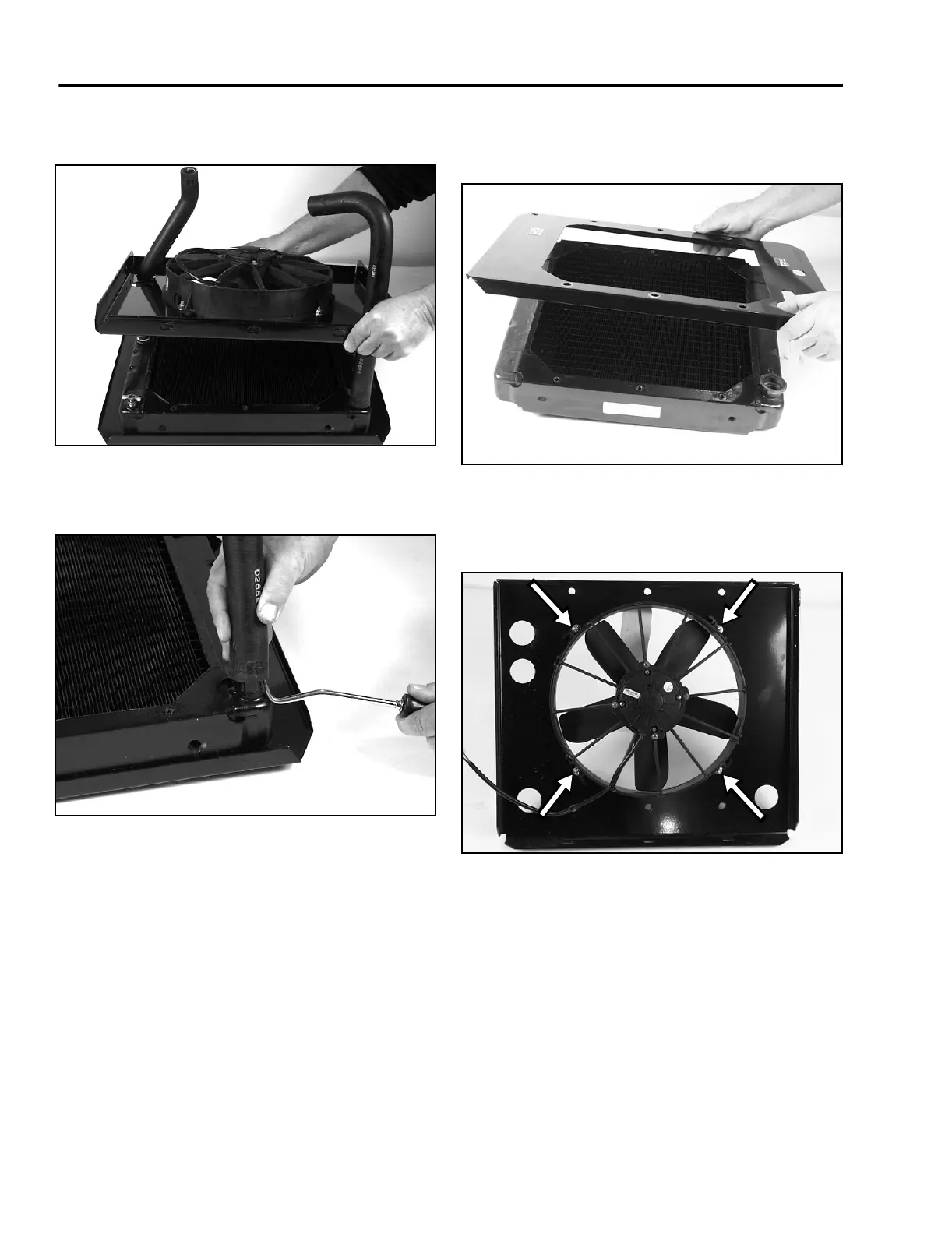

11. Remove the 6 bolts securing the lower radiator
support to the radiator, and then lift off the support.
Figure 52
0507-022
12. Carefully work the hoses free from the radiator
fittings.
Figure 53
0507-010
13. Turn the radiator over. Remove the 6 bolts
securing the upper radiator support to the radiator
and remove the support.
Figure 54
0507-024
14. If it is necessary to remove the electric fan
assembly, remove the 4 nuts and bolts securing it
to the lower radiator support.
Figure 55
0507-025
To Next Page
