Toro Z Master Z253 Service Manual

Mid-Mount Z Service Manual 3 - 9
ENGINE

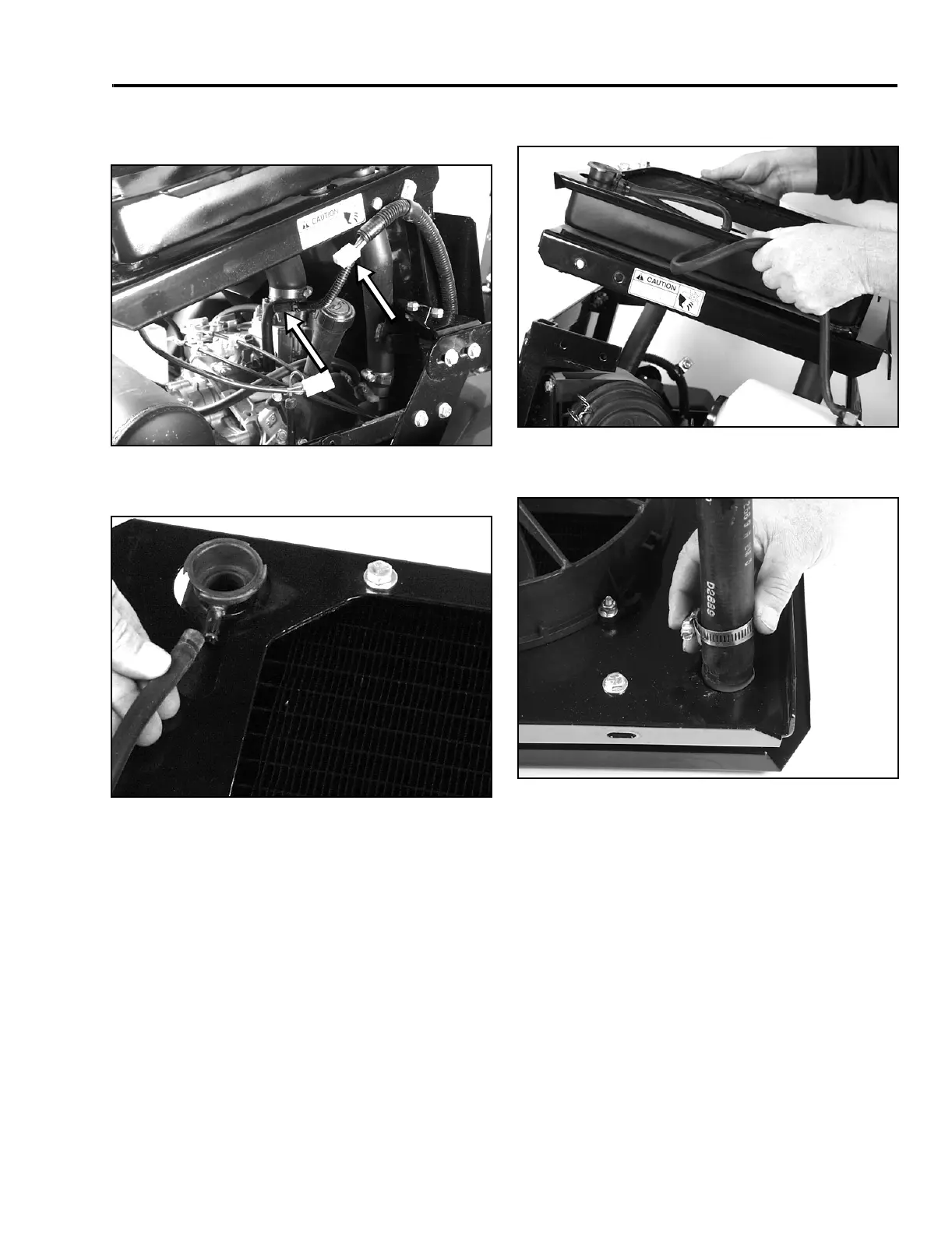

6. Unplug the electrical connections from the
temperature sender and fan motor.
Figure 48
0507-005
7. Remove the overflow hose from the radiator.
Figure 49
0507-020
8. Remove the 7 bolts securing the radiator support
to the engine guard.
9. Carefully lift the radiator assembly from the unit.
Figure 50
0507-007
10. Remove the hose clamps from the radiator fittings.
Figure 51
0507-021
