Mid-Mount Z Service Manual 5 - 3
CHASSIS

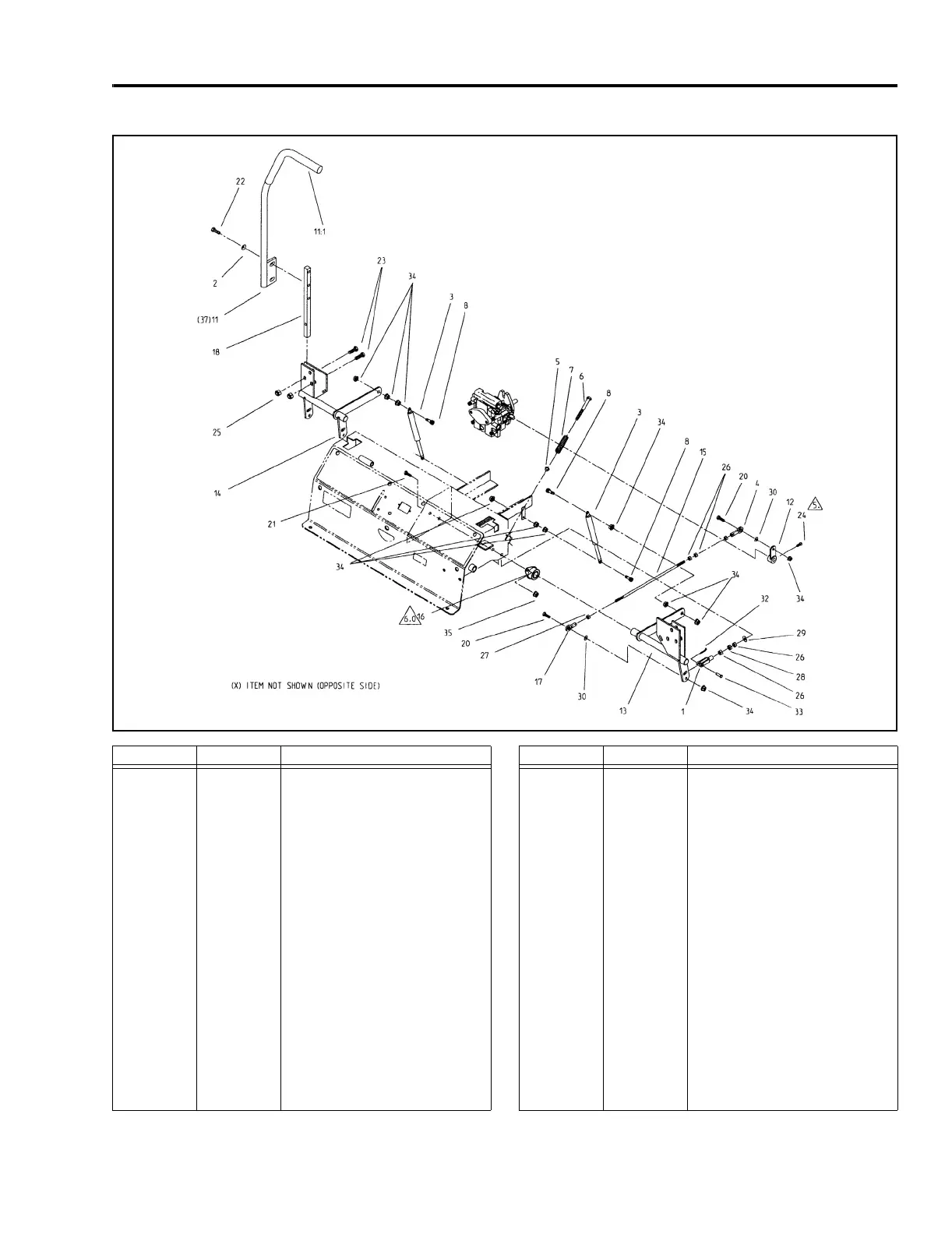

Control Linkage, Typical
Ref. No. Qty. Description Ref. No. Qty. Description
1 2 Adjustable Yoke 20 4 HH Screw
2 4 Belleville Washer 21 8 HH Screw
3 2 Control Damper 22 4 HH Screw
4 2 RH Ball Joint 23 6 HH Screw
5 2 Nylon Flanged Bushing 24 2 Screw
6 2 Neutral Return Bolt 25 6 Lock Nut
7 2 Neutral Return Spring 26 10 Hex Nut
8 4 HH Screw 27 2 Nut
11 1 RH Lever/Grip ASM 28 2 Nut
12 2 Pump Control Arm WLD 29 2 Flat Washer
13 1 LH Motion Control 30 4 Flat Washer
14 1 RH Motion Control 32 2 Cotter Pin
15 2 Pump/Lever Linkage 33 2 Clevis Pin
16 4 Side Flange Bearing 34 16 HF Nut
17 2 LH Thread Ball Joint 35 8 Flange Nut
18 2 Control Shaft Arm 37 1 LH Lever/Grip ASM
To Next Page
