CHASSIS

5 - 16 Mid-Mount Z Service Manual

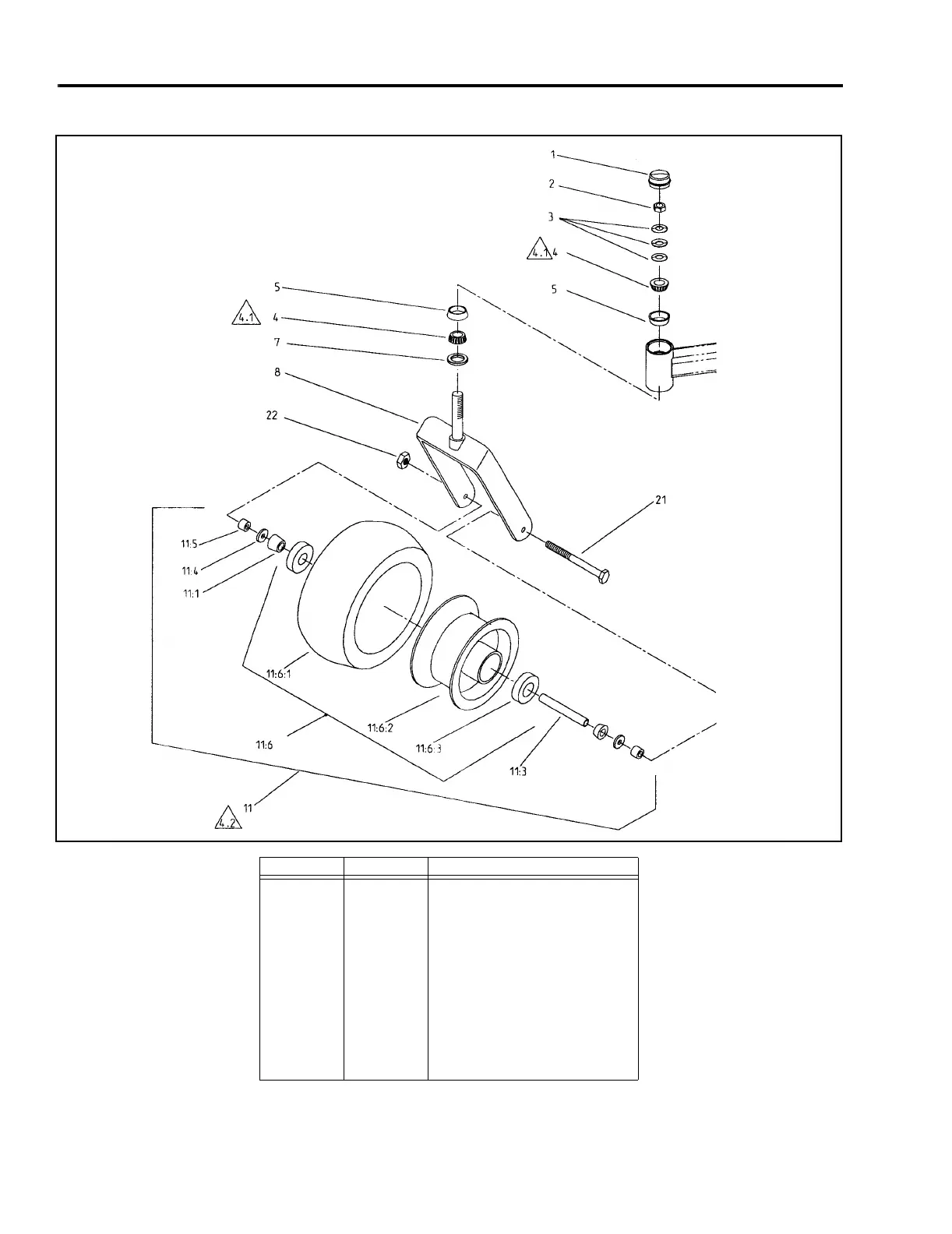

Wheel and Caster Assembly

Ref. No. Qty. Description

1 2 Grease Cap

22Lock Nut

3 6 Belleville Washer

4 4 Tapered Roller Bearing

5 4 Cup Bearing

7 2 Grease Seal

82Caster

11 2 Caster Wheel Assembly

21 2 HH Screw

22 2 Lock Nut
