1 TROUBLESHOOTING FOR THE HARDWARE
14 Clearing a Paper Misfeed
Clearing a Paper Misfeed

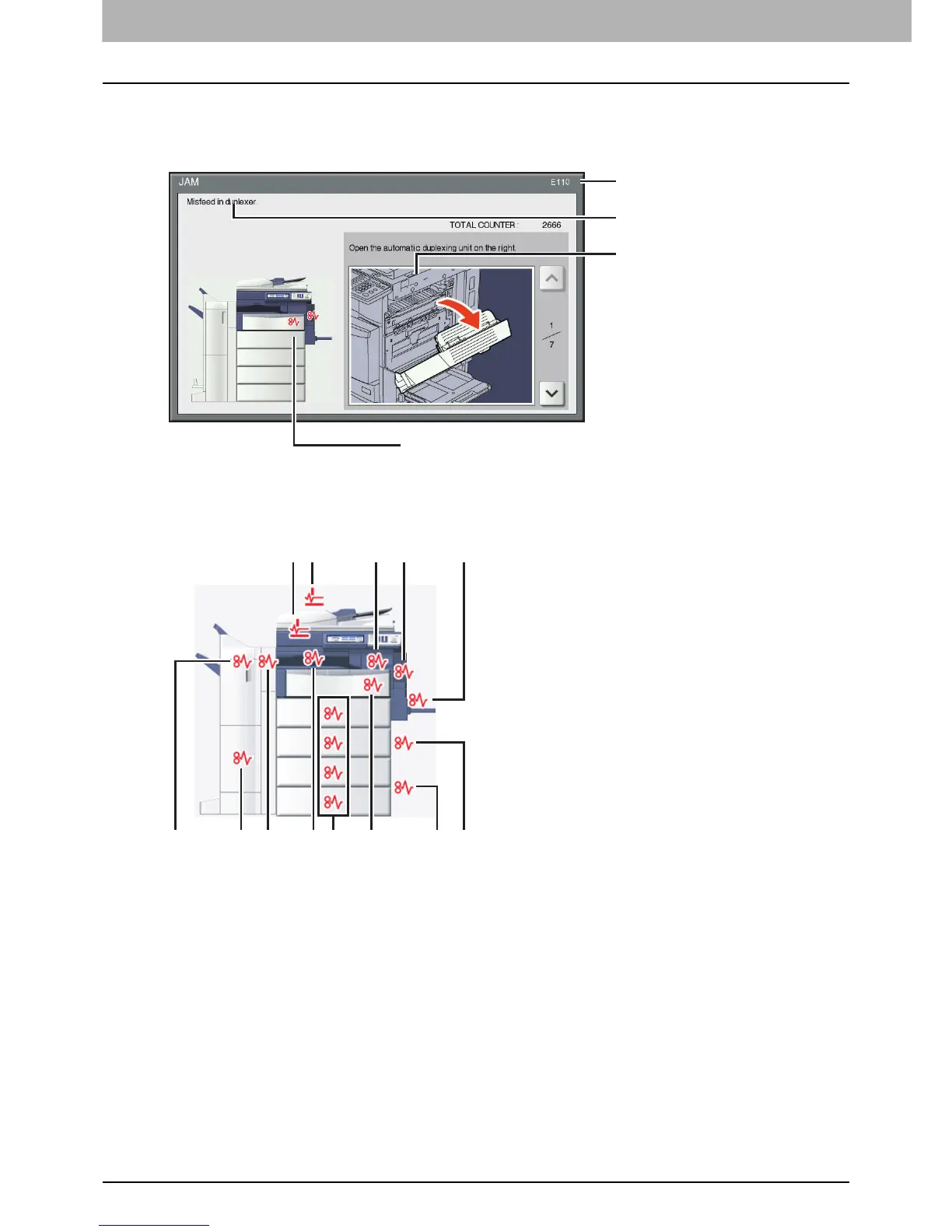

Locating a paper misfeed
The equipment stops printing when the original or paper is misfed. Paper misfeeds are notified on the touch panel as
follows:
The paper misfeed symbol helps you locate the paper misfeed.
1. Reversing Automatic Document Feeder (optional) (lower) ( P. 1 6 )
2. Reversing Automatic Document Feeder (optional) (upper) ( P.17)
3. Fuser unit ( P.22)
4. Automatic duplexing unit ( P.21)
5. Bypass tray ( P. 2 1 )
6. Drawer feeding portion ( P. 1 8 )
7. Large Capacity Feeder ( P.19) or Paper Feed Pedestal (both optional) ( P. 1 9 )
8. Misfeed releasing cover ( P.22)
9. Drawers ( P.20) or drawer of the Large Capacity Feeder (optional) ( P. 2 0 )
10. Bridge Unit (optional) ( P.24)
11. Hole Punch Unit (optional) ( P. 2 5 , P.29)
12. Saddle Stitch unit (optional) ( P. 3 4 )
13. Finisher (optional) ( P.25, P.29, P. 3 3 )
The picture of the hardware device shown on the touch panel differs depending on the Finisher options installed.
Error code
Error message
Paper misfeed symbols
Guidance for
clearing paper misfeeds
12 1113 810 67
21 3 4 5
9
To Next Page
