6.TROUBLESHOOTING

Paper Misfeed 141

6 TROUBLESHOOTING

5

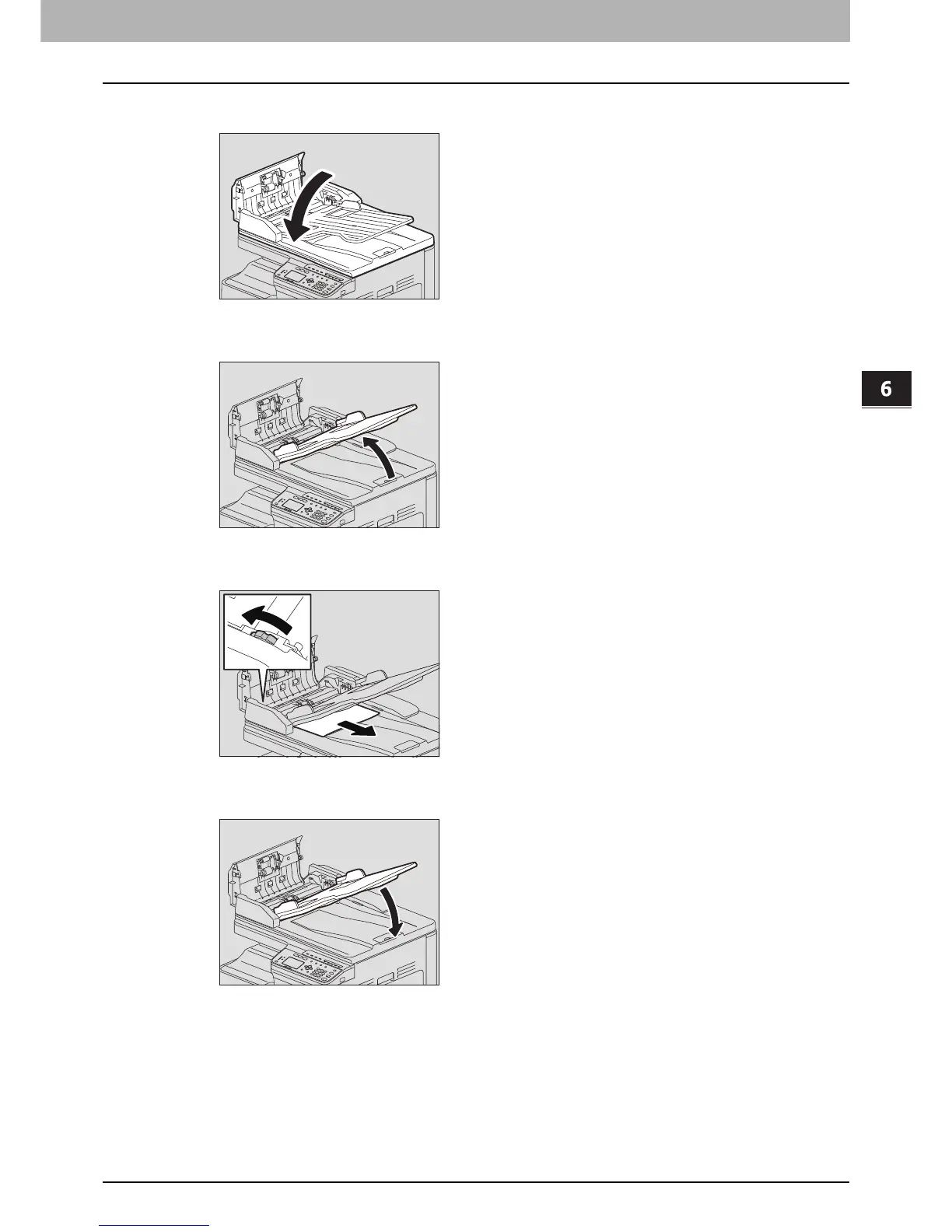

Close the Reversing Automatic Document Feeder.

6

Raise the feeder tray.

7

Turn the dial to remove the misfed original.

8

Lower the feeder tray.
