6.TROUBLESHOOTING

Paper Misfeed 145

6 TROUBLESHOOTING

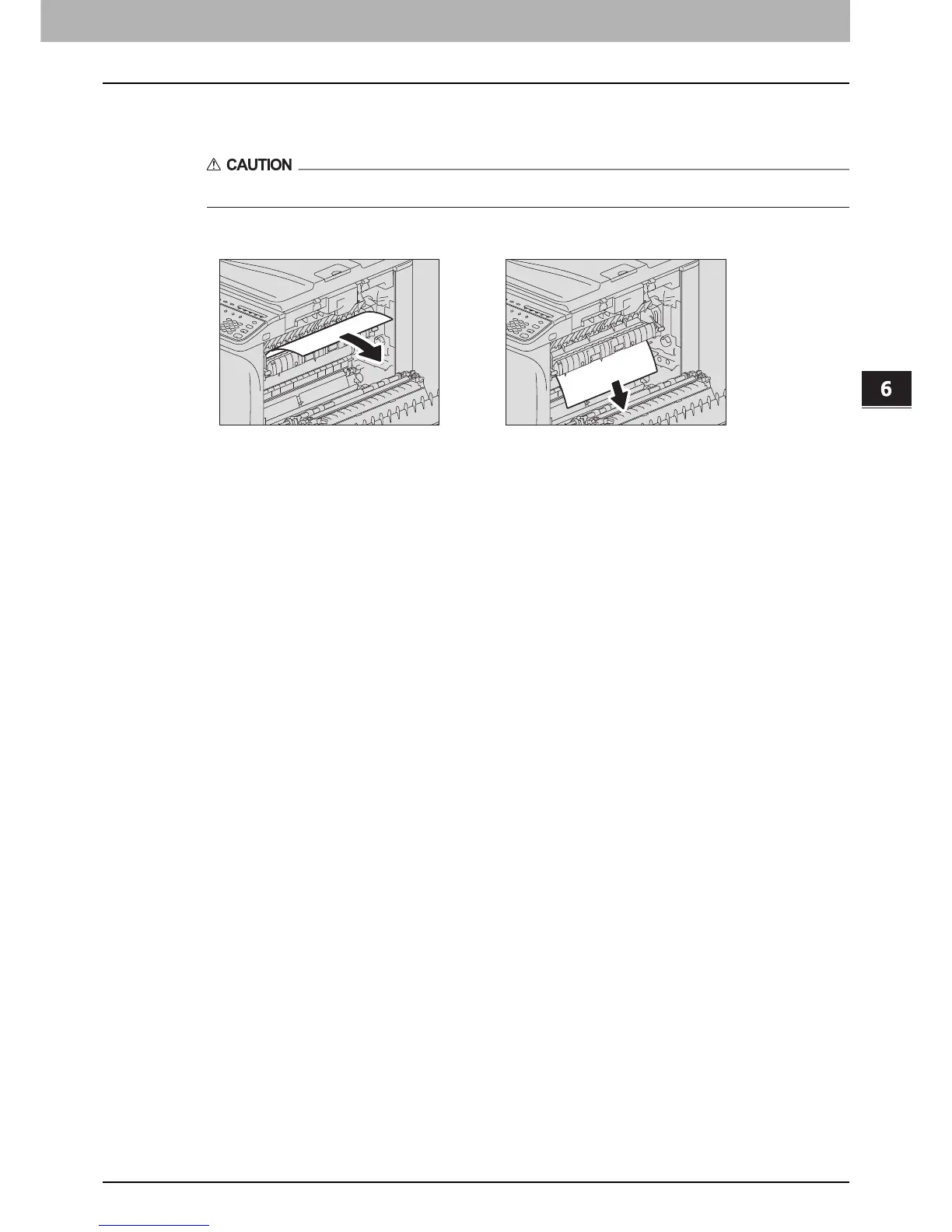

Release the misfed paper within the fuser unit.

Pull the misfed paper up or down as shown below depending on its position.

Be sure not to touch the photoconductive drum when releasing the misfed paper.

Return the transport guide and transfer unit to their original positions, and then close

the side cover.

Pulling it up

Pulling it down
