2 BASIC OPERATION
12 Viewing Touch Panel for Scan Menu
Viewing Touch Panel for Scan Menu

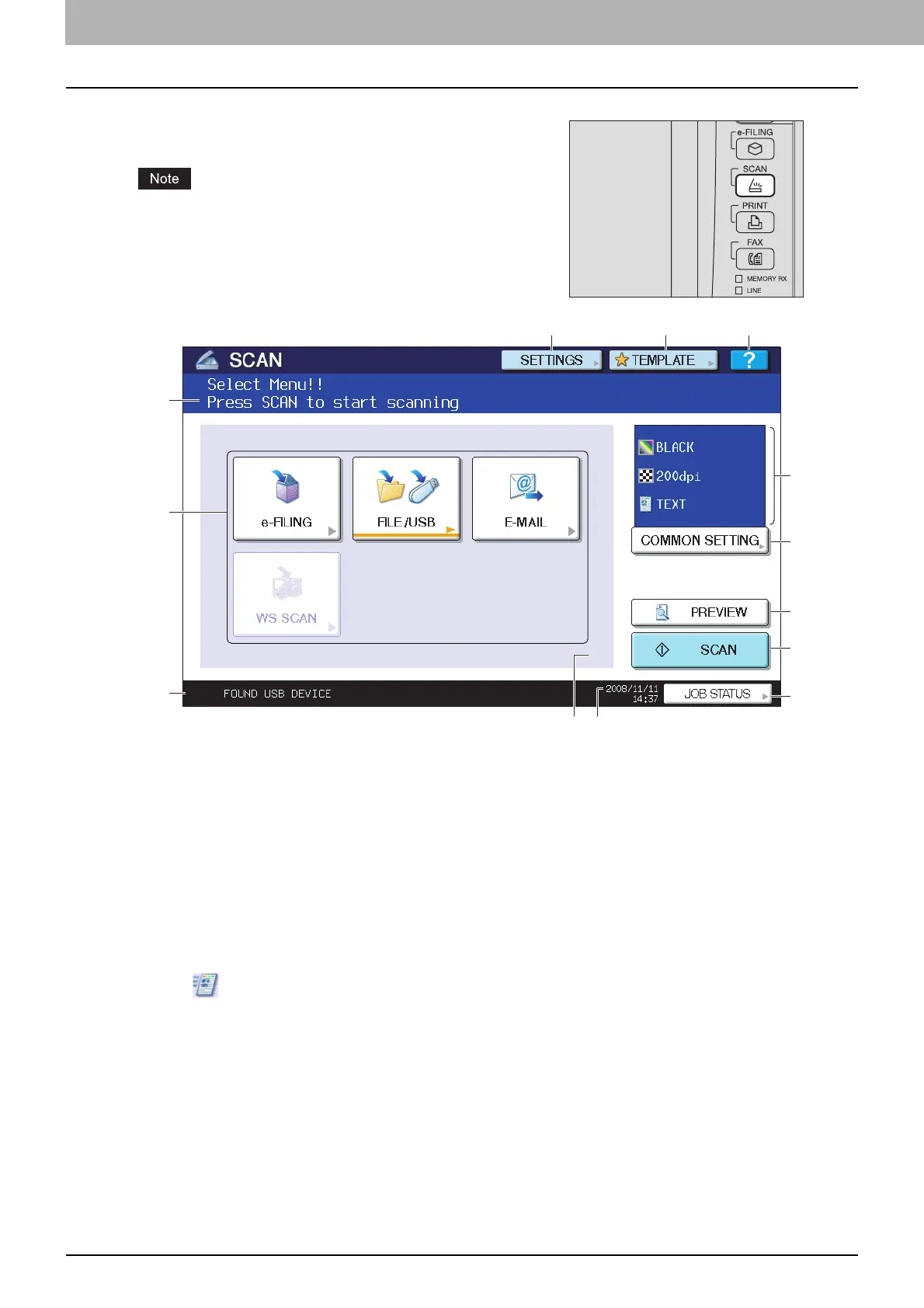

1) Message Display Area
Operational instructions and the status of the equipment are displayed.
2) Function Buttons
Press one of these buttons when you select the scan function. Pressing one of these buttons displays the set-up
screen specific to the selected scan function.
3) Alert Message Display Area
Alert messages are displayed when the equipment needs a toner cartridge replacement, the waste toner box needs
cleaning, etc. For details on these messages, refer to the Troubleshooting Guide.
4) “Imaging Acceleration Board” Icon (e-STUDIO4520C Series and e-STUDIO6530C Series)
This icon appears when the Imaging Acceleration Board (GE-1170, optional) is installed into this equipment.
P.20 “FILE FORMAT”
5) Date and Time
6) [JOB STATUS]
Press this button when you want to monitor your copy, fax, scan, and/or print jobs or view the job logs.
P.31 “Viewing the scan job status”
P.31 “Viewing the scan job log”
7) [SCAN]
Press this button to perform scanning.
When you press the [SCAN] button on the control panel, the SCAN
menu is displayed on the touch panel.
If the equipment is managed by the Department Management or
User Management features, you need to enter a department code
or the user information, such as the user name and password.
1
111213
4
2
3
6
7
8
9
10
5
To Next Page
