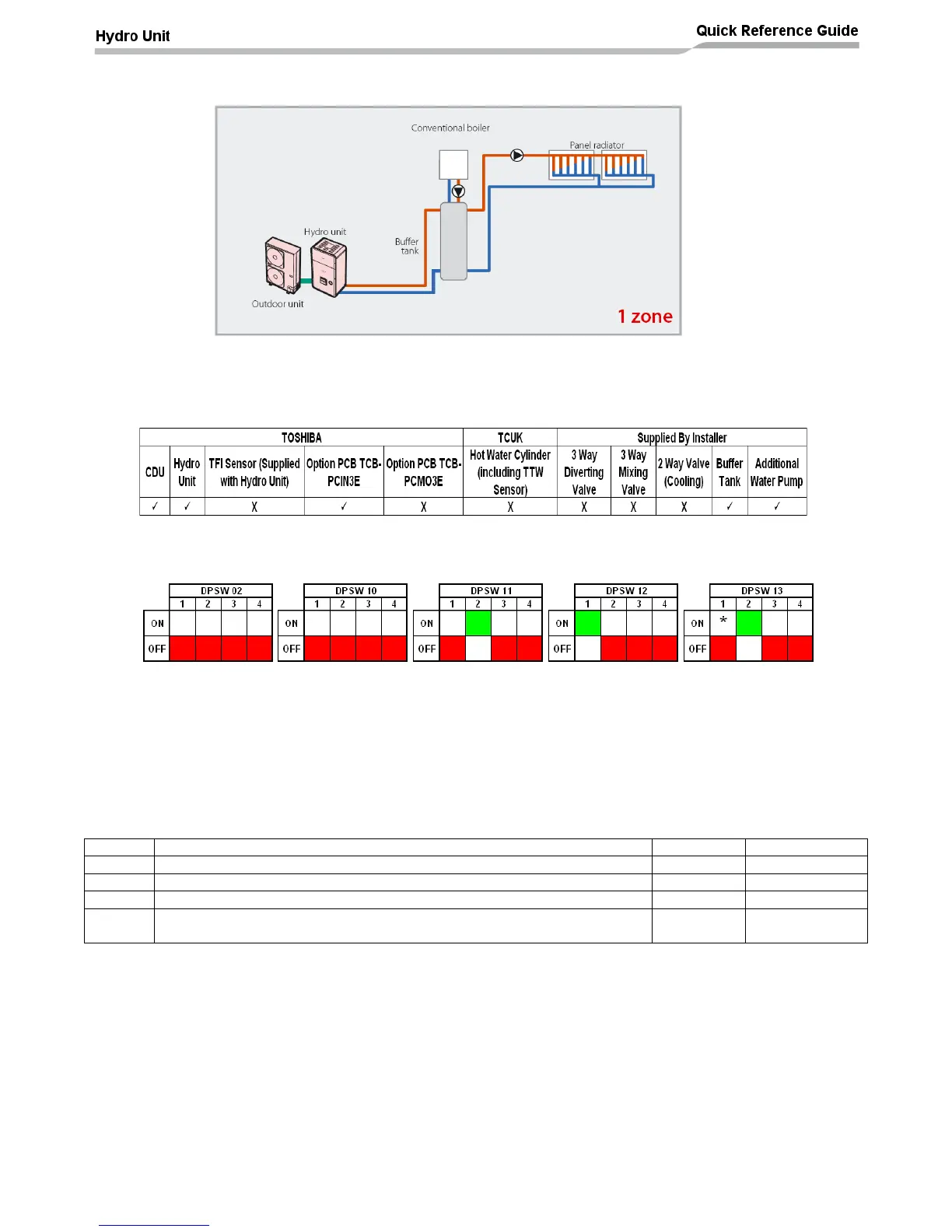

 Zone 1 Heating With Existing Auxiliary Boiler
Equipment Selection:
DPSW Settings:
DPSW11_2 = ON: Hot water cylinder electric heater disables
DPSW12_1 = ON: Hot water cylinder not connected to system
DPSW13_2 = ON: Boiler output control enabled (use in conjunction with FC23)
All other DPSW’s set in the OFF position.
Function Code Settings:
Please check the following pages for the set-up of:
 External room thermostat pg.40
 Room temperature controller (HWS-AMS11-E) pg.41
 Auto curve set up pg.43
 Auxiliary boiler output pg.44
FC No
FC Description
FC Range
Default Setting
1A
Heating – upper temperature set point limit - Zone 1( °C)
37 ~ 55
55
1B
Heating – lower temperature set point limit - Zone 1( °C)
20 ~ 37
20
23
Trigger temperature to turn boiler output (on TCB-PCIN3E) ON (°C)
-20 ~ 20
-10
3E
Boiler / heat pump synchronisation: 0 = synchronised; 1 = not
synchronised
0 ~ 1
0
