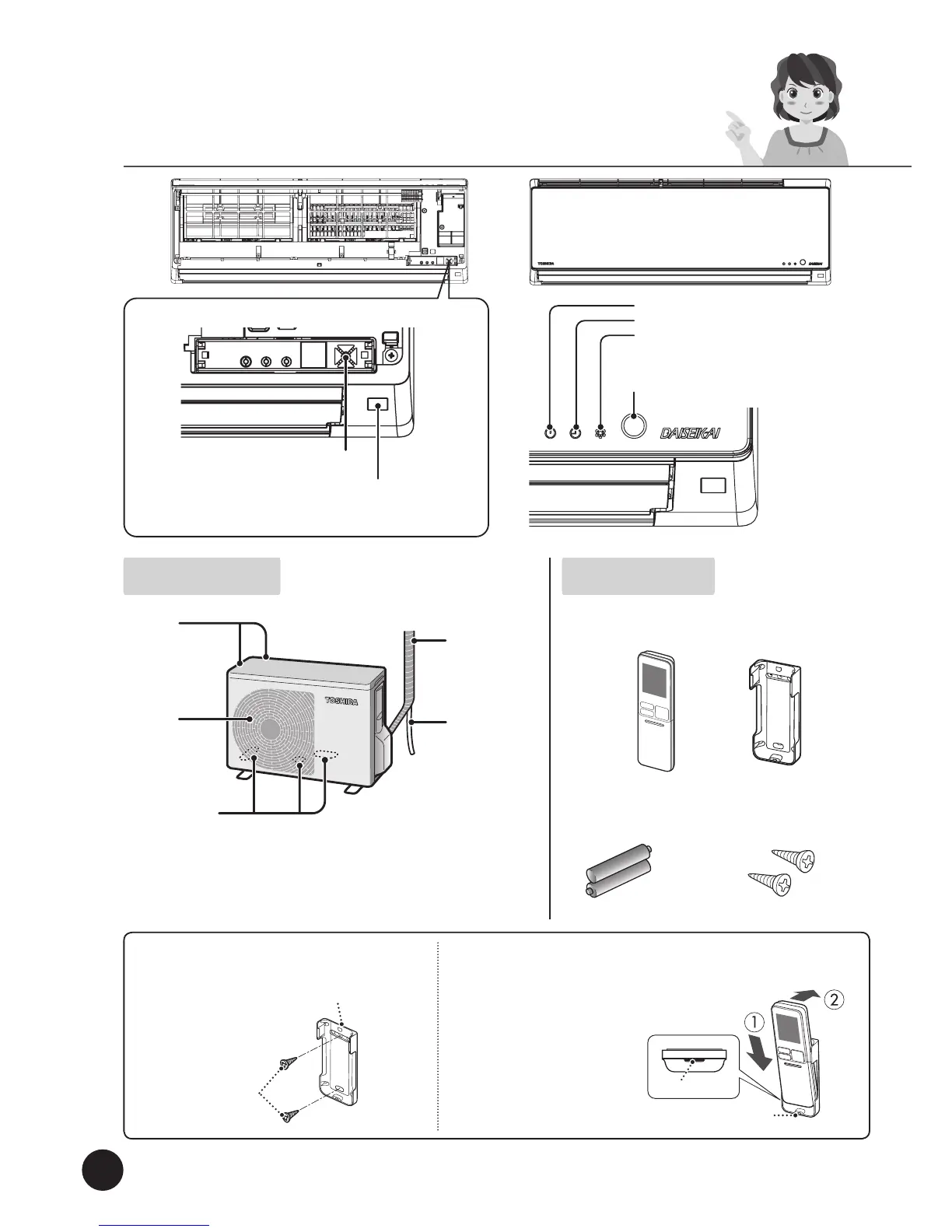

Remote control
receiving module
Temporary switch
Outdoor unit Accessories
Air outlet
Drain outlet
(Bottom)
Piping and cable
Drain pipe
(Drain hose)
Air inlet
(Back and
lateral sides)
“Operation” lamp
“Timer” lamp
“Plasma ionizer purifier” lamp
Operation mode lamp
“Cool” (Blue)
“Heat” (Orange)
Remote control Remote control holder
Dry batteries (2 pieces)
AAA alkaline dry batteries
Attachment screws for
remote control holder
(2 pieces)
How to attach the remote control holder
Attach the remote control holder to a wall or a column with the
supplied attachment screws for the remote control holder.
Remote control holder
Screws to attach
remote control
holder
How to attach / detach from the remote
control holder
Insert the “stick out” of the remote control
holder into the hole of the lower remote
control and set it while pressing toward the
direction of arrow.
Detach it by reversing the procedure.
Hole
Stick out
