–13–

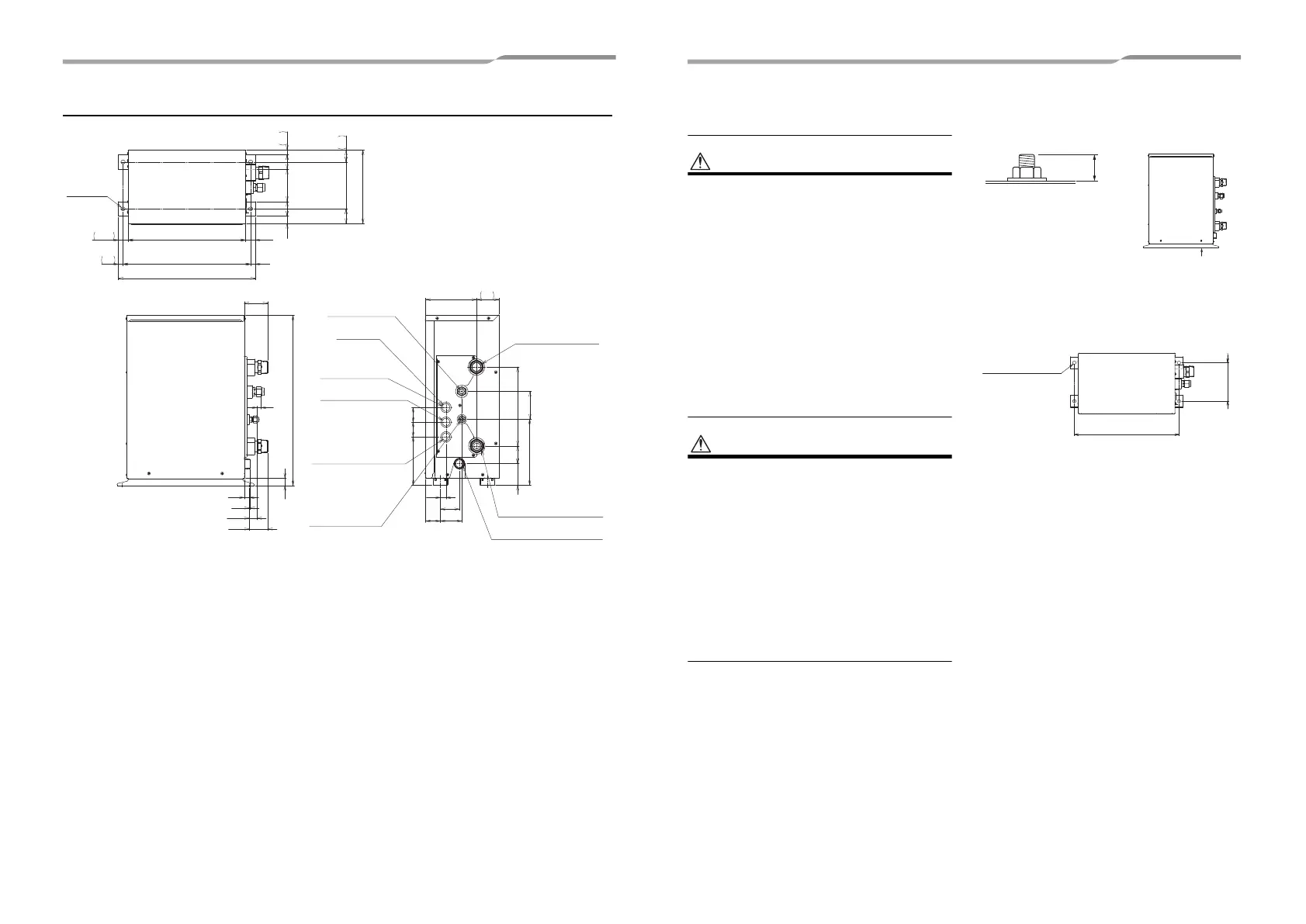

External dimensions (Unit: mm)
25
467
250
15
400 33.5
33.5
50
160 50
435 16
16
40
50
110
80
15
580
25
62.5
25.5
1.5
18
50
50
74
19
165
50
60
269
225 95
73
76 174
65
Anchor
bolt hole
pitch
Anchor bolt hole pitch
4-14×12
Long hole
Refrigerant pipe
connecting port
Ø15.9 Gas side
3-Ø26
Power supply
wiring port
Control wiring port
External signal
wiring port
Refrigerant pipe
connecting port
Ø9.5 Liquid side
R1-1/4 (PT1-1/4Screw)
Water Outlet
R1-1/4(PT1-1/4Screw)
Water Inlet
R1 (PT1 Screw) Drain
Fixing the hot water module
to floor
• Be sure to install the hot
water module in a place able
to bear its weight.
If strength is insufficient, the unit
may fall down resulting in
human injury.
• Perform specified installation
work to protect earthquakes.
If the hot water module is
imperfectly installed, an
accident by falling or dropping
may be caused.
• Drain water is discharged from
the hot water module.
(Especially while operating)
Install the hot water module in a
place with good drainage.
• For installation, be careful of the
strength and level of the
foundation so that abnormal
sounds (vibration or noise) are
not generated.
• Be sure to install the hot water module in a place
strong enough to withstand its weight. If the base is
unstable, reinforce with a concrete base.
• The hot water module must be anchored on a level
surface. Use a level to check after installation.
• If the hot water module is installed near a room
where noise is a problem, using an anti-vibration
stand on the base of the unit is recommended.
1. Fix the hot water module with M8 anchor bolts at 4
positions. 20 mm projection is appropriate for an
anchor bolt.
(Unit: mm)
• Anchor bolt positions are as shown below:
(Unit: mm)
20
M8 anchor bolt 4 positions/unit
25-EN 26-EN
