TMC7 Series
Page 16
710-02887-00A

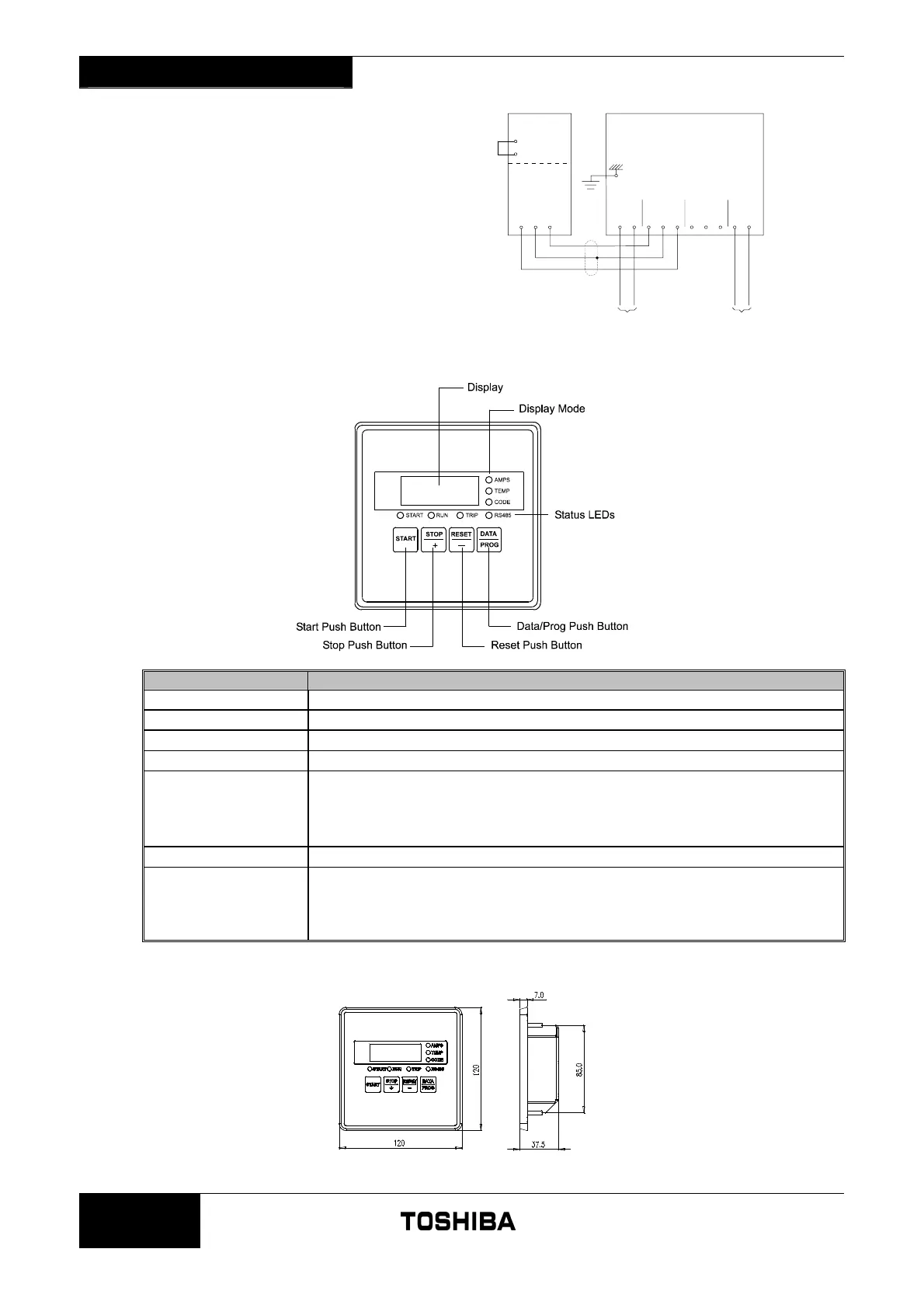

3. Wire between the Remote Operator and TMC7.
TMC7 SERIES REMOTE OPERATOR
(MOTOR CURRENT)
RS485
SERIAL PORT
B3
B2
B1
B1
B2
B3 B6
B7 B8
GND
RS485 RS485
GND
+
-GND
+
-
STARTER NETWORK
-
+
REMOTE
INTERFACE
4-20 mA
ANALOGUE OUTPUT
B10
B11
4-20mA
-
+
SUPPLY
SUPPLY VOLTAGE
18 ~ 30 VAC/VDC
12
POWER
~/+
~/
-
A1
02
Operation
Description
Start Push Button Starts the motor.
Stop Push Button Stops the motor.
Reset Push Button Resets the TMC7.
Data/Prog Push Button Select the data type to be shown on the display (Motor Current or Motor Temperature).
Display Mode
Indicates data type shown on the display:
• Motor Current
• Motor Temperature
• Trip Code
Display Indicates the value of the currently selected data.
Status LEDs
Indicates status of the TMC7 and the RS485 link between the Remote Operator and TMC7.
NOTE:
Simultaneously pressing the Stop and Reset pushbuttons initiates a quick stop, which immediately
removes voltage from the motor, ignoring any soft stop time set on the TMC7 soft starter.
