Toshiba TMC7 Series User Manual

ACCESSORIES
Page 15
710-02887-00A
TMC7 Series

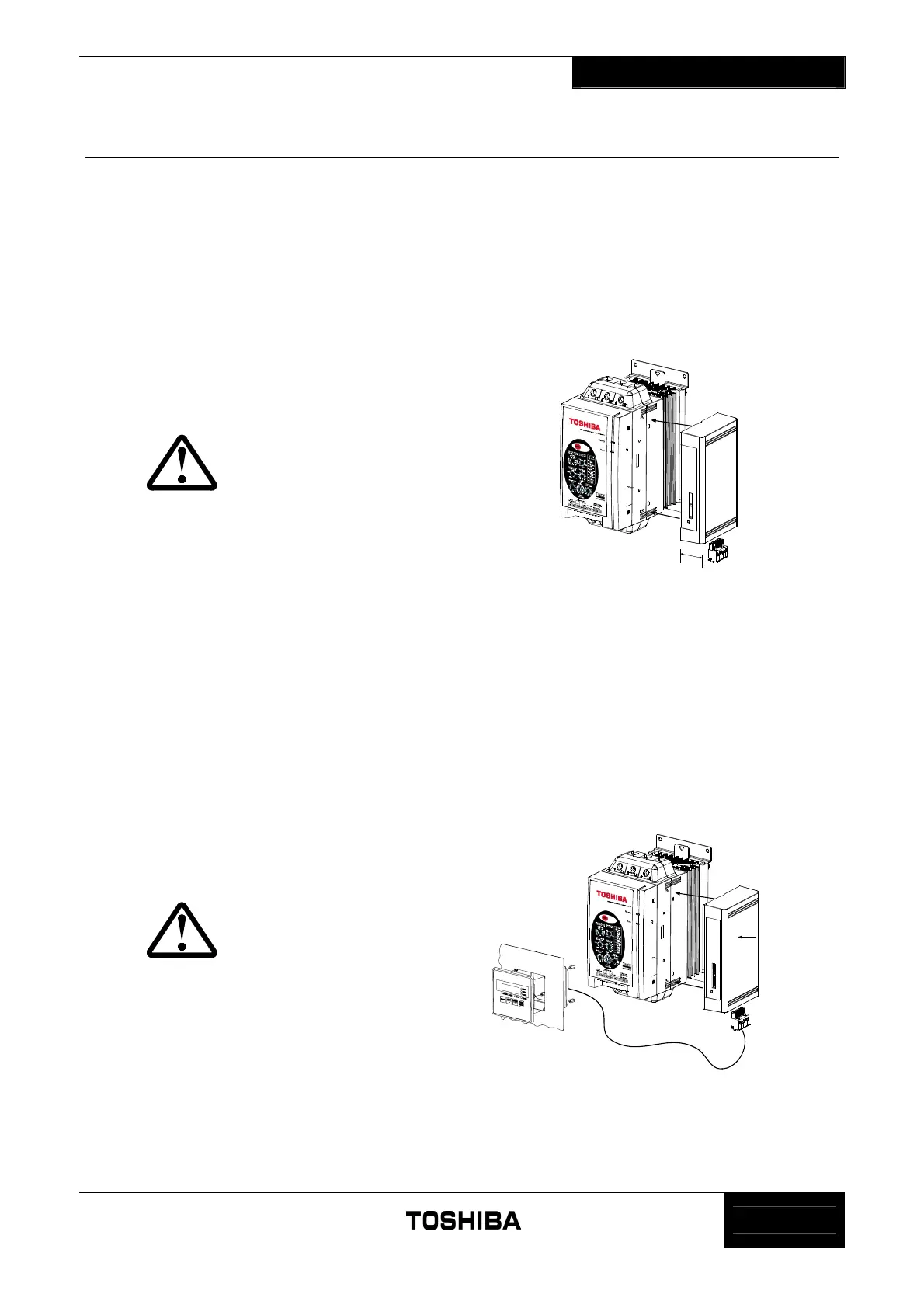

Accessories
5.1 Overview
The TMC7 Series includes a range of optional accessories including:
• TMC7 Series Remote Operator
• MODBUS RTU Module
• Profibus Module
• DeviceNet Module
• AS-i Module
• PC Set-up Software
The accessory items interface with the TMC7 soft starters
by way of plug-in module.
Control power and mains supply must be
removed from the TMC7 soft starters
before attachment or removal of
accessory items. Failure to do so may
result in equipment damage.
35 mm
(1.38 inches)
5.2 Remote Operator Part Number: TMC7-ROM-01
The TMC7 Remote Operator can control and monitor TMC7 soft starter performance. Functionality includes:
• Push Button Control (Start, Stop, Quick Stop & Reset)
• TMC7 Status LEDs (Start, Run & Trip)
• Communication Status LED
• Motor Data Display (motor current & temperature)
• TMC7 Trip Code Display
• 4-20 mA Output (motor current)
Installation
1. Connect the TMC7 Remote Operator Interface to the
TMC7 soft starter.
Control power and mains supply must be
removed from the TMC7 soft starters
before attachment or removal of
accessory items. Failure to do so may
result in equipment damage.
2. Cut a 92mm
2
hole in the panel and fit the TMC7 Remote
Operator.
Remote Operator
Interface
