2. System component
19

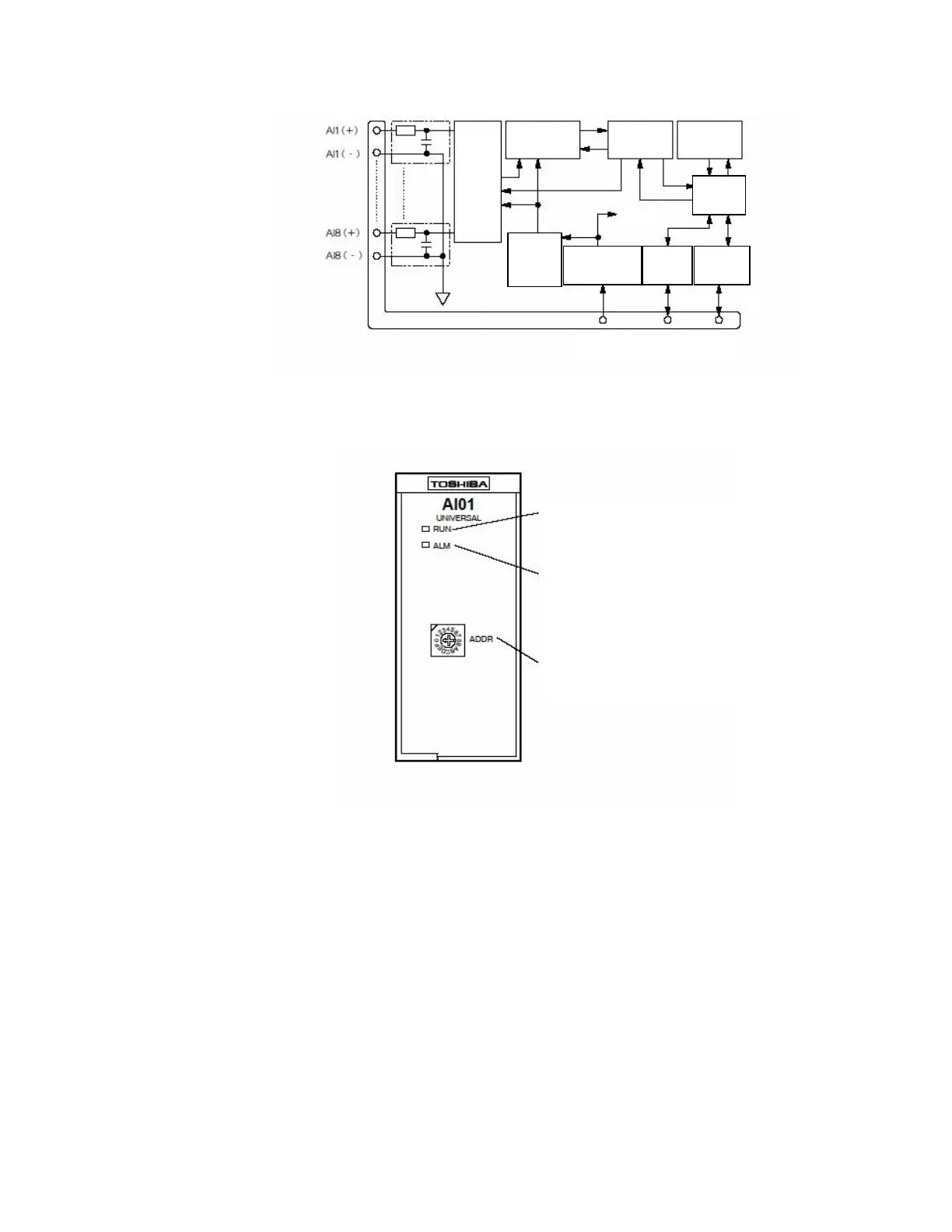

Fig. 2.14 SAI012 module internal circuit
Fig. 2.15 SAI012 front part
RUN indicator: Illuminates when normal
Alarm indicator: Blinks upon an error
Module address setting switch:
Set the module number 1 to E (1 to 14).
Bus A Bus B
RS-485
transceiver
Module connector
8CH
analog
multi-
plexer
circuit
V/F converter
circuit
Signal
insulating circuit
State
display/switch
Insulation
DC/DC
converter
Constant voltage
power circuit
RS-485
transceiver
Internal power
supply
System power supply
(DC24V)
Redundancy I/O bus
Internal CPU
circuit
