2. System component
8
Base card
Table 2.3 UIOU51 specification
Item Specification
Model name UIOU51
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VPCX2/VPCPX2B power supply (24V system power supply)
Applicable module None
Number of modules connected None
Mounting slot UIOU12 (Fixed at Slot 10) (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm
Weight 300g or less (single unit)

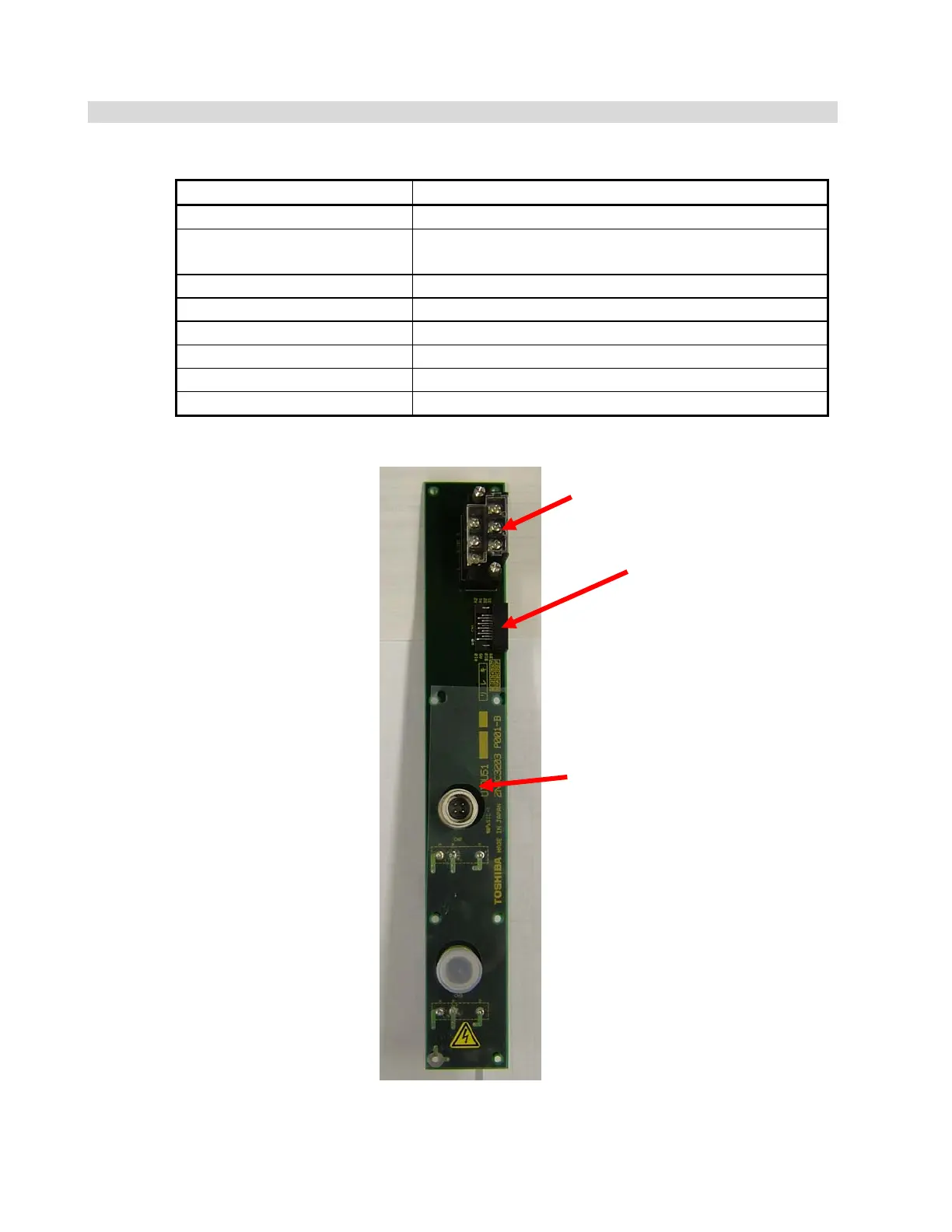

Fig. 2.3 UIOU51 base card overview
Serial bus terminal block
Power connector
Base card connecting connector
