2. System component
9
Table 2.4 UIOU52 specification
Item Specification
Model name UIOU52
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VPCPX2B
Applicable module SBIF1C
Number of modules mounted 2 units (redundant)
Mounting slot UIOU12 (Fixed at Slot 9) (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm
Weight 300g or less (single unit)

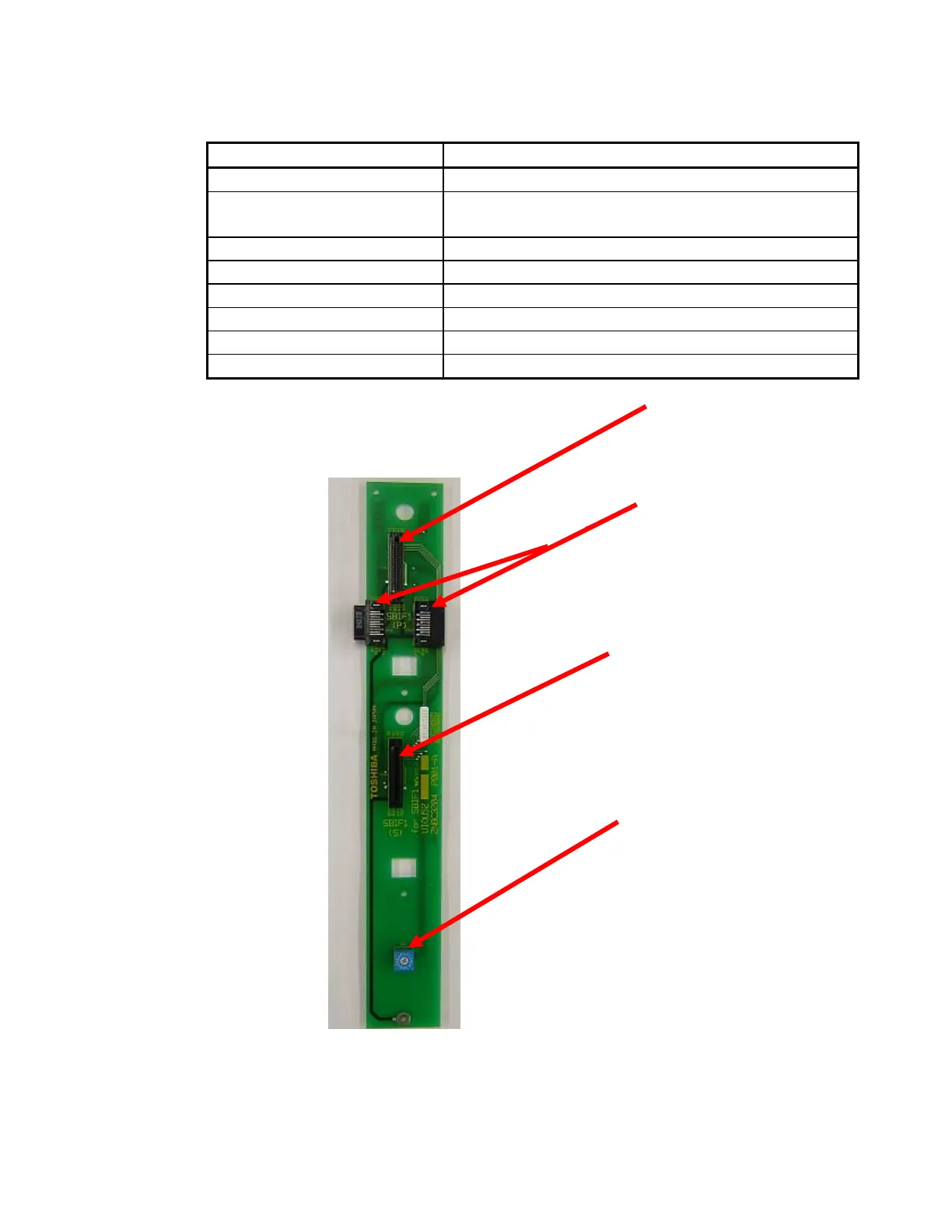

Fig. 2.4 UIOU52 base card external view
Table 2.5 UIOU54 specification
SBIF1C primary module mounting connector
Base card connecting
connector
SBIF1C secondary module
mounting connector
Unit address setting switch
(effective setting range: '0' to 'F')
