2. System component
10
Item Specification
Model name UIOU54
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VPINX11, VPINX12
Applicable module SPI01
Number of modules mounted 2 units
Mounting slot UIOU12 Slots 1 to 8 (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm (single unit, excluding protrusions)
Weight 300g or less (single unit)

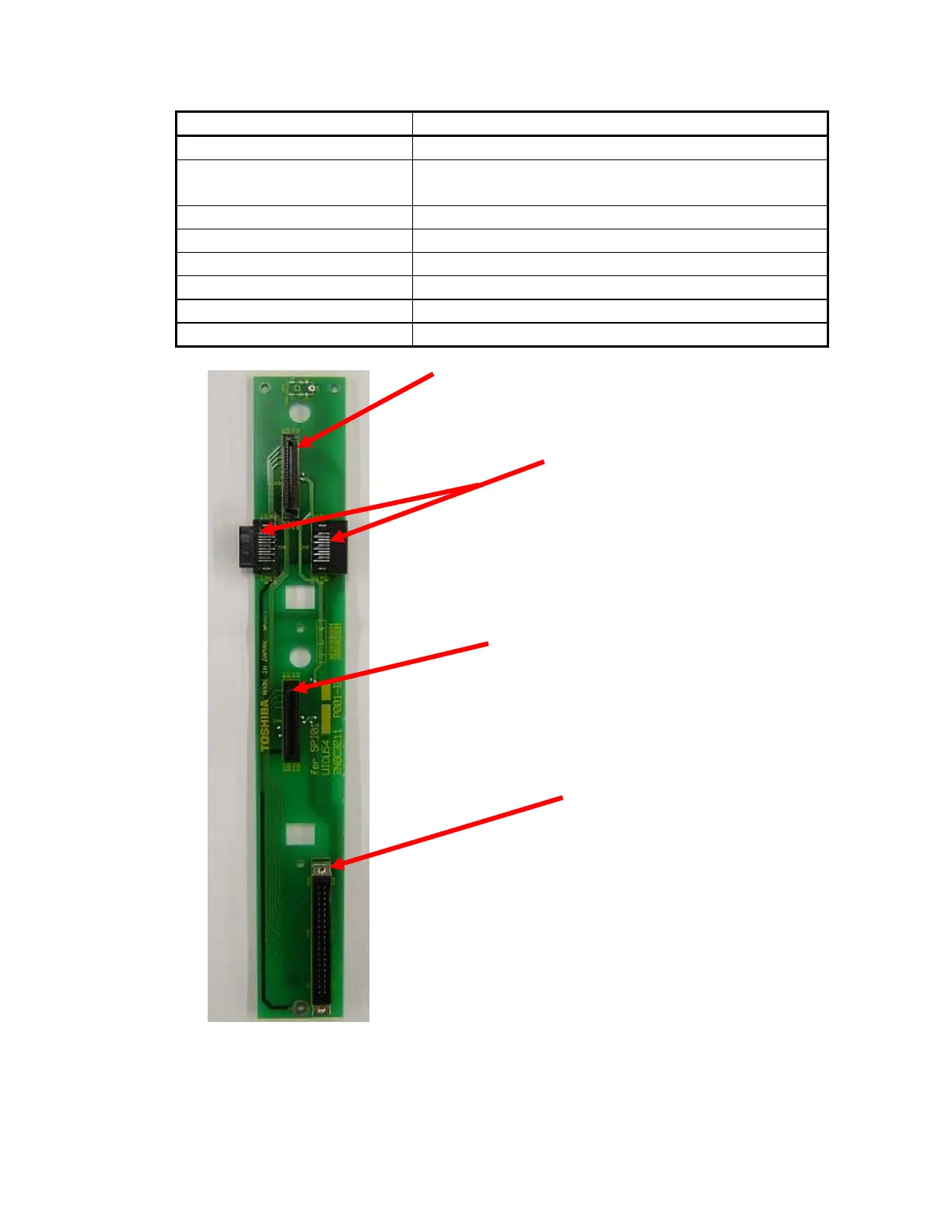

Fig. 2.5 UIOU54 base card external view
SPIO1 module mounting connector (for pulse input CH1 to 4)
Base card connecting connector
SPIO1 module mounting connector
(For pulse input CH5 to 8)
Cable connector for
VTBUX31 connection
