2. System component
11
Table 2.6 UIOU55 specification
Item Specification
Model name UIOU55
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VDINX1, VDOPX1
Applicable module SDI01 or SDO01 module
Number of modules mounted 1 unit
Mounting slot UIOU12 Slots 1 to 8 (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm (single unit, excluding protrusions)
Weight 300g or less (single unit)

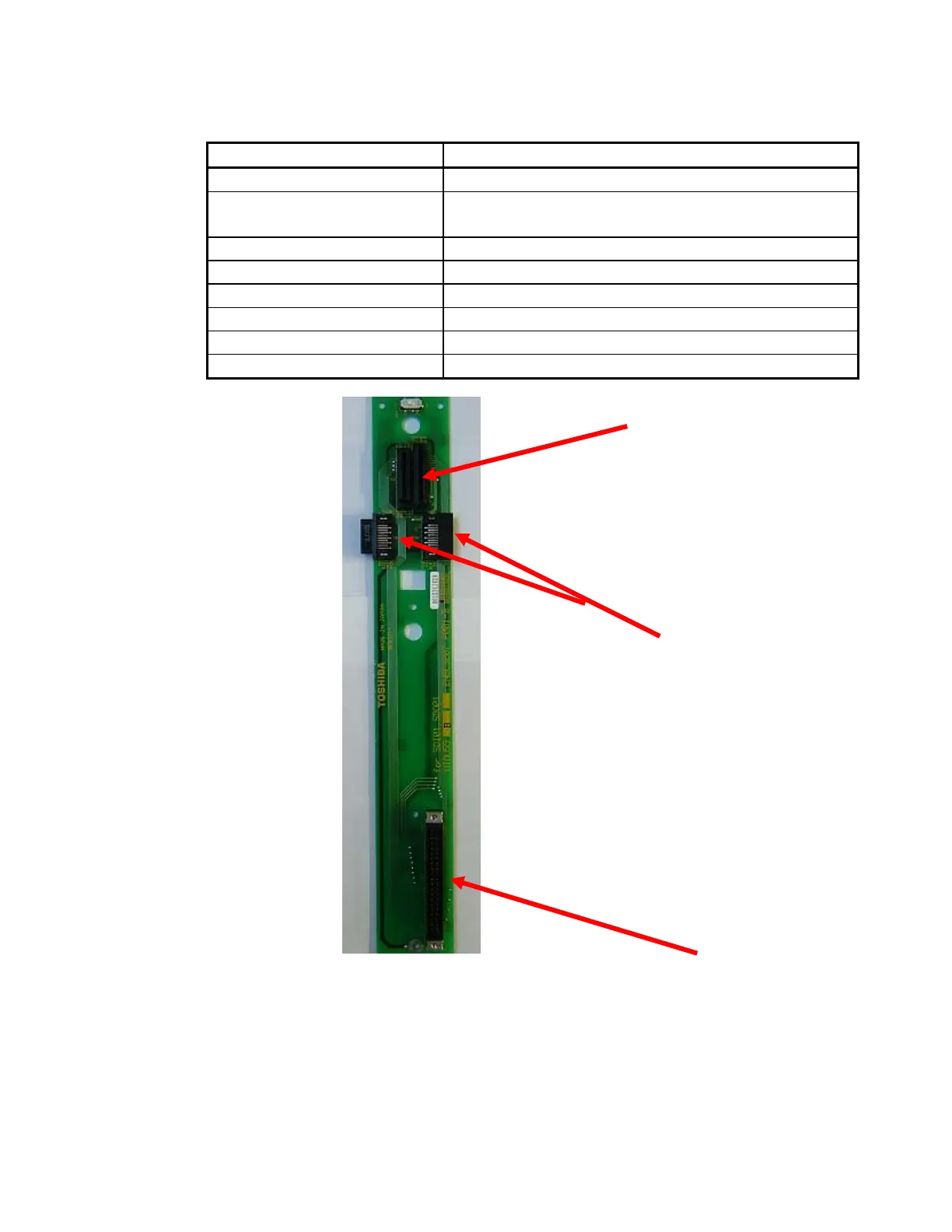

Fig. 2.6 UIOU55 base card external view
Module mounting connector
Base card connecting
connector
Cable connector for
VTBUX34
