2. System component
12
Table 2.7 UIOU56 specification
Item Specification
Model name UIOU56
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VDIOX1
Applicable module SDI01,SDO01
Number of modules mounted One each of SDI01 and SDO01 module
Mounting slot UIOU12 (Slots 1 to 8) (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm (single unit, excluding protrusions)
Weight 300g or less (single unit)

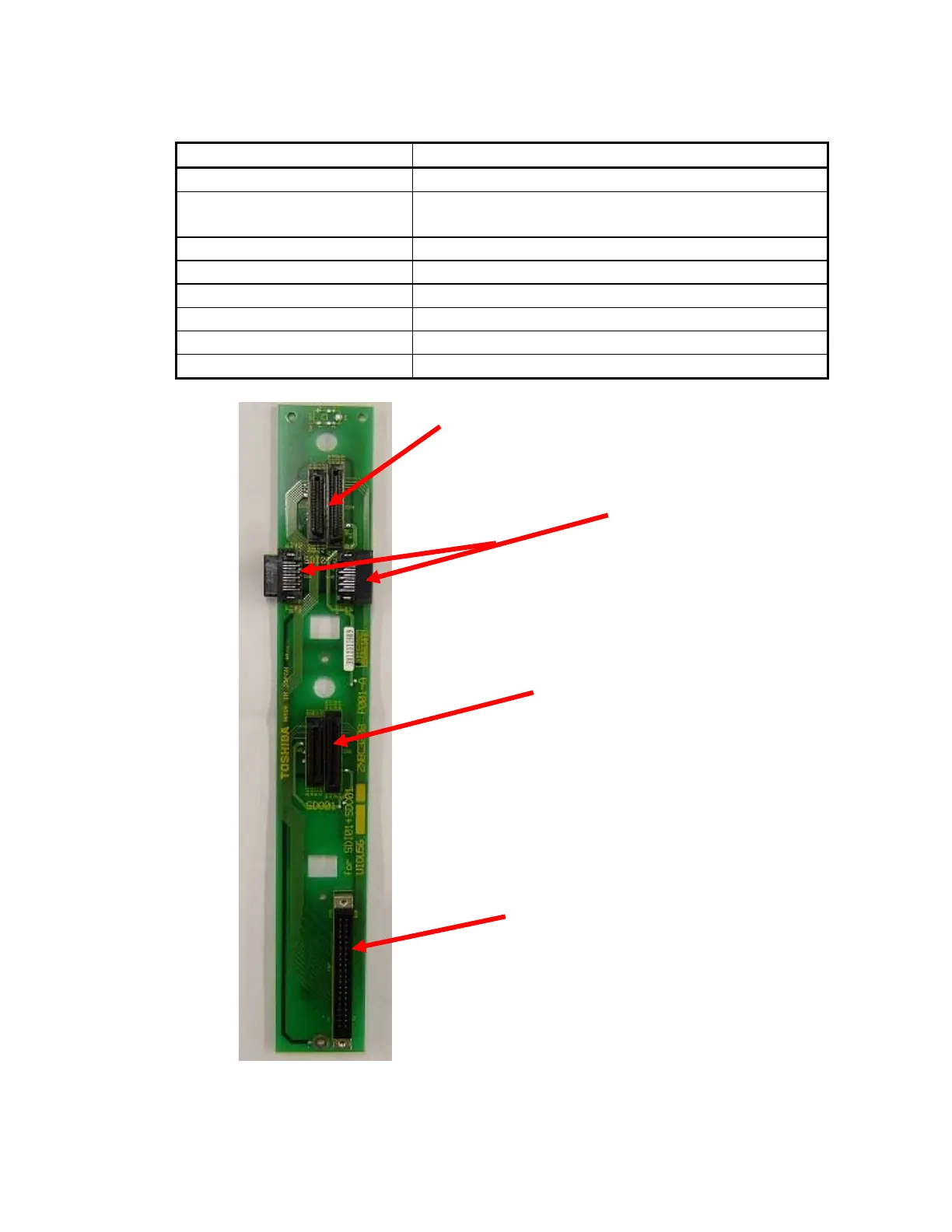

Fig. 2.7 UIOU56 base card external view
SDI01 module mounting connector
Base card connecting connector
Cable connector for
VTBUX34 connection
SDO01 module mounting connector
To Next Page
