2. System component
13
Table 2.8 UIOU57 specification
Item Specification
Model name UIOU57
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VAIMX1, VAOPX1, VAMPX12
Applicable module SAI012, SAO012, STC012
Number of modules mounted 2 units of the same module (1 unit for SAO01)
Mounting slot UIOU12 Slots 1 to 8 (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm (single unit, excluding protrusions)
Weight 300g or less (single unit)

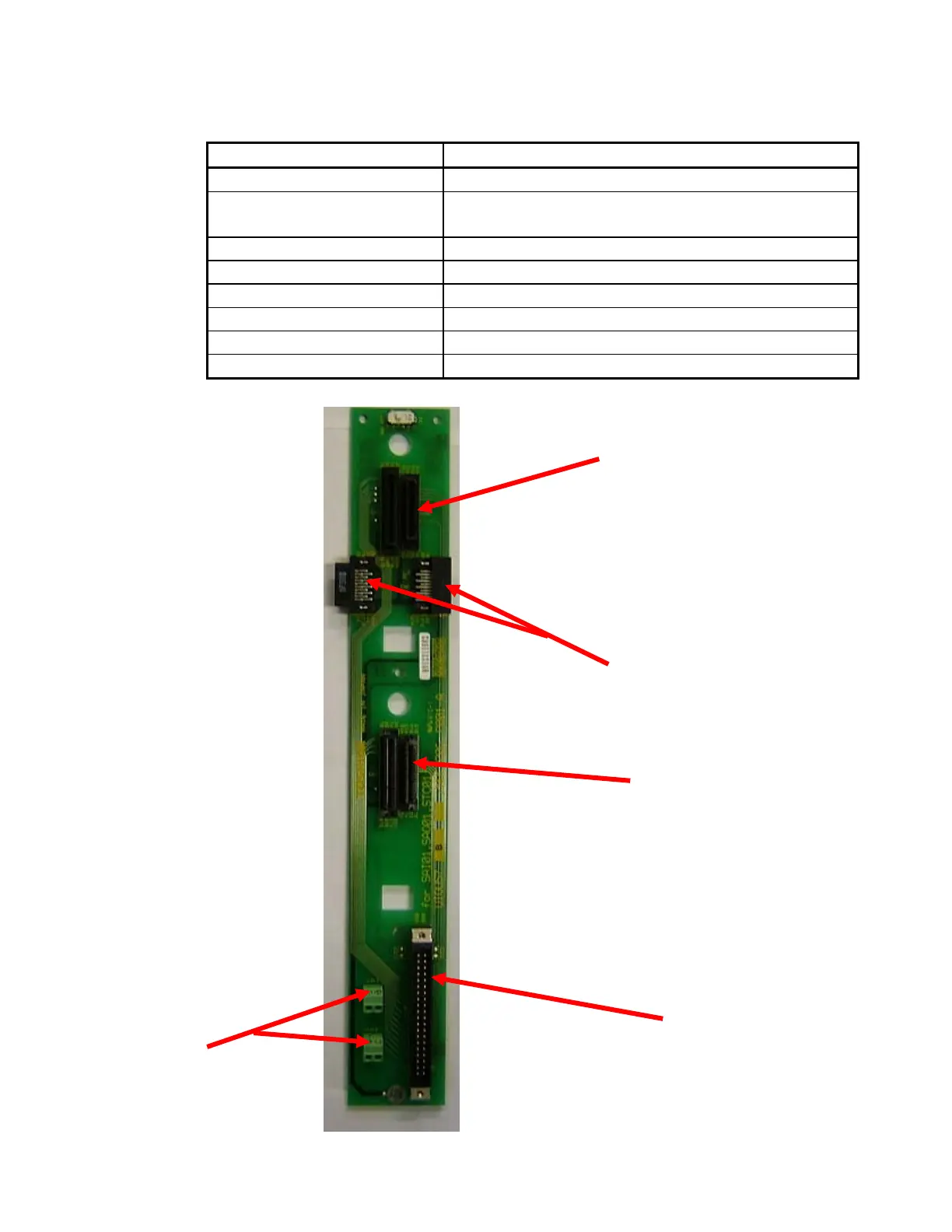

Fig. 2.8 UIOU57 base card external view
Module mounting connector
Base card connecting
connector
Cable connector for
VTBUX32 connection
Module mounting connector
Cold junction compensation
thermistor connecting
connector for STC012
