2. System component
14
Table 2.9 UIOU58 specification
Item Specification
Model name UIOU58
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VAMPX11
Applicable module SAI022
Number of modules mounted 4 units
Mounting slot UIOU12 (Slots 1 to 8) (2-slot width)
Outside dimension
80W
×
285H
×
2Dmm (single unit, excluding protrusions)
Weight 300g or less (single unit)

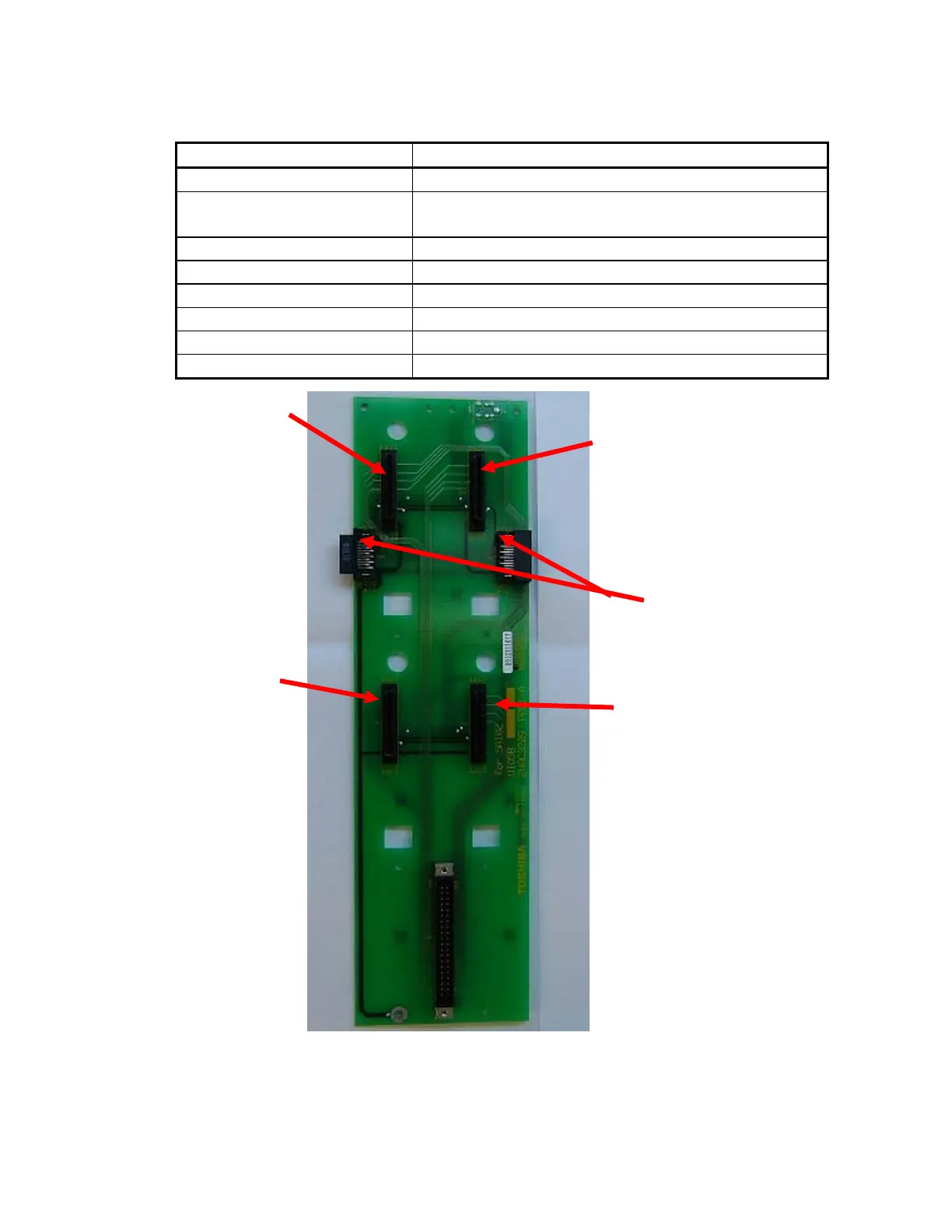

Fig. 2.9 UIOU58 base card external view
Base card connecting
connector
Module mounting connector
VAMPX11 Ch1~4
Module mounting connector
VAMPX11 Ch5~8
Module mounting connector
VAMPX11 Ch12~16
Module mounting connector
VAMPX11 Ch9~12
To Next Page
