2. System component
15
Table 2.10 UIOU59 specification
Item Specification
Model name UIOU59
Mounting type
Fixed with M3
×
6 screws at 3 locations and with M3
×
8 screws at
2 locations
DPCS target card VRTDX1
Applicable module SRT012 module
Number of modules mounted 2 units
Mounting slot UIOU12 (Slots 1 to 8) (1-slot width)
Outside dimension
40W
×
285H
×
2Dmm (single unit, excluding protrusions)
Weight 300g or less (single unit)

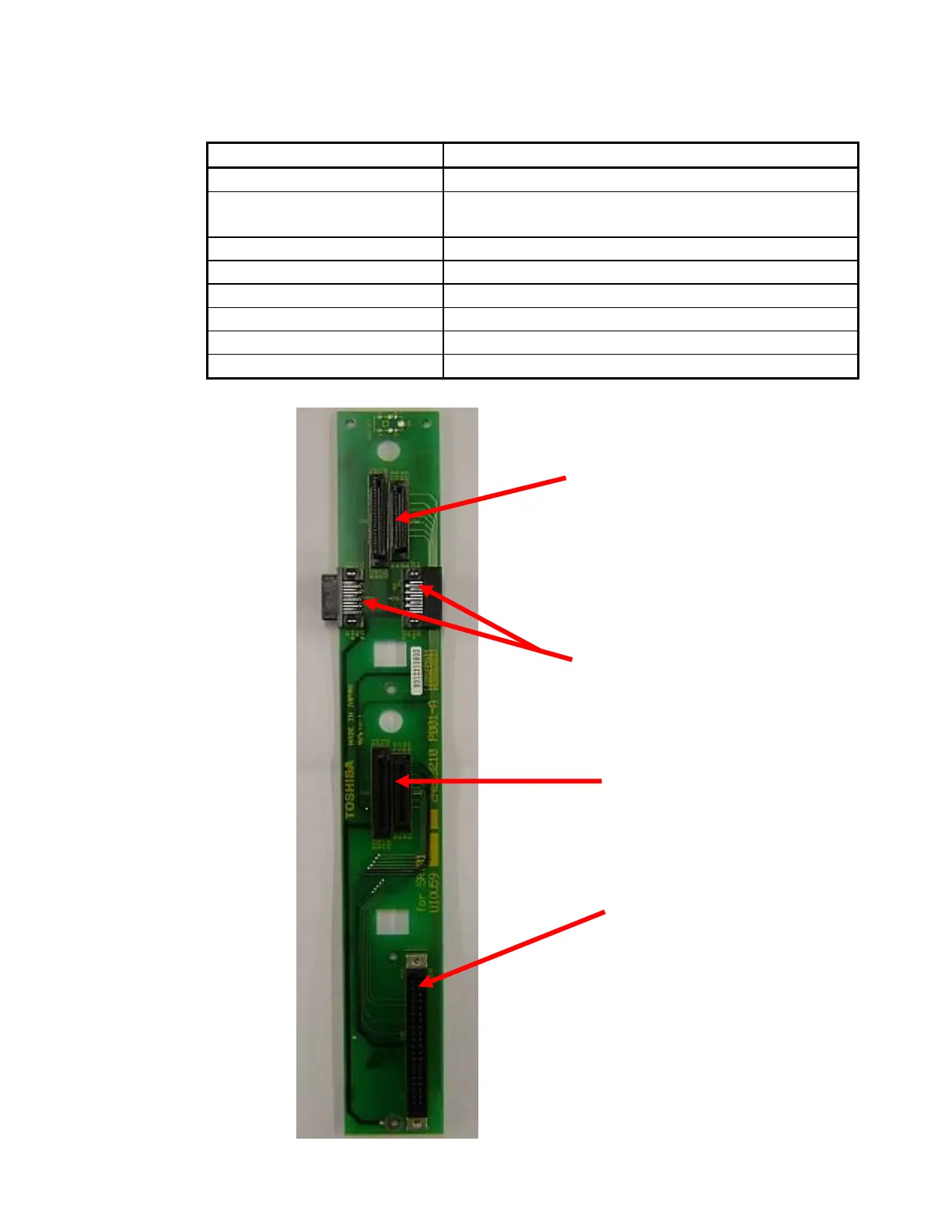

Fig. 2.10 UIOU59 base card external view
Module mounting connector
Base card connecting
connector
Cable connector for
VTBUX32
Module mounting connector
(CH5 to 8)
