Total Gym Ultimate - Total Gym Ultimate Parts List & Exploded View

Allen
Wrenches
Packed in the leg pulley
accessory kit
Stopper
Stopper Assembly Kit

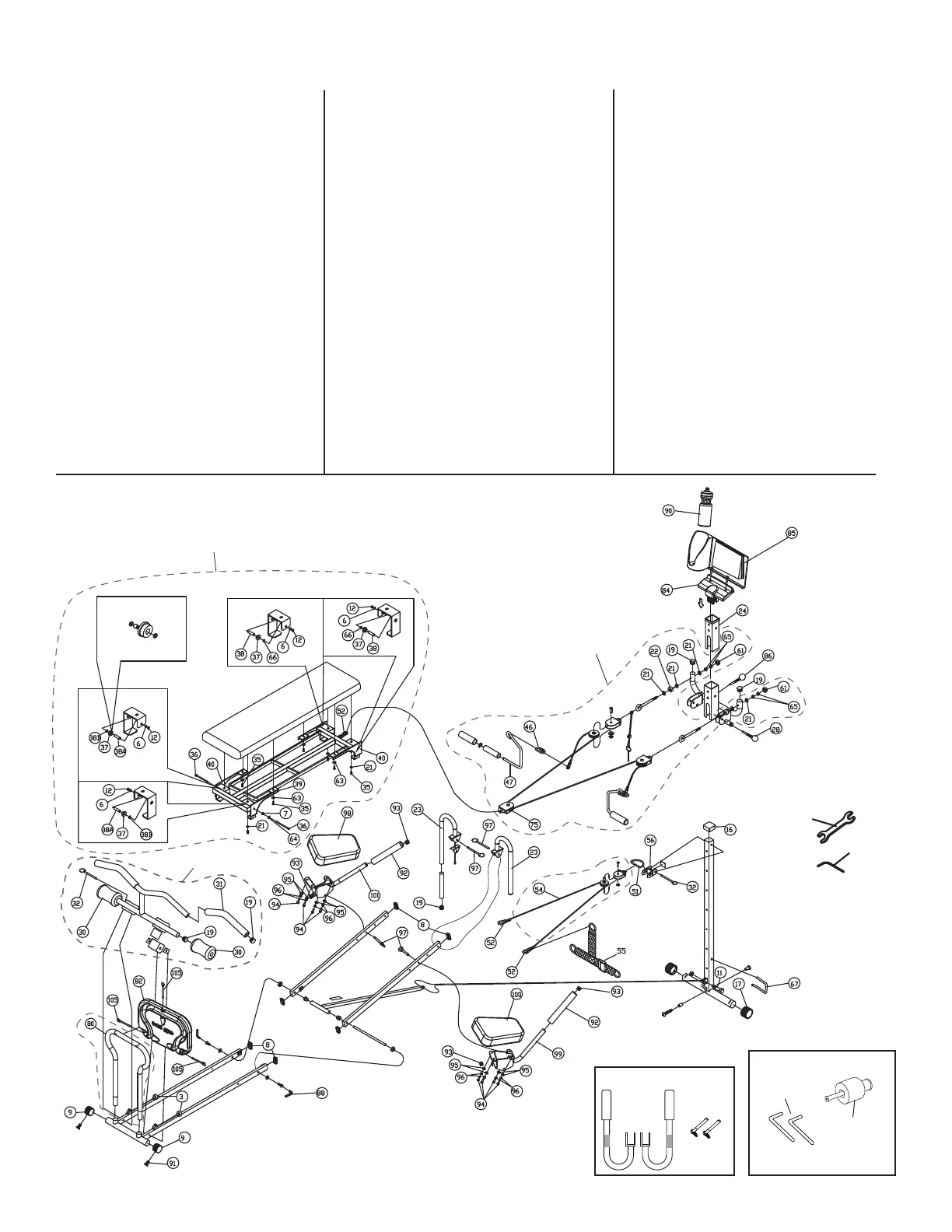

TOTAL GYM® ULTIMATE PARTS LIST & EXPLODED VIEW
3 0100060 Stopper 2
6 0100001 M8 x 19mm x 1.5t Washer 4
7 0100002 M8.5 x 14mm x 1.8t Spring Washer 4
8 0100141 Rectangle Tube Cap 8
9 0100359 Round End Cap 2
12 0100004 M8 Nylon Nut 4
16 0100143 Square Top Cap 1
17 0100357 Tube Roller 2
19 0100145 Round Tube Cap 8
21 0100222 M7 x 14mm x 1.2t Washer 10
22 0100213 Plastic Bushing 2
23 0900013 Dip Bar w/Grip 2
24 0100223 Adjustment Sleeve 1
28 0100346 Spring Loaded Pin 1
29 0400133 Wing Assembly 1
30 0700030 Foam Pad 2
31 0700031 Grip 2
32 0100075 M8 x 80mm Hitch Pin 2
34 300015 Glideboard Assembly 1
35 100373 M6 x 13mm Hex Bolt 8
36 0100058 M8 x 92mm Allen Bolt 4
37 0100052 Wheel 4
38 0100238 Top Spacer Tube 2
38A 0100239 Bottom Spacer Tube 2
38B 0100240 Small Spacer Tube 2
39 0700032 Left Fender 2
40 0700033 Right Fender 2
43 0600031 Cable Kit 1
46 0100229 Handle Link 2
47 0400080 Handle Assembly 2
48 0100343 10mm & 13mm Hex Wrench 1
51 0100230 D - Ring 1
52 0100231 Clip 3
54 0700034 Rope Assembly 1
55 0700035 Harness 1
56 0100232 Bracket 1
61 0100327 M6 Nut Cap 2
63 0100336 M7 x 19mm x 1.2t Washer 4
64 0100035 M8.5 x 25mm x 2t Washer 4
65 0100008 M6 Nylon Nut 4
66 100394 M8 x 12mm x 2t Washer 2
67 0100235 C-Pin 1
80 900043 Pilates Bar w/Grip 1
82 900042 Squat Stand w/Hitch Pins 1
84 0900021 Flip Chart Stand 1
85 900045 Flip Chart Holder w/Flip Chart 1
86 0100347 Adjustment Pin 1
88 0100122 5mm Allen Wrench 2
90 0900023 Water Bottle 1
91 0100062 M4 x 12mm Phillips Screw 2
92 0700046 Foam Grip 2
93 0100339 Round Tube Cap 4
94 0100340 M6 x 20mm Hex Bolt 8
95 0100025 M8.5 x 16mm x 1.5t Washer 8
96 0100341 M6 x 11mm x 1.5t Spring Washer 8
97 0100326 M8 x 60mm Hitch Pin 4
98 900026 Right Ab Board 1
99 900040 Left Handle w/Grip & Cap 1
100 900025 Left Ab Board 1
101 900041 Right Handle w/Grip & Cap 1
105 0100345 M8 x 110mm Hitch Pin 3
0100334 Stopper Assembly Kit 1
0700047 Leg Pulley Accessory Kit 1
0900008 Dip Bar Kit 1
800102 Start It Up DVD 1
800107 6 to 8 Minute Workout DVD 1
800119 Literature Pack 1
800120 Owner’s Manual 1
ITEM # PART # DESCRIPTION QTY.
ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY.
Dip Bars
2 Short
Hitch Pins
34
43
29
48
88
