INSTALLATION INSTRUCTIONS
Page 18

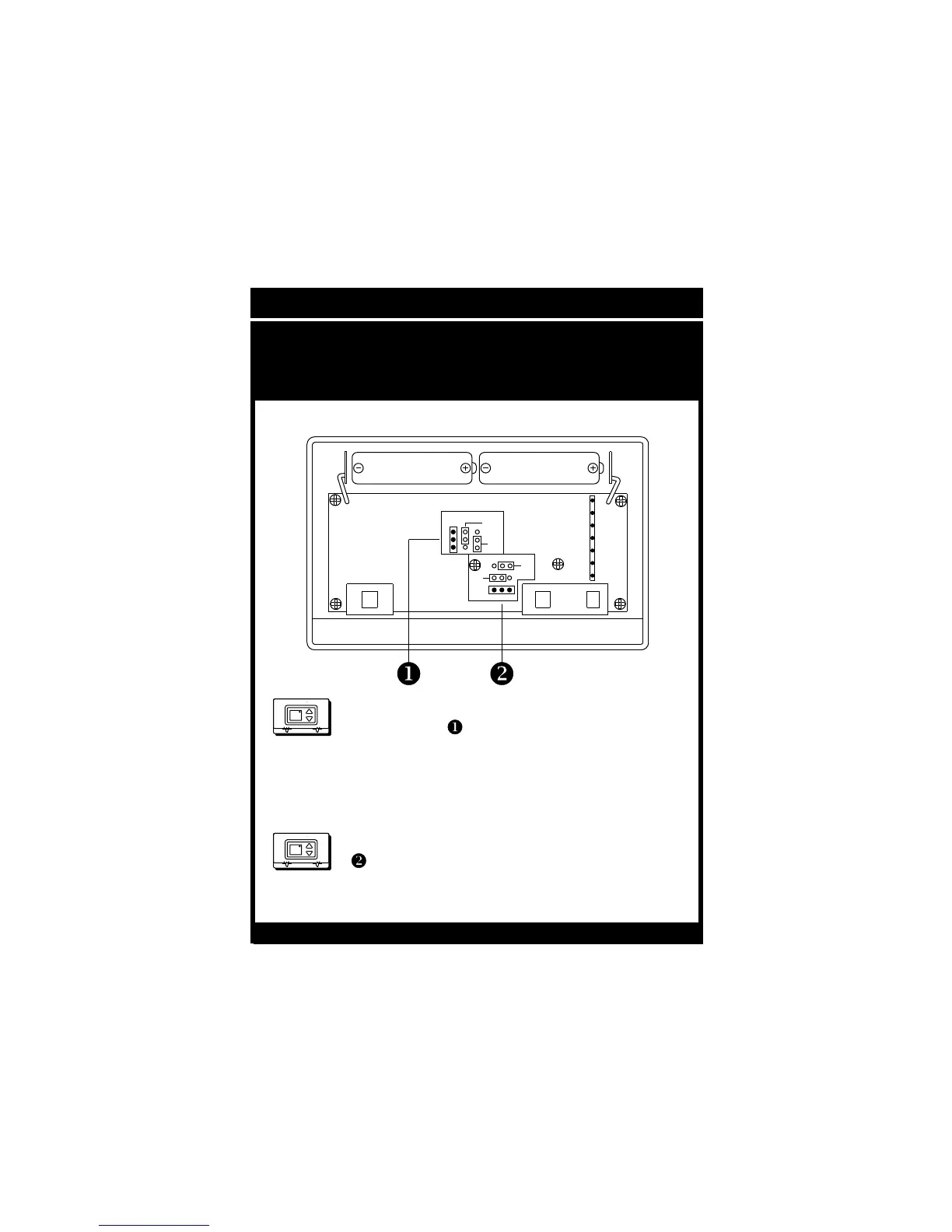

Step #5
Jumper
Configuration
If the HVAC unit has First Stage Electric Heat
then jumper should be set to ON. If the
jumper is set for Fan w/ Heat On, the fan will
energize immediately on a call for heating.
For all other applications this jumper should
remain set to the OFF position.
If the HVAC unit is a Heat Pump, then jumper
should be set to ON. For all other applic-
ations this jumper should remain set to the
OFF position.
72
TOTALINE
Heat
Off
Cool
Fan On
FanA uto
72
TOTALINE
Heat
Off
Cool
Fan On
FanA uto
REPLACE WITH ALKALINE
BATTERIES ONCE EVERY YEAR
USE “AA” SIZE
ALKALINE BATTERIES
FAN W/ HEAT
1
2
3
ON
OFF
12
3
HEAT PUMP
ON
OFF
USE “AA” SIZE
ALKALINE BATTERIES
