Touchstone SRV 2800 Pro - Hooking up Control Box

2800/3900 SRV PRO 360-Degree Swivel TV Lift
www.touchstonehomeproducts.com 800.215.1990
rev. 20201214
12

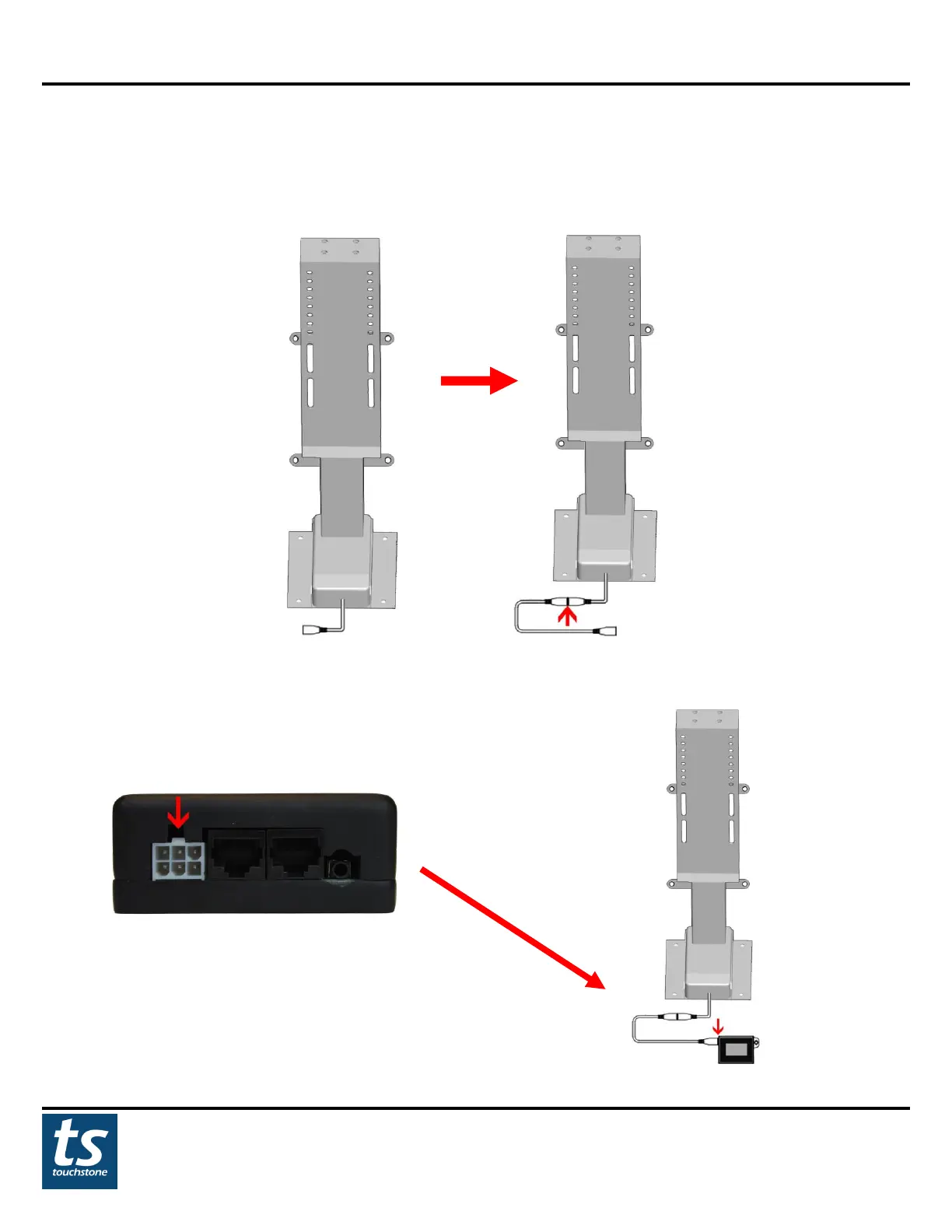

Hooking Up Control Box
Instructions:
1. Attach one end of the Control Box-Lift Transit Cable to the lift cable that is connected to the lift.
2. Attach the other end of the Control Box-Lift Transit Cable to the control box in the port shown below.
Lift Connection Port
