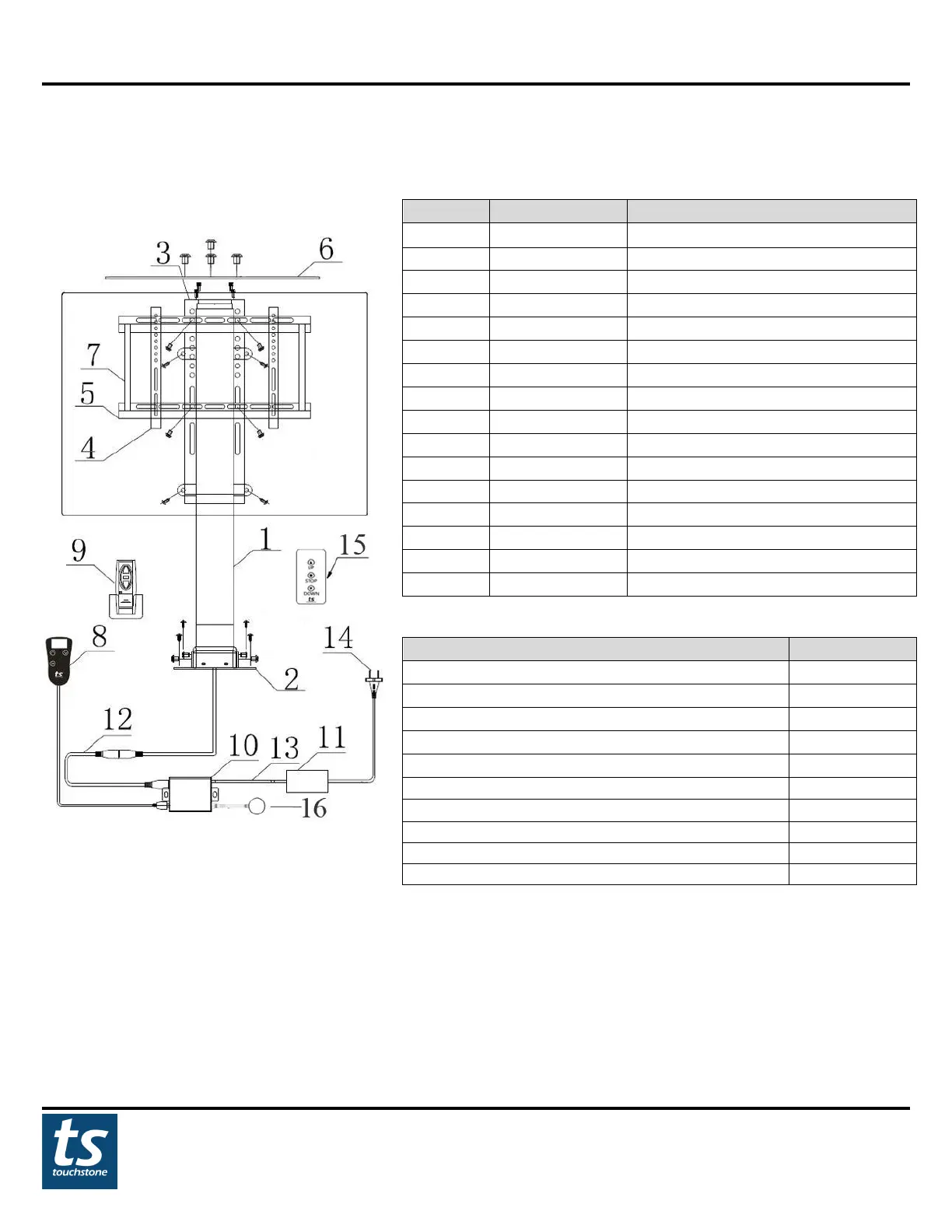

Lift Components & TV Installation Hardware
Components
Lift Parts
Number
Part Number
Part Name
1
32820, 33920
Lift Column
2
32809
Lift Base
3
n/a
2800/3900 360-Degree Mounting Plate
4
32810a
TV Mounting Brackets
5
32810b
Horizontal Flat Panel Brackets
6
n/a
Flat Top Lift Mount
7
32810c
Vertical Flat Panel Bracket Rods
8
32802
Wired Handset Control
9
32803
Wireless RF Remote
10
32820, 33920
Control Box
11
32806
Power Supply
12
n/a
Control Box-Lift Transit Line
13
n/a
Power Supply Transit Line
14
32807
Power Cable
15
32804
IR Remote
16
32805
IR Sensor
Accessory Package
Part
Quantity
M8 Bolts and Nuts – For TV Bracket
4
M6x16 Bolts – Adjustable C Bracket
8
M6x8 Bolts – Flat Top Lid Mount
5
ST6x45 Screws – For Fastening Back of Lift
4
ST5x16 Screws – For Fastening Lift to Floor
4
ST4x10 Screws – For Fastening Cable Clips
4
TV Mounting Screws – Assorted Sizes
4 per size
Washers – Assorted Sizes
4 per size
1” Nylon Spacers
4
Cable Clip for Swivel Sensor Cable
2
.
Hardware
- TV Mounting Screws
-> Please consult your TV manufacturer for the size and length of the mounting screw for your TV. Included is a basic set of
mounting screws that accommodates most LCD/Plasma TVs. Depending on your television, the screws included in the kit may
not fit your television. If that is the case, these screws can be purchased at most hardware/home improvement stores.
Tools
In order to assemble the 2800/3900 360-Degree Swivel TV Lift, you will need the following tools:
- Philips-head screwdriver - size 5 metric hex wrench (included)
- size 4 metric hex wrench (included) - adjustable wrench or size 4 and size 5 metric socket wrench
