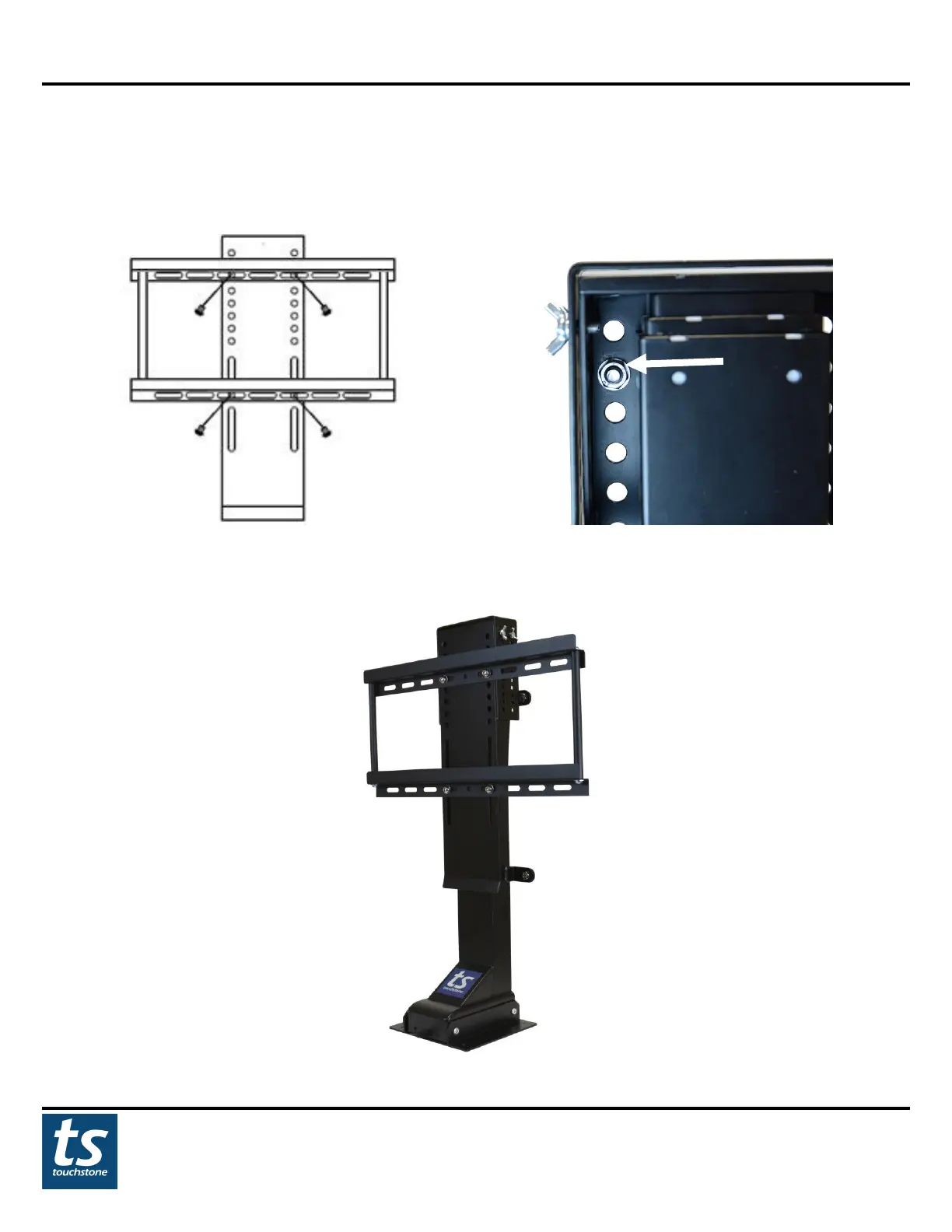

Mounting Flat Panel TV Lift Mount – cont.
Using the 4 M8x20 bolts and nuts, mount the horizontal flat panel TV bracket to the lift (Note: The position of the
horizontal bracket will depend on the height of your TV. The top of the TV should not be higher than the top of the
lift when mounted on the lift). Use 1 washer between the nut and back of the lift mounting plate. Tighten bolts so
bracket is secure to lift.
Mounting Screw Installation Back of Lift
4. Once the TV mounting bracket is installed on the lift, the TV is ready to be installed.
