Toyota Corolla E12-A - Panel Marking and Template Application

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 13
05-04

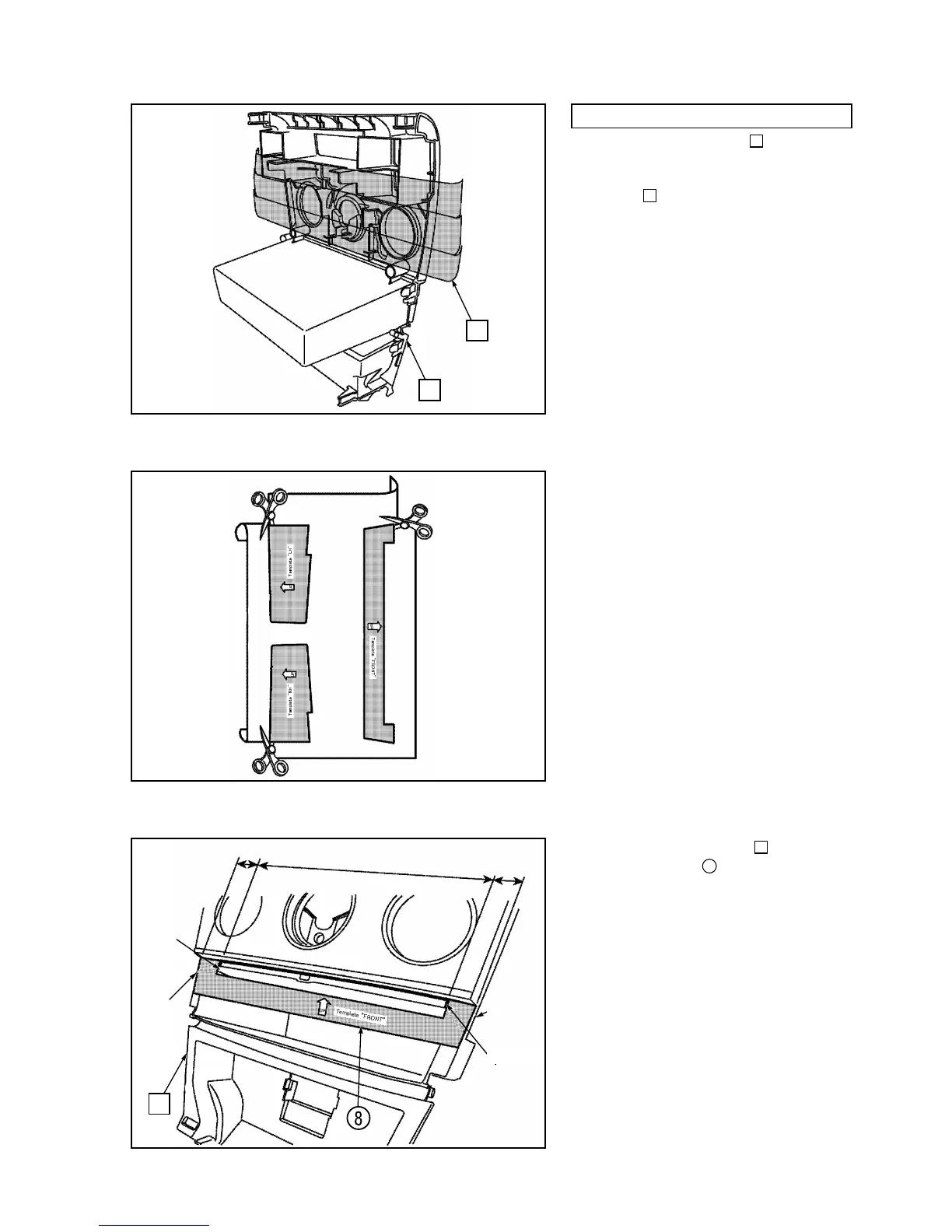

17. Mark the cluster panel by using the
template ‘front’ .
8
3
Fig. 17
IN CASE OF MANUAL AIR CONDITIONER
15. Attach protection tape as shown so
that there will be no scrap adhering to
the reverse side of the lower cluster
panel .
3
11
Fig. 15
16.
a) Copy the template from the manual
(page 34).
b) Cut the templates using scissors.
Fig. 16
11
3
19mm
19mm
185mm
Marking
Marking
3
Edge
fits
Edge fits
