Chapter 1
Get to Know About You Router

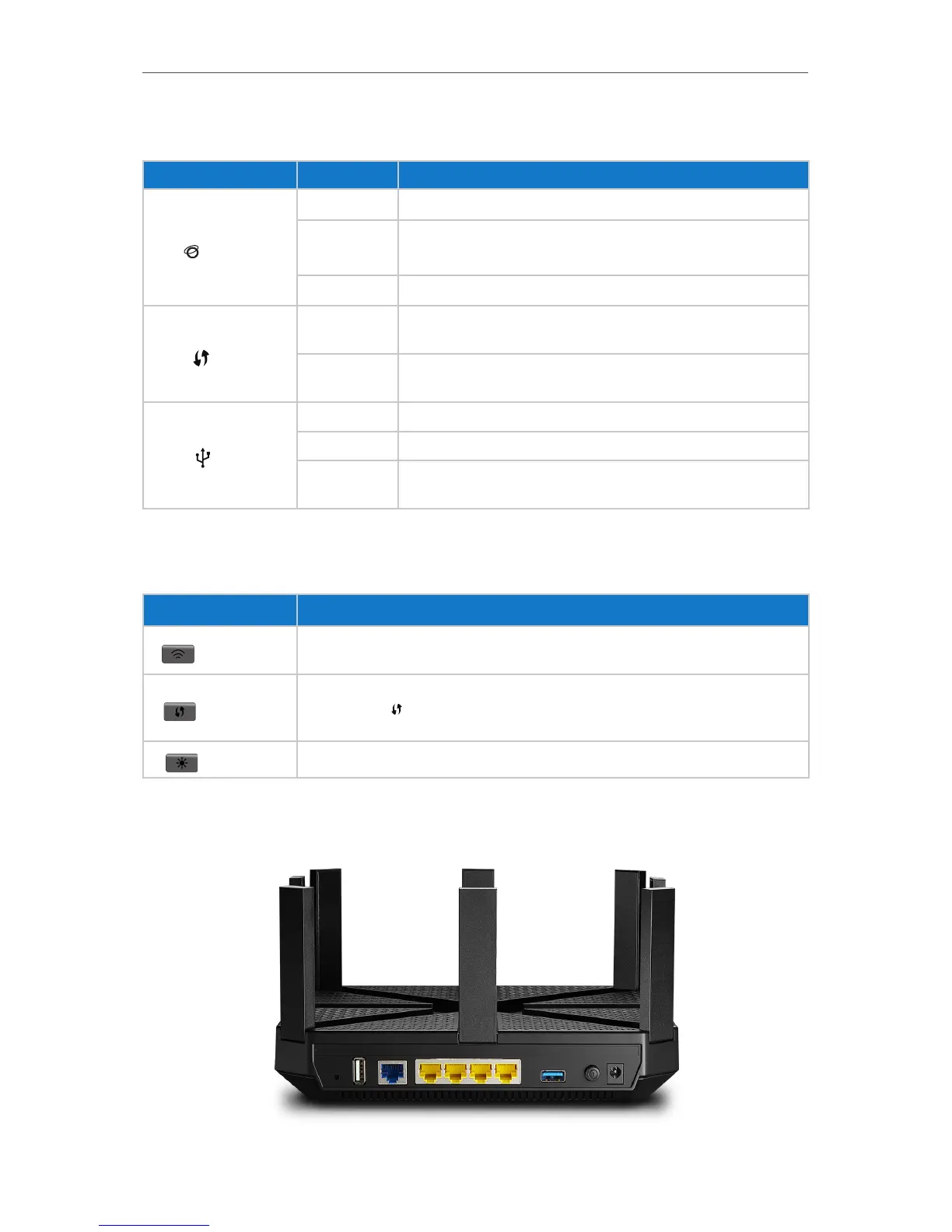

LED Explanation
Name Status Indication
(Internet)
Blue On
Internet is available.
Orange On
The router’s Internet port is connected, but the Internet
is not available.
Off
The router’s Internet port is not connected.
(WPS)
On/Off
Turns On when a WPS synchronization is established and
automatically turns Off about 5 minutes later.
Flashing
A wireless device is trying to connect to the network via WPS. This
process may take up to 2 minutes.
(USB)
On The USB device is identified and ready to use.
Flashing The USB device is being identified.
Off
No USB device is plugged into the USB port or the USB device is not
identified or USB device has been safely ejected.
The following buttons (view from left to right) are also located on the front panel.
Button Description
Buttons Description
(Wi-Fi Button)
Press this Wi-Fi button for about 2 seconds to turn on or off the wireless function of
your router.
(WPS Button)
Press this WPS button, and immediately press the WPS button on your client device.
The WPS LED of the router should change from flashing to solid on, indicating
successful WPS connection.
(LED Button)
Press the LED button for about 1 second to turn on or off the LEDs of your router.
1. 3. 2. The Back Panel
