TP-Link Archer C7 AC1750 User Manual

Archer C7
AC1750 Wireless Dual Band Gigabit Router
4.3 Quick Setup
Please refer to 3.2 Quick Installation Guide.
4.4 Network

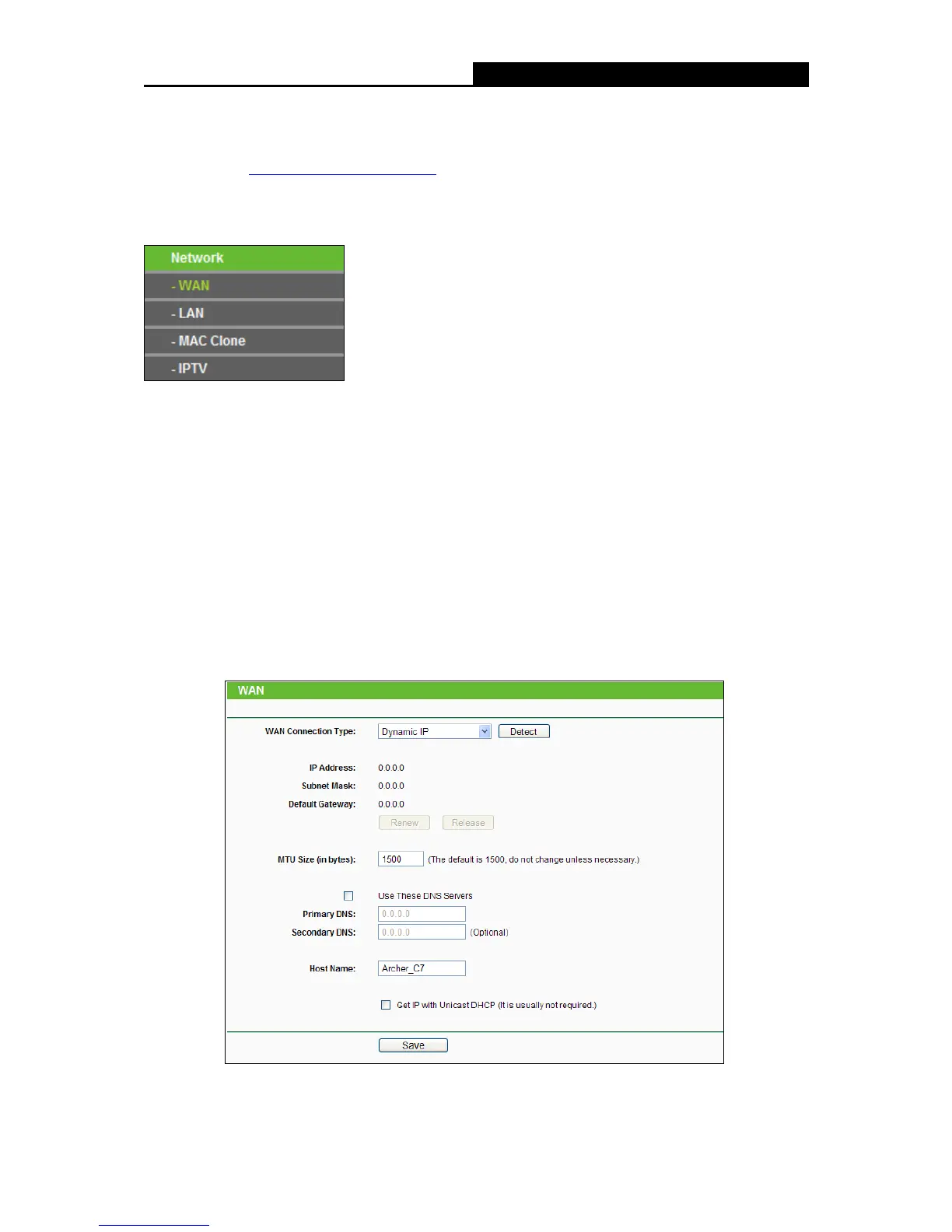

Figure 4-3 the Network menu
There are three submenus under the Network menu (shown in Figure 4-3): WAN, LAN and MAC
Clone, and IPTV. Click any of them, and you will be able to configure the corresponding function.
4.4.1 WAN
Choose menu “Network
→
WAN”, you can configure the IP parameters of the WAN on the
screen below.
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page as follows (Figure
4-4):
Figure 4-4 WAN – Dynamic IP
- 23 -

TP-Link Archer C7 AC1750 Specifications

General

Ethernet Ports	4 x Gigabit LAN, 1 x Gigabit WAN
Memory	128MB RAM, 16MB Flash
Wireless Standard	IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency Band	2.4 GHz, 5 GHz
Wi-Fi Speed	450Mbps at 2.4GHz, 1300Mbps at 5GHz
USB Ports	1 x USB 2.0
Antennas	3 external detachable antennas
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions	9.6 x 6.4 x 1.3 in (243 x 160.6 x 32.5 mm)
Weight	0.93 lbs (0.42 kg)
