4. Click the
Add New... button.
5. Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F
in the MAC Address field.
6. Enter wireless station A/B in the Description field.
7. Select Enabled in the Status drop-down list.
8. Click the Save button.
9. Click the Back button.

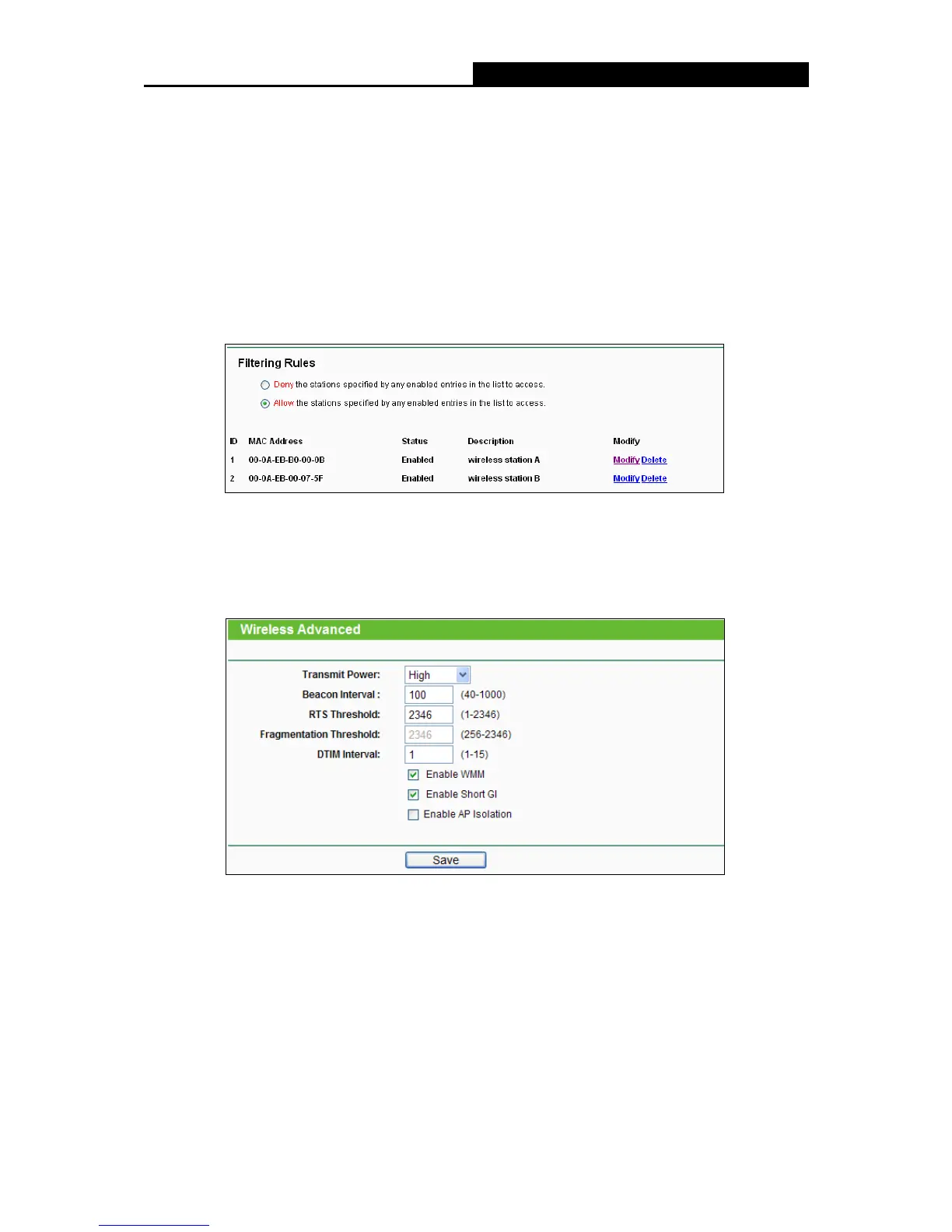

The filtering rules that configured should be similar to the following list:
4.7.5 Wireless Advanced
Choose menu “Wireless
Wireless Advanced”, you can configure the advanced settings of
your wireless network.
Figure 4-43 Wireless Advanced
Transmit Power - Here you can specify the transmit power of router. You can select High,
Middle or Low which you would like. High is the default setting and is recommended.
Beacon Interval - Enter a value between 20-1000 milliseconds for Beacon Interval here.
The beacons are the packets sent by the router to synchronize a wireless network. Beacon
Interval value determines the time interval of the beacons. The default value is 100.
- 56 -
