TP-Link CPE Series User Manual

Quick Start Guide (CPE and WBS) Set Up the Wireless Network
Configuration Guide
26

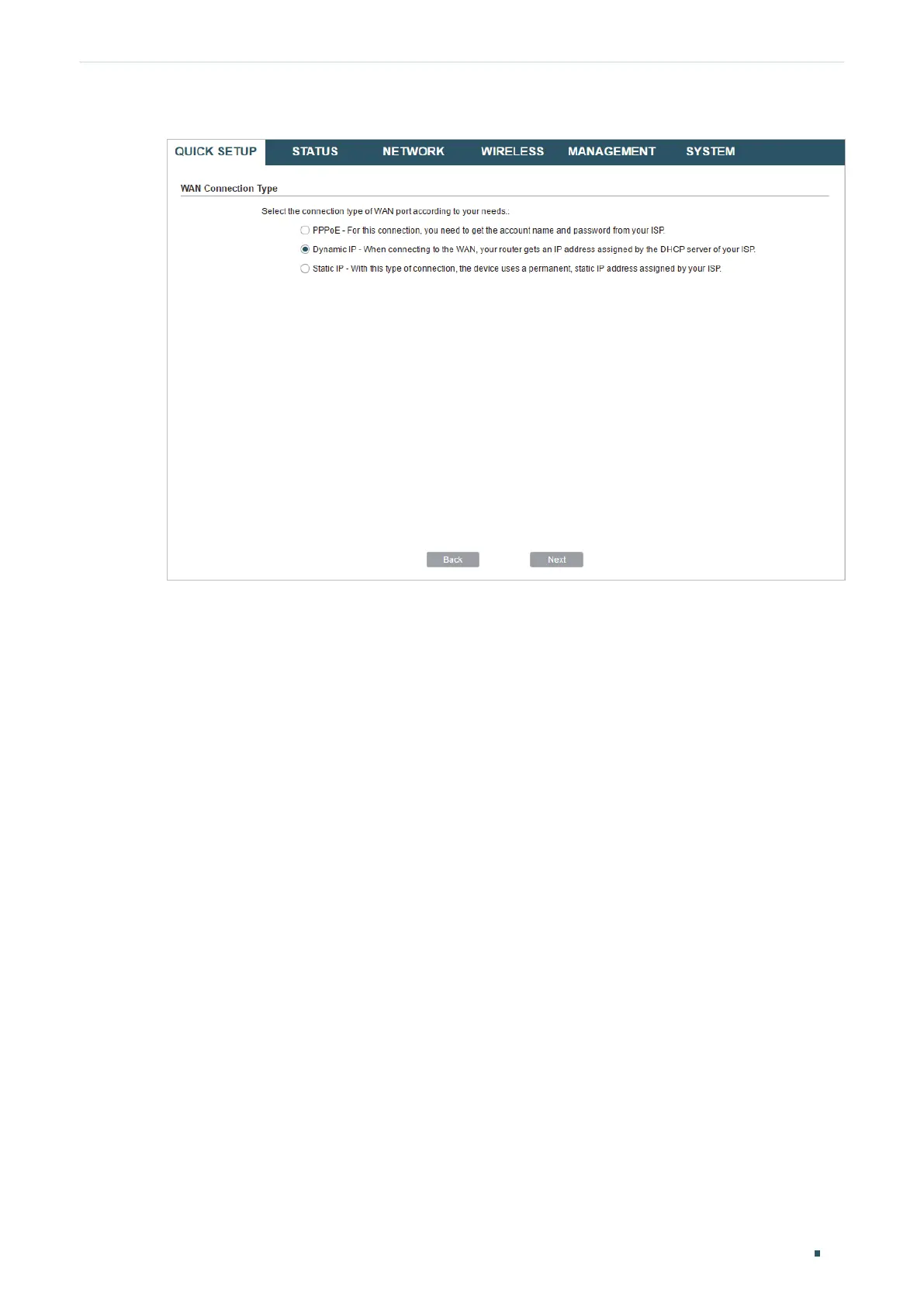

Figure 3-30 Specifying the WAN Connecting Type
The device supports types, PPPoE , Dynamic IP and Static IP for the WAN connection.
You can contact with your ISP to confirm your WAN connection type.
»
PPPoE
Select PPPoE and click Next , then the following page will appear. In the WAN Settings
section, specify the parameters that are provided by your ISP and click
Next .

TP-Link CPE Series Specifications

General

Model	CPE Series
Wireless Standards	IEEE 802.11a/n
Frequency	5 GHz
Antenna	Directional
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Operating Modes	Access Point, Client, Repeater, Bridge
Power Supply	Passive PoE (Power over Ethernet)
Operating Temperature	-30°C to 70°C
Storage Temperature	-40°C~70°C (-40℉~158℉)
Humidity	10%~90% non-condensing
Enclosure	Weatherproof design
Chipset	Atheros
RAM	Varies by Model
Flash Memory	Varies by Model
Ethernet Ports	1
