Network Topology

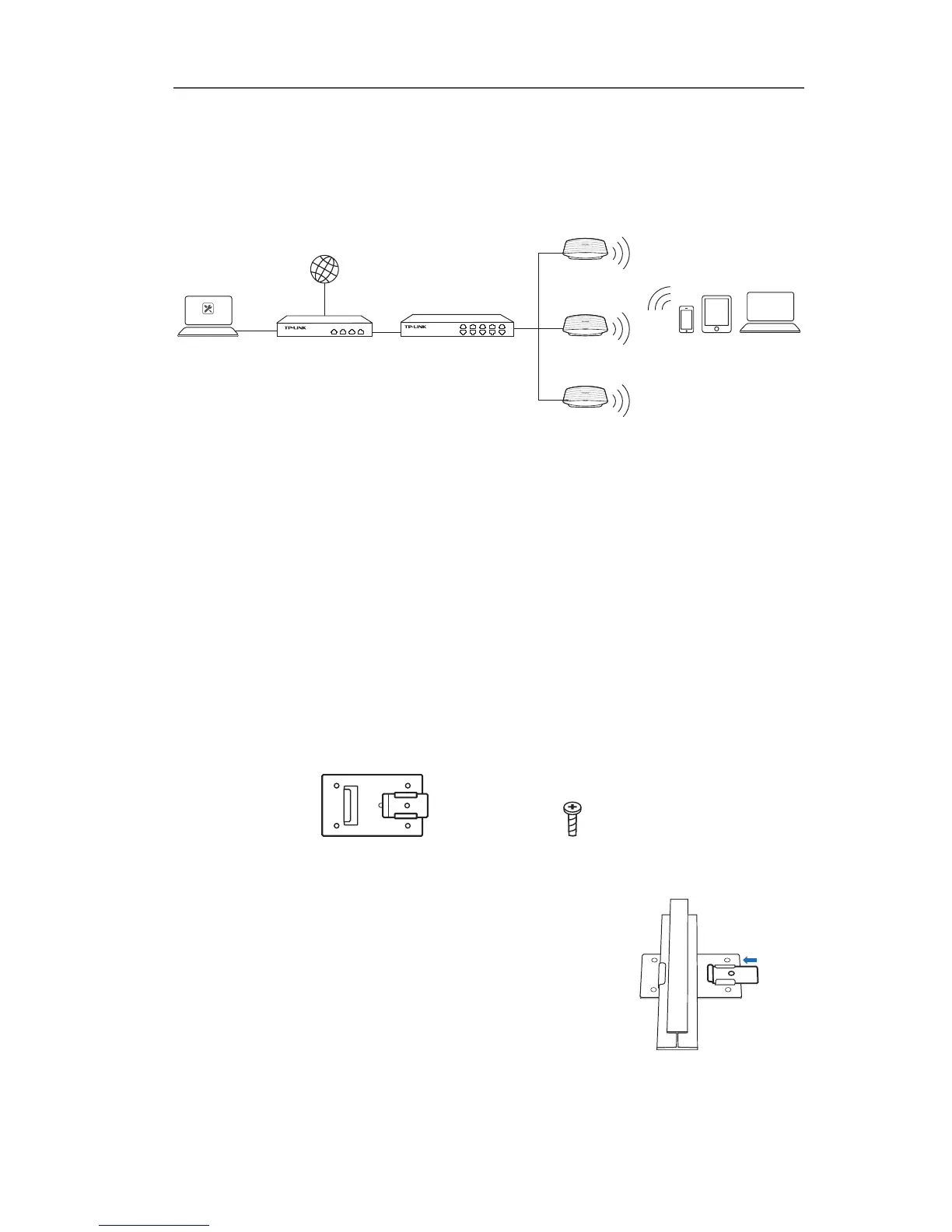

A typical network topology for the EAP is shown below.
A DHCP server (typically a router) is required to assign IP addresses to the EAPs
and clients in your local network. A computer running the EAP Controller software,
which can be in the same or different subnet with the EAPs, is used to centrally
manage the EAPs.
You can get the EAP Controller software from our website http://www.tp-link.com.
Hardware Installation
■
Option1
：
Ceiling Rail Mounting
Follow the steps below to install the EAP with the provided accessories:
1
Position the Ceiling T-rail Clip and push the
movable part toward the rail base.
Controller
Host
Router Switch
Clients
Ceiling T-rail Clip M3×6 Pan-head Screws (Qty.5)
Internet
EAP
EAP
EAP
To Next Page
