5. Cooperation with regulators
Check regulator software version before
connecting a ecoNET300 module with the
regulator.
In the regulator main menu select tab:
MENU → Information → Software version
User can contact with the regulator
manufacture in order to verify whether a
particular type of regulator will be
cooperating with ecoNET300 according to
data concerning regulator software versions.

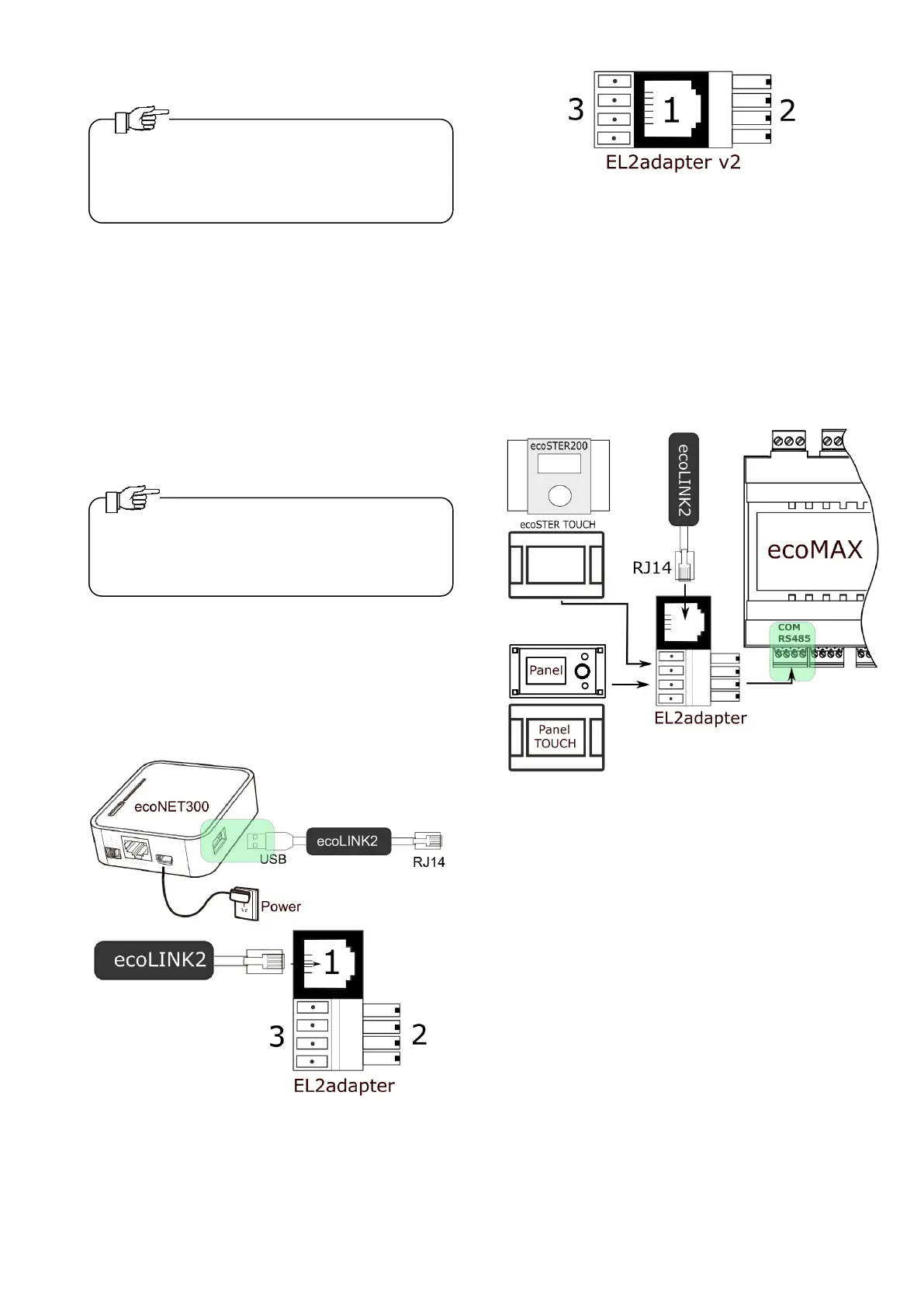

6. Connection to the regulator
The ecoNET300 internet module has to be
connected with regulator with the use of
ecoLINK2 interface. In case of some types of
regulators it is necessary to use an
appropriate adapter.
The ecoLINK2 interface and adapter are a
part of the ecoNET300 set.
Adapter: 1 - socket for RJ11 ecoLINK2 interface, 2
- a plug for regulator module transmission socket,
3 - socket for a control panel plug.
6.1 Connection with ecoMAX800
series
This chapter applies to ecoMAX800 P1, P2,
R2, T2, D1, D2 regulators. It is not applicable
to ecoMAX800R1 and ecoMAX800T1.
In case of ecoMAX800 series, a EL2adapter
or El2adapter v2 must be used in order to
connect ecoLINK2.
6.2 Connection with ecoMAX850
series
The ecoMAX850P1 or ecoMAX850D1
regulator modules are equipped with an
additional COM transmission socket to
connect RJ11 plug of ecoLINK2 interface
without using any adapters. Just unscrew the
regulator housing and put the plug into a
COM socket.
In order to connect the ecoNET300 module
with the regulator, ecoLINK2 interface is
required which is a part of the set.
The internet module will cooperate only with
regulators with installed software supporting
ecoNET300 module.
